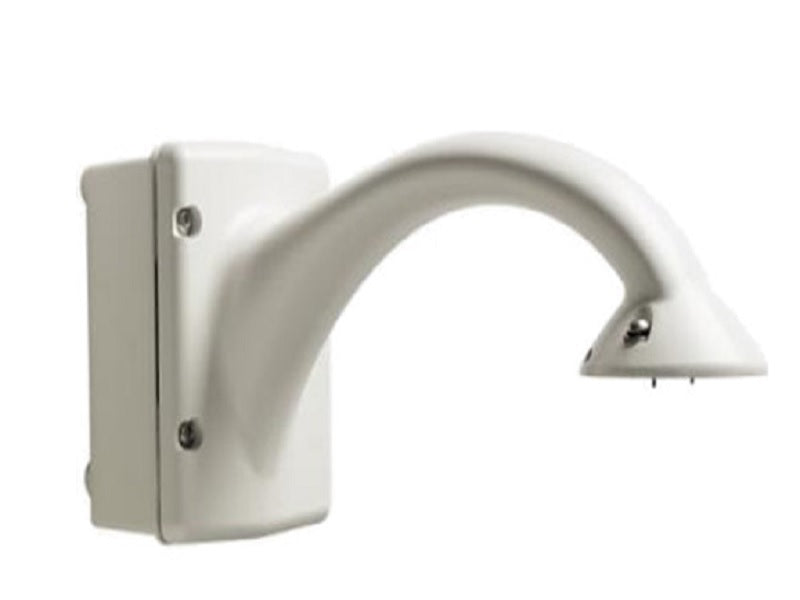

BOSCH Gen 4 Pendant Arm 24V White

be connected to an arm, a roof, or to a pipe mount. power supply box or as a separate arm with connected.

Key features

• Mounting Options and Support Kits
• Bosch offers a series of mounting options and support
• kits to tailor your AUTODOME installation to various
• environments.

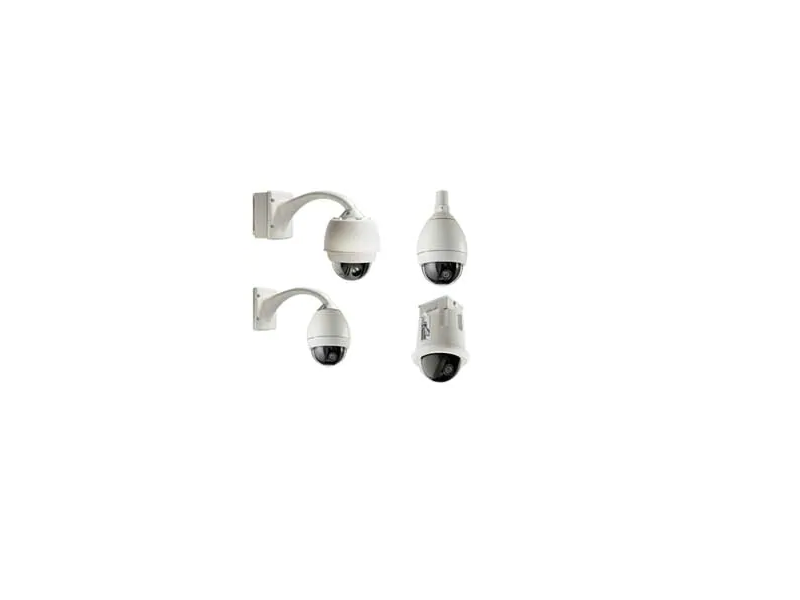

• Pendant Mounts
• The AUTODOME indoor/outdoor pendant housings can

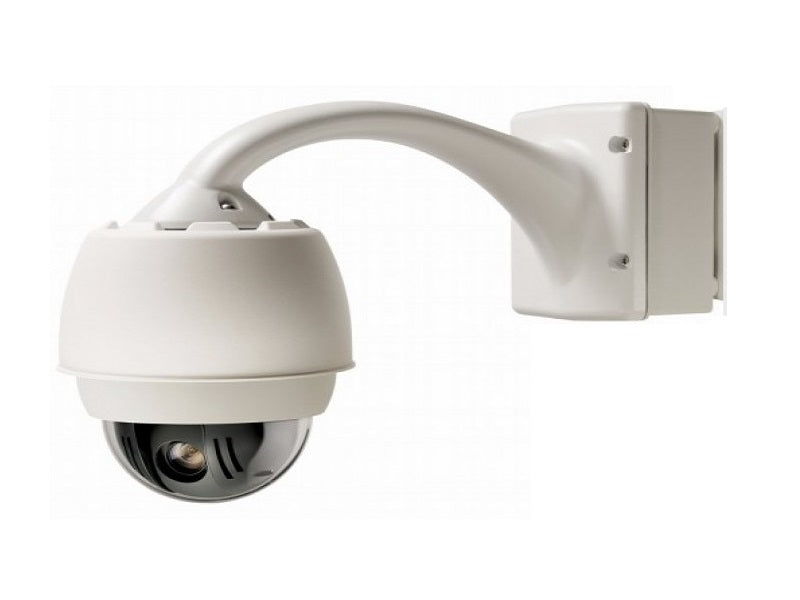

• Pendant arm mounts are available with a connected
• wiring. All pendant arm mounts can be connected to a
• corner or mast (pole) adapter, extending the
• installation options.
• In addition to the arm mounts, Bosch offers a pipe
• mount and a roof parapet mount. The pipe mount
• allows an AUTODOME pendant housing to be attached
• to a 1-1/2 inch (NPS) pipe (user-supplied). The roof
• parapet mount is an aluminum pole that secures an
• AUTODOME pendant to a roof surface. In addition,
• accessories are available to secure the parapet mount
• to a flat roof surface.
• In-ceiling Support Kits
• AUTODOME in-ceiling housings do not require optional
• accessories when mounting to drywall ceilings, but
• support kits are available for specific installation
• needs.
• For suspended or drop ceilings, Bosch offers a kit that
• provides the necessary support to secure the in-ceiling
• housing to a ceiling tile.
• Bosch also offers a kit that offers IP54 ingress
• with no additional purchases necessary.
• Bosch offers a variety of stand-alone power supply
• boxes that are available without a transformer (for
• 24 VAC power input) and with either a 120 VAC or a
• 230 VAC transformer. Each power supply box offers
• 100 W output and the power supply box enclosures
• are NEMA-rated.
• Also available are a trim skirt to improve the aesthetics
• of the power supply box and a replacement power
• supply box cover.
• Fiber Optic Kits
• The VGA-FIBER-AN (multimode) is an analog, fiber
• optic conversion kit for use with 100 and 600 Series
• AUTODOMEs. This module is a video transmitter/data
• receiver modules designed to be mounted directly into
• an AUTODOME power supply box.
• The VG4-SFPSCKT is a unique media converter module
• for use with 7000 Series AUTODOMEs. This media
• converter is designed to accept a wide-range of
• modules for use with Multimode or Singlemode optical
• fiber with LC or SC connectors. The media converter
• module along with the SFP module is user-installed
• directly into the AUTODOME's power supply box to
• provide an integrated fiber optic solution.

Specifications

• protection for in-ceiling installation for 100/600 Series,
• while AUTODOME 7000 in-ceiling is IP54-compliant
• 10/100 Mbps Small Form-factor Pluggable (SFP)
