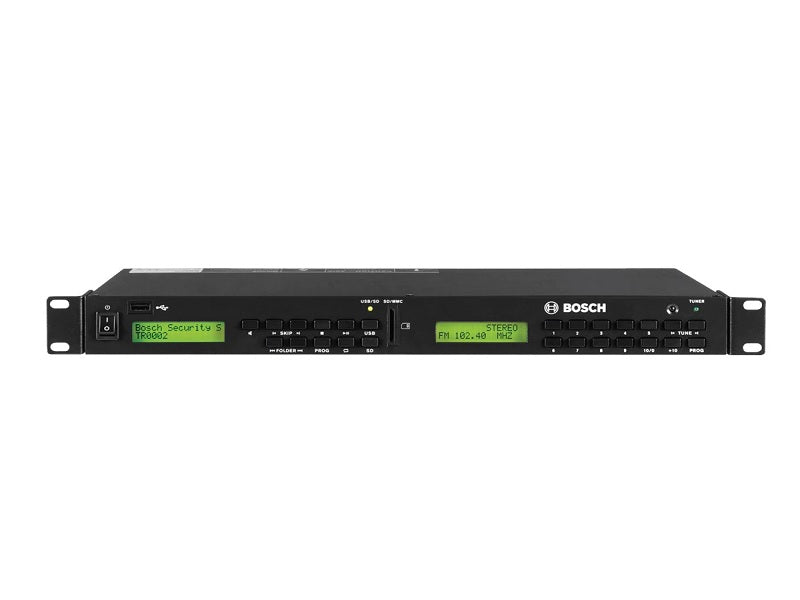

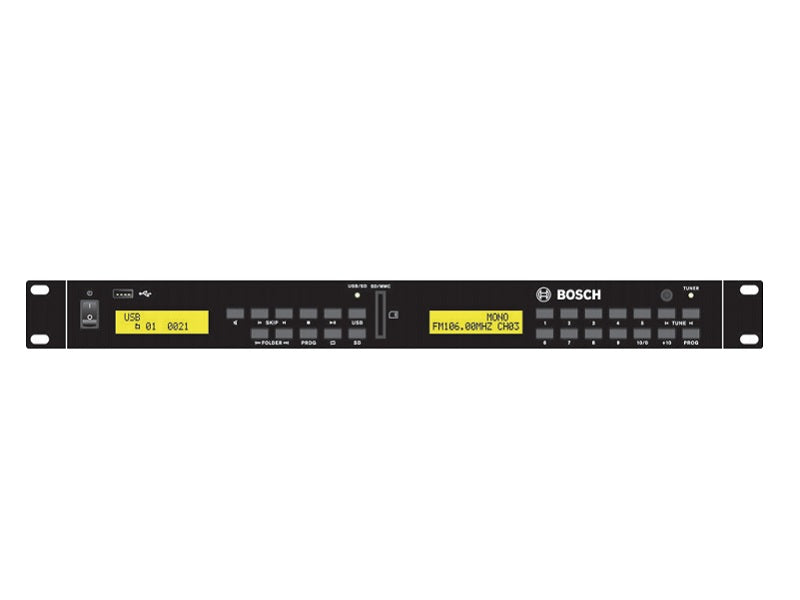

BOSCH Music Source Usb Sd Tuner

Power supply fuses 230 VAC 0.63 AT / 250 V.

Key features

• Electrical
• Mains power supply
• FM tuner
• Total harmonic distortion (1 kHz) < 0.8 %
• SD / USB audio player
• Total harmonic distortion (1 kHz) < 0.1 %
• 1 x BOSCH Plena Easy Line SD Tuner

Specifications

• Voltage 115 - 230 VAC `b110%,
• 50/60 Hz
• 120 VAC 1.25 AT / 250 V
• Power consumtion (typical) 10 W
• Power consumption (Max.) 50 VA
• Distortion < 1 %
• FM range 87.5 `f7 108 MHz
• Frequency response 50 Hz `f7 12 kHz
• Channel separation (1 kHz) ≥ 40 dB
• Intermediate rejection ≥ 70 dB
• Signal / noise ratio ≥ 50 dB
• Intermediate frequency 10.7 MHz
• Input sensitivity 6 `ecV e.m.f. (2 uV)
• Automatic tuning sensitivity ≤ 50 `ecV

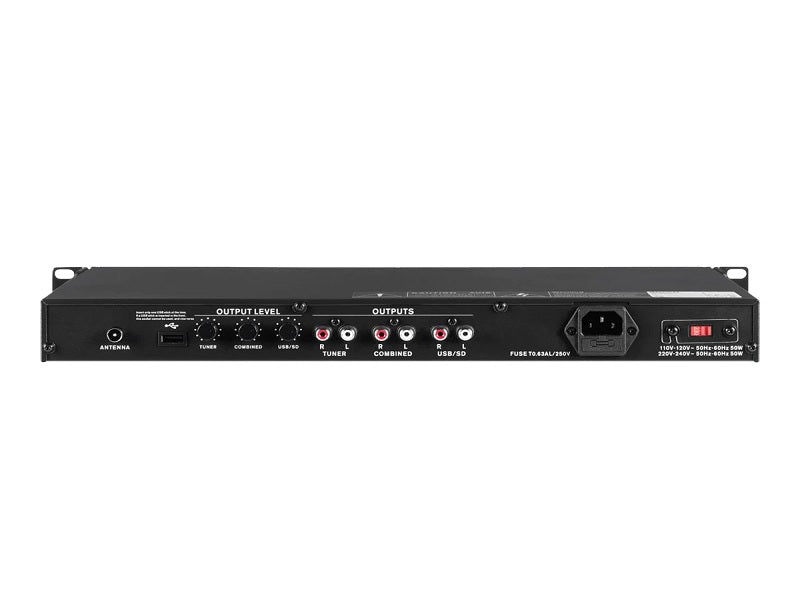

• Antenna input 75 ohms (coaxial)
• Audio output level - 10 dBV
• Maximum storage capacity 32 GB
• Maximum number of tracks 2000
• Frequency response 50 Hz `f7 20 kHz
• Signal / noise ratio ≥ 70 dB
• Stereo separation ≥ 60 dB
• 1 x AC Power cord
• 1 x Safety instructions
• 1 x Set of 19”mounting brackets

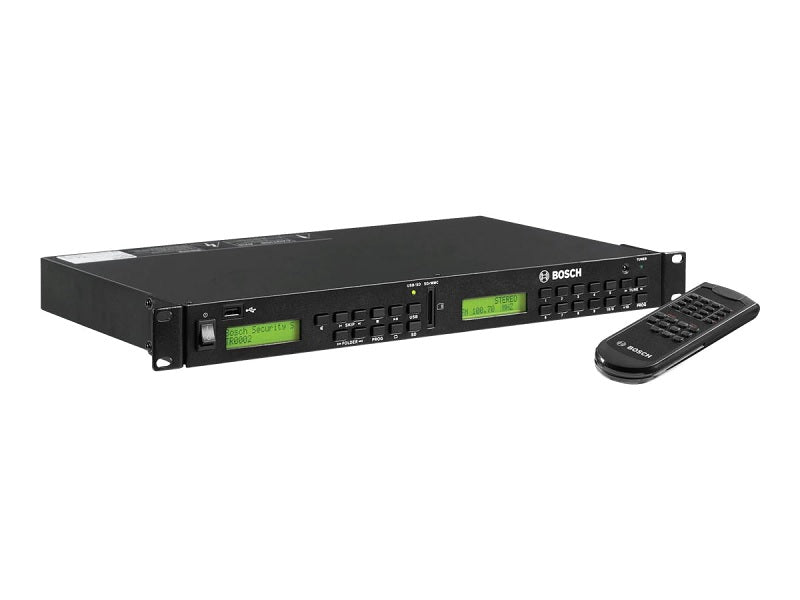

• 1 x Remote control
• 2 x 2‑pair audio RCA cable
