CCTV Ip Camera Tester Ipcxs-Ac1

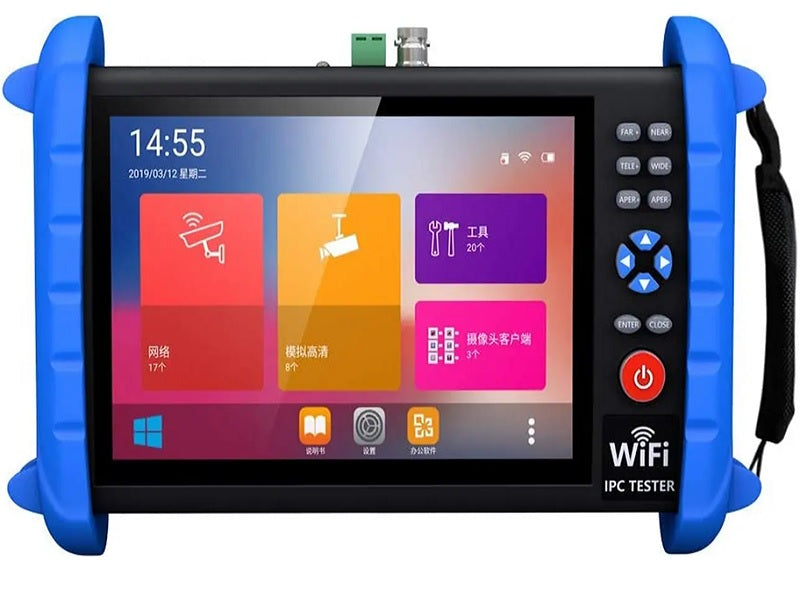

7 inch 1920*1200 HD resolution IPS touch screen, with rechargeable 7000mA / 7.4V lithium battery. Support IP camera max up to 6K and Analog camera testing, HDMI Output.

Key features

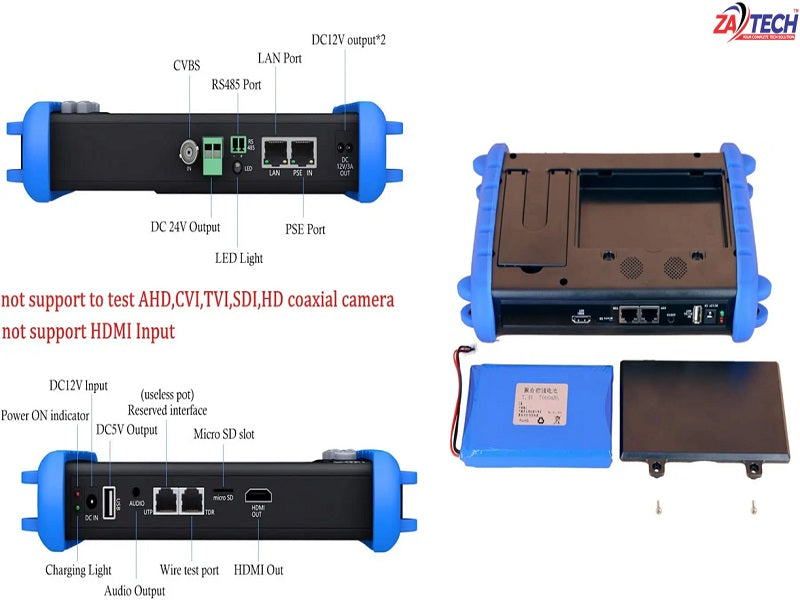

• It Outputs DC 5V/12V/24V and PoE 48V for camera power supply
• PTZ control:Receive, send and analyze data, used for PTZ protocol analysis, etc
• Ipcxa
• Note:this item doesn't support to test AHD,CVI,TVI,SDI,HD coaxial camera.
• this item doesn't support HDMI input.
• 1.Support IP camera max up to 6K and Analog camera(exclude HD analog cameras:TVI,CVI,AHD,SDI).
• 2.Support PoE 48V, DC5V 2A, DC12V 3A,DC24 1A output.
• 3.Compatible to most cameras in the market.
• 4.Screen resolution: HD IPS 1920 `d7 1200, instant image transmission.

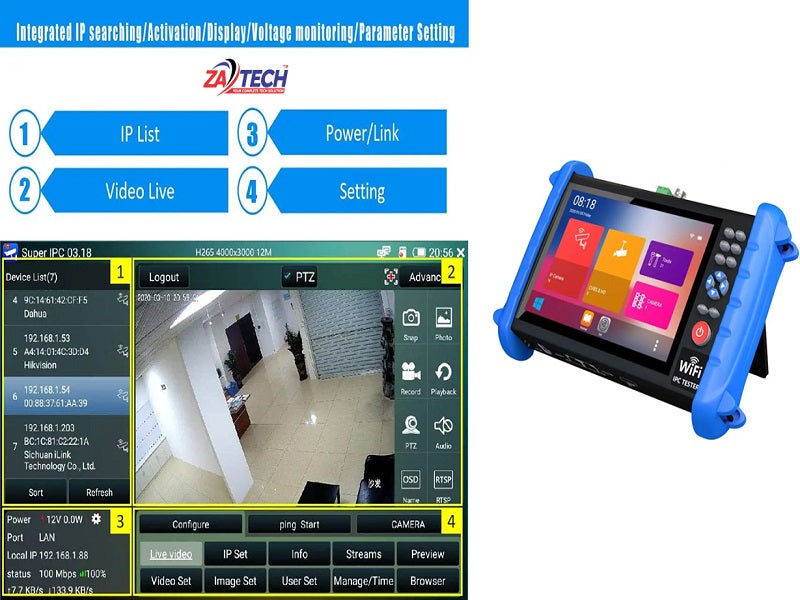

• 5.IP discovery tool, it is used to scan the whole network segment IP, and auto-modify tester’s IP address.
• 6.Open source, can install Android software.
• 7.H265,H264, MPEG4 network camera main stream test.
• With Built-in manual book and Browser.
• 10.Support wireless WIFI(10M/100M/1000M) and hotpots, easily connect and test wireless WIFI camera.
• 11.RS485 Port: Receive, send and analyze data, used for PTZ protocol analysis, etc.
• 12.Network tools: to scan all the IP address in the network, and test current network condition and PING value.
• 13.It can update software on line on store.
• Support to take snapshot at any time and the image can be modified 8 times.
• Rechargeable 7000mA / 7.4V polymer lithium battery. Working hour:6~10 hours.
• If you have operation issues, please don’t hesitate to contact with us.

Specifications

• H265,H264, MPEG4 network camera main stream test
• 8.HDMI output, 1080P.
