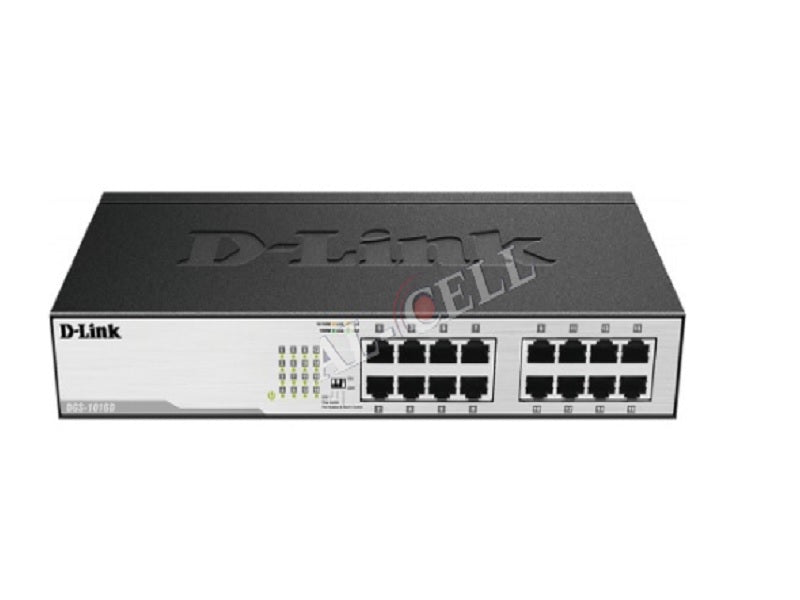

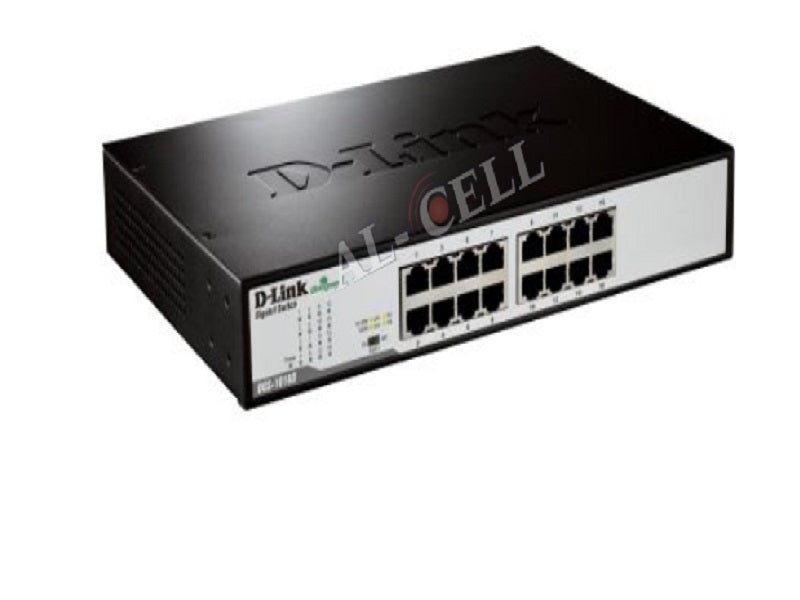

D-LINK 16 Portgigabit Unmanaged Rackmout

The D-Link 16 Portgigabit Unmanaged Rackmout is part of the networking range. Key features and full specifications are listed below.

Key features

• Brand D-Link
• Data Transfer Rates
• 10BASE-T UTP CAT 3, 4, 5/5e (100 m max)
• 100BASE-TX, 1000BASE-T UTP CAT 5/5e (100 m max)
• Functionality
• D-Link Green Features IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• Cable length detection power saving
• RoHS Compliance
• Media Interface Exchange Auto MDI/MDIX
• Transmission Method Store-and-Forward switching method
• RAM Buffer 512 KBytes RAM for data buffering
• LEDs Power LED
• CE Class A
• C-Tick Class A
• CB
• cUL
• Ordering Information 16-Port Gigabit Unmanaged Desktop or Rackmount Switch

Specifications

• Model DGS-1016D
• Number of Ports Sixteen 10/100/1000 Gigabit ports
• Standards IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• Ethernet: 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet 100 Mbps (half duplex)
• 200 Mbps (full duplex)
• Gigabit Ethernet 2000 Mbps (full duplex)
• EIA/TIA-586 100-ohm STP (100 m max)
• EIA/TIA-568 100-ohm STP (100 m max)
• MAC Address Table 8K MAC addresses
• Jumbo Frames 9216 Bytes
• Switching Capacity 32 Gbps
• Port Packet Filtering 10M: 14,880 pps
• 100M: 148,800 pps
• 1000M: 1,488,000 pps
• 16 Link/Activity/Speed LEDs (one per port)
• Power Inputs 00 to 240V AC Input
• Power Consumption Standby: 4.48 watts
• Maximum: 9.84 watts
• Heat Dissipation Standby: 15.2768 btU/h
• Maximum: 33.5544 btU/h
• MTBF 795,539 hours
• Dimensions 280 x 125 x 44 mm
• Weight 1.06 kg
• Operating Temperature (0 to 40 `b0C
• Storage Temperature -10 to 70 `b0C
• Humidity 5% to 90% non-condensing
• ICES-003 Class A
