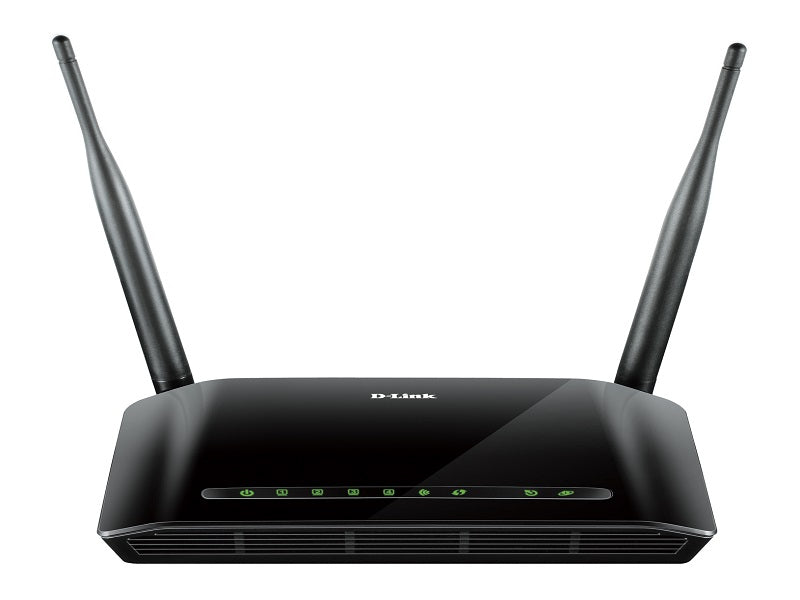

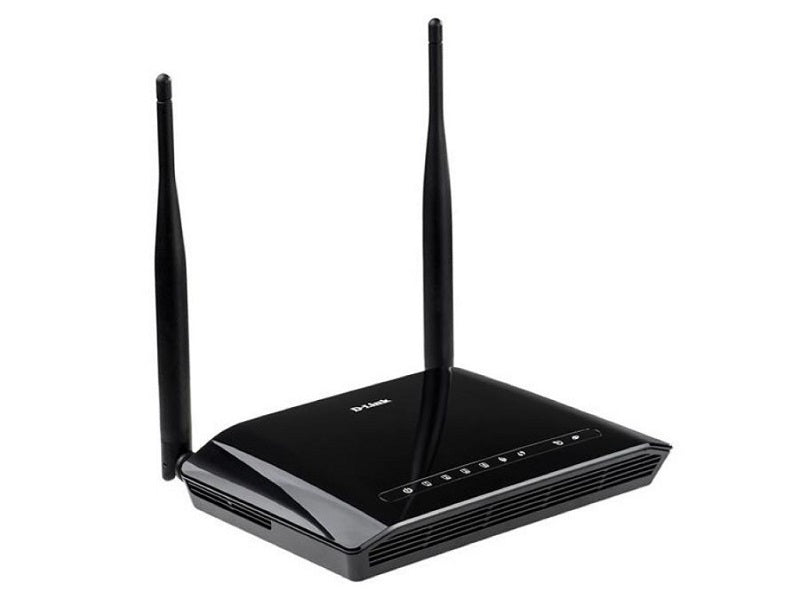

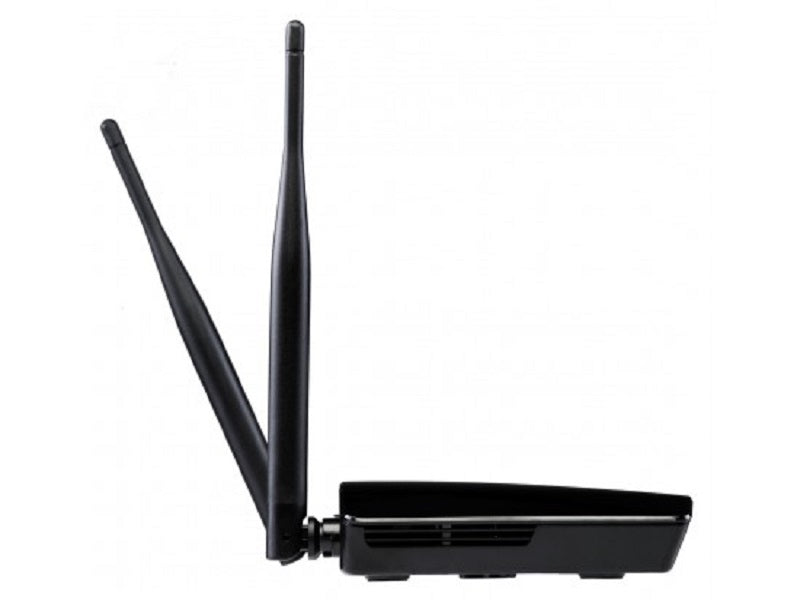

D-LINK Wireless N300 Adsl2+Modem Router

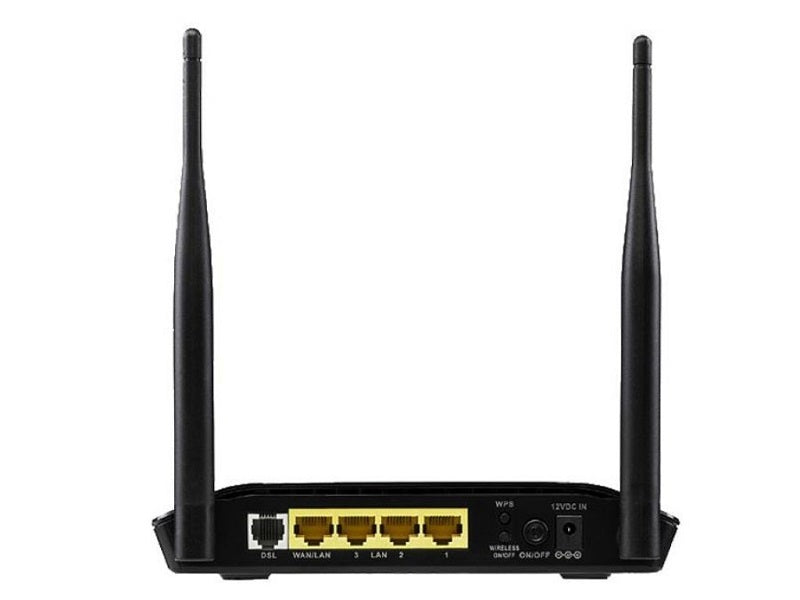

D-link DSL-2740U ADSL2+ modem + wireless router + 4port 10/100 lan , 802.11b/g/N , 300mbps ; ADSL2/2+ : 24Mbps downstream / 1Mbps upstream , with WPS button , 64/128bits WEP , WPA+WPA2; 2x detachable antenna General 802.11b/g/n standards Wireless speed: up to 54 Mbps (802.11g), 300 Mbps (802.11n) G.dmt: 8 Mbps downstream, 832 Kbps upstream G.lite: 1.5 Mbps downstream, 512 Kbps upstream ADSL2: 12 Mbps downstream, 1 Mbps upstream ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs) Frequency range: 2.4 GHz to 2.4835 GHz, EIPR: 18.7dBm Antennas: Dual 2x2 built-in MIMO antennas ADSL2+: 24 Mbps downstream, 1 Mbps upstream VC and LLC based multiplexing PPP over Ethernet (PPPoE) PPP over ATM (RFC 2364) ITU-T I.610 OAM F4/F5 ATM Adaptation Layer Type 5 (AAL5) ATM QoS (Traffic Shaping) Bridged or routed Ethernet encapsulation Device Interfaces RJ-11 ADSL port 4 RJ-45 10/100BASE-TX Ethernet ports with auto MDI/MDIX Factory reset button Built-in 802.11n wireless LAN WPS button Wireless on/off switch (optional) Power on/off switch ADSL Standards Multi-mode ANSI T1.413 Issue 2 ITU G.992.1 (G.dmt) Annex A ITU G.992.2 (G.lite) Annex A TU G.994.1 (G.hs) ADSL2 Standards ITU G.992.3 (G.dmt.bis) Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A Router Features WAN/LAN Switchable Port (optional) NAT & NAPT DHCP server/client/relay Static Routing, RIP v.1, v.2 Universal Plug and Play (UPnP) compliant Dynamic Domain Name System (DDNS) Virtual server SNTP, DNS proxy and IGMP proxy Built-in NAT firewall Stateful Packet Inspection (SPI) DoS attacks prevention Security IGMP PVC/VLAN port mapping (bridge mode) 64/128 bits WEP data encryption WPA/WPA2 (Wi-Fi Protected Access) security MAC address-based access control WPS Packet filtering (IP/ICMP/TCP/UDP) Supports IPv6.

Specifications

• Model Number
• Md-dsl2740u
