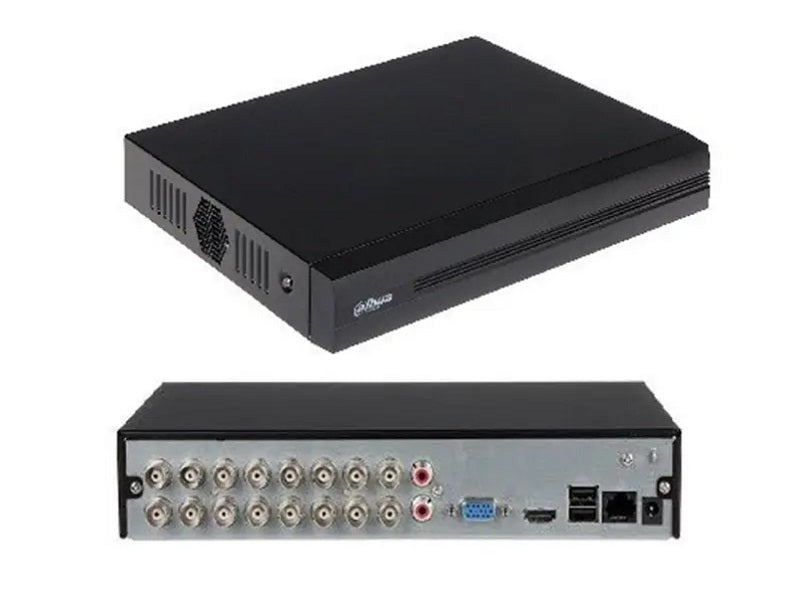

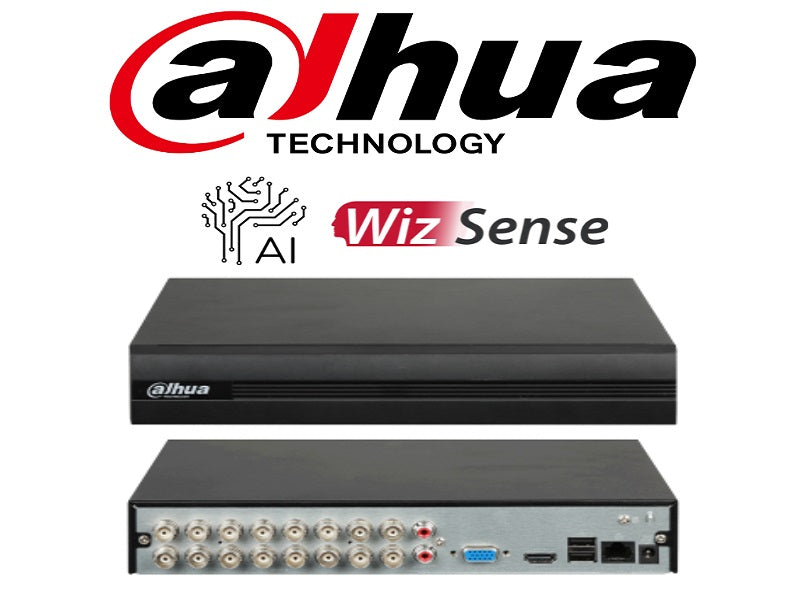

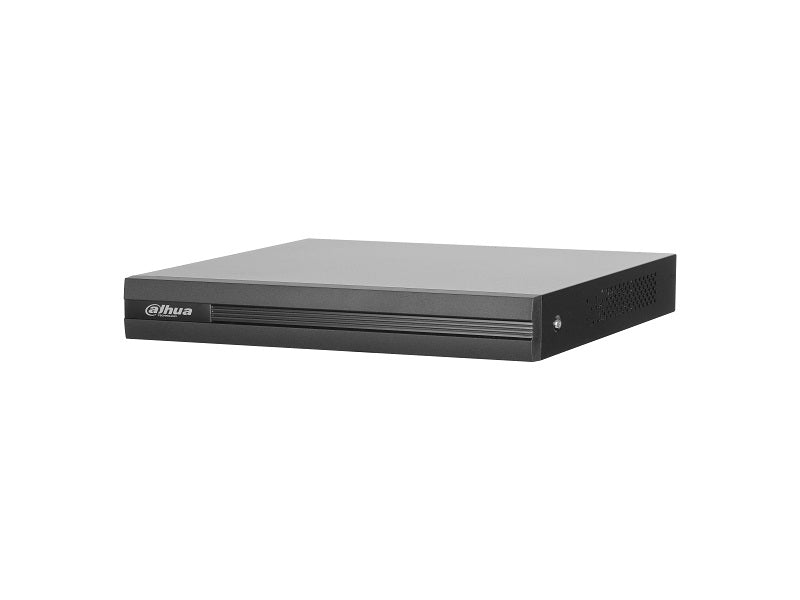

DAHUA 16Ch Dvr Upto 5Mp 1Hdd

AI Coding: Supports full-channel AI coding for enhanced video quality. Versatile Input Support: Compatible with HDCVI, AHD, TVI, CVBS, and IP video inputs.

Key features

• High IP Camera Capacity: Up to 24 IP camera channels, each up to 6MP
• SMD Plus Technology: Up to 16 channels with secondary filtering for human and vehicle detection, reducing false alarms
• SMD Plus
• SMD Plus by Recorder: Supports up to 16 channels for secondary filtering of human and vehicle detection to minimize false alarms
• CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps
• TVI: 5MP, 4MP, 3MP, 1080p@25/30 fps, 720p@25/30 fps
• AHD: 5MP, 4MP, 3MP, 1080p@25/30 fps, 720p@25/30 fps
• IP Camera Input: Up to 24 channels (16 IP channels by default + 8 channels converted from analog)
• Main Stream: 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps)
• Video Frame Rate: PAL: 1 fps–25 fps; NTSC: 1 fps–30 fps
• VGA Resolutions: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
• HDMI Resolutions: 3840 `d7 2160, 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
• Third-party Camera Access: ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
• Compression Standard
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
• Recording and Playback
• Alarm
• Anomaly Alarm: No disk, disk error, low space, offline, IP conflict, MAC conflict
• Alarm Linkage: Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
• Dimensions: Compact 1U, 260.0 mm `d7 231.4 mm `d7 47.6 mm (10.24`` `d7 9.11`` `d7 1.87``)
• Packaging Dimensions: 333.0 mm `d7 89.0 mm `d7 315.0 mm (13.11" `d7 3.50" `d7 12.40")
• Operating Temperature: –10 `b0C to +45 `b0C (+14 `b0F to +113 `b0F)
• CE: ce-lvd: EN 60950-1/IEC 60950-1; ce-emc: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Specifications

• Dh-xvr1b16h-i
• DAHUA DH-XVR1B16H-I: Advanced 16-Channel Digital Video Recorder
• Efficient Video Compression: H.265+/H.265 dual-stream for optimized storage
• High Bandwidth: Max 128 Mbps incoming bandwidth
• Long-Distance Transmission: Reliable over coax cable
• POS Integration: Advanced point-of-sale functionalities
• Interface: Web and Local GUI
• Analog Camera Input: 16 channels, BNC, adaptive access
• Bandwidth: 128 Mbps incoming, recording, and outgoing
• Sub Stream: D1/CIF@(1 fps–25/30 fps)
• Dual-stream: Yes
• Video Bit Rate: 32 Kbps–6144 Kbps per channel
• Audio Sampling: 8 KHz, 16 bit
• Audio Bit Rate: 64 Kbps
• Output Ports: 1 HDMI, 1 VGA
• Without IP extension: 1/4/8/9/16
• With IP extension: 1/4/8/9/16/25
• Video Compression: AI Coding/H.265+/H.265/H.264+/H.264
• Audio Compression: G.711A/G.711u/PCM
• Mobile Access: iPhone, iPad, Android
• Interoperability: ONVIF 21.06, CGI
• Browsers: Chrome, IE9 or above, Firefox
• Record Mode: General, motion detection, intelligent, alarm, POS
• Playback: 1/4/9/16
• Backup Method: USB Device/Network
• Playback Modes: Instant, general, event, tag, smart
• General Alarm: Motion detection, video loss, tampering
• Audio Input: 1 RCA (external), 16 BNC (coaxial)
• Audio Output: 1 RCA
• Two-way Talk: Yes (shared with the first channel)
• HDD Interface: 1 SATA port, up to 16TB
• USB: 2 USB 2.0 ports
• Hdmi: 1
• VGA: 1
• Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
• Power Supply: DC12V, 2A
• Power Consumption: <12W
• Net Weight: 0.93 kg (2.05 lb)
• Gross Weight: 1.43 kg (3.16 lb)
• Operating Humidity: 10%–90%
• Installation: Desktop
• FCC: Part 15 Subpart B
