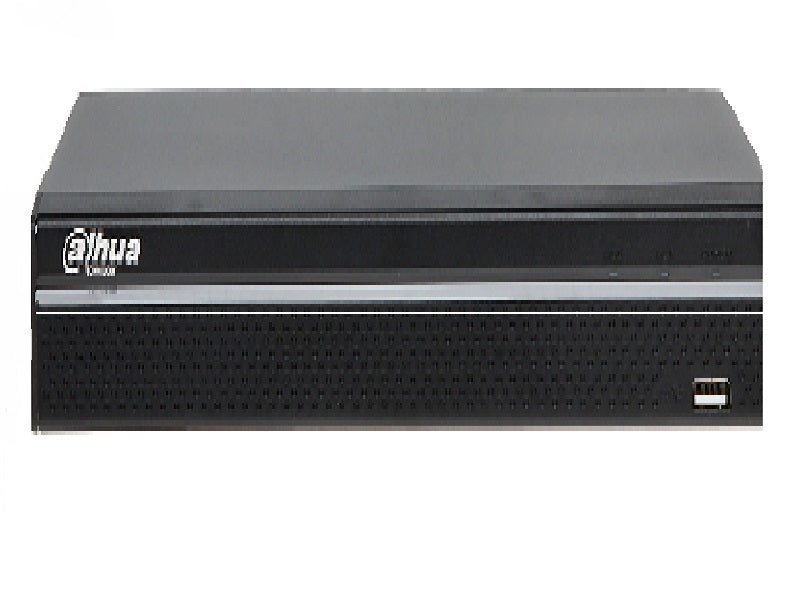

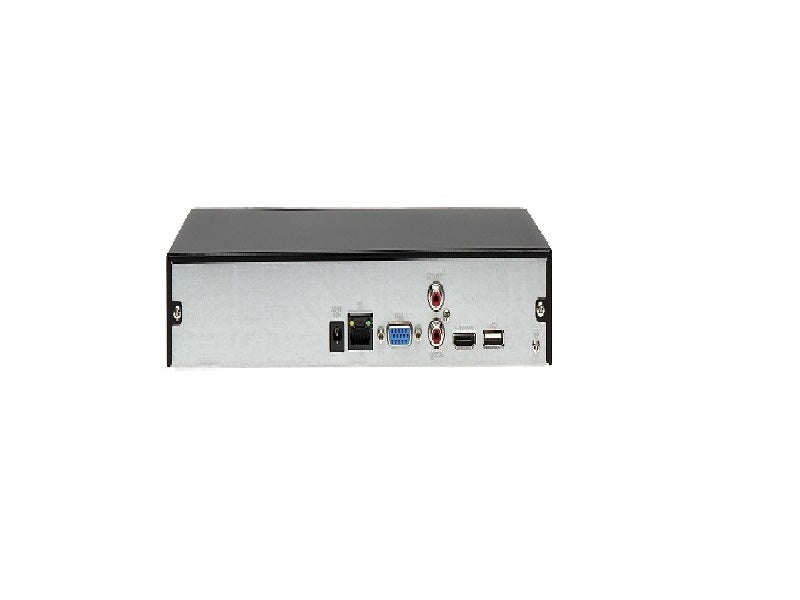

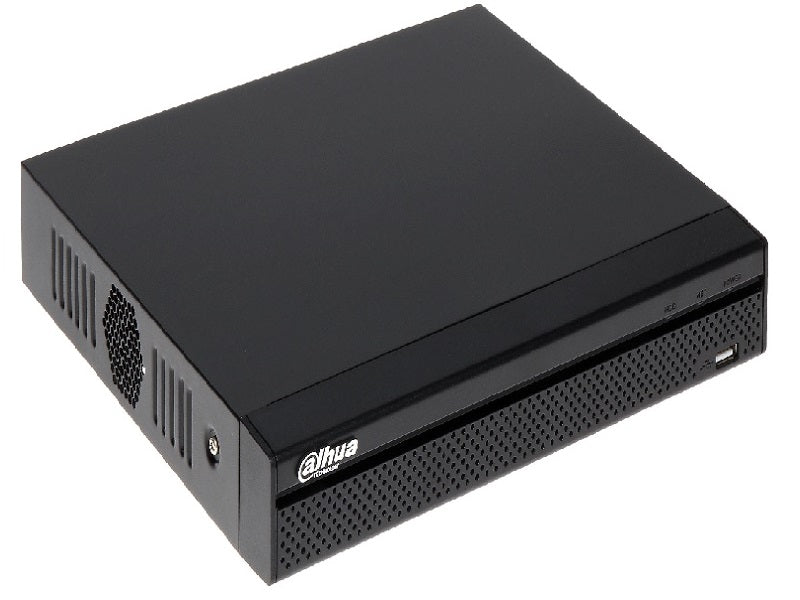

DAHUA 16Ch Nvr 80Mbps 1Hdd Alarm Notifi

> H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch. > Max. decoding capability: 8 `d7 1080p@30 fps. Supports adaptive decoding.

Key features

• 16 Channel Compact 1U 1HDD Network Video Recorder
• > New 4.0 user interface, Security baseline 2.1
• > Supports mainstream cameras of ONVIF and RTSP protocols
• > P2P remote surveillance, video play on mobile device
• > VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
• > AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
• > Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
• OS
• Embedded Linux
• Web/operating in local GUI
• Performance
• AI Search
• Search for pictures by channel, time and event type
• Face Attributes
• 6 attributes: Gender, age, glasses, expression, mouth mask, and beard
• Search for pictures by channel, time and face attributes
• Search by target classification (human, vehicle)
• Access Channel
• Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
• 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
• Decoding Capability
• 1 `d7 VGA output, 1 `d7 HDMI output, supports simultaneous video sources output for VGA and HDMI
• Third-party Camera Access
• Onvif; rtsp
• Compression
• HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
• Mobile Phone Access
• Android; iOS
• Interoperability
• ONVIF(profile T/S/G); CGI; SDK
• Browser
• Record Playback
• Multi-channel Playback
• Record Mode
• Manual record; alarm recording; SMD recording; smart recording
• Backup
• Playback Function
• Play/pause/stop/slow/quick/backward/by frame
• Full screen, backup (video clip/file), partial zoom in, and audio on/off
• Disk Group
• Yes
• Alarm
• Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
• Anomaly Alarm
• Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
• Intelligent Alarm
• Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
• Alarm Linkage
• Recording, snapshot, audio, buzzer, log, preset, and email
• HDD
• 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
• 2 (1 `d7 front USB2.0; 1 `d7 back USB2.0)
• Hdmi
• VGA
• 1 `d7 RJ-45, 10/100 Mbps self-adaptive Ethernet port
• 260 mm `d7 232.5 mm `d7 50.3 mm (10.24" `d7 9.15" `d7 1.98") (W `d7 L `d7 H)
• 89 mm `d7 333 mm `d7 315 mm (3.50" `d7 13.11" `d7 12.40") (W `d7 L `d7 H)
• –10 `b0C to +55 `b0C (+10 `b0F to +131 `b0F)
• 0 `b0C to +40 `b0C (32 `b0F to 104 `b0F)
• Installation
• Desktop mounted

Specifications

• Dhi-nvr4116hs-4ks2/l
• 8 channels
• 4 channels
• 12 channels
• 16
• Resolution
• 8 `d7 1080p@30 fps
• 1, 4, 8, 9, 16 views
• Smart H.265/H.265/Smart H.264/H.264/MJPEG
• Pcm/g711a/g711u/g726/aac
• Chrome; IE9 or later; firefox
• Up to 16 channels for playback
• 1 `d7 RCA input
• 1 `d7 RCA output
• 1 (supports up to 4K resolution output)
• 1
• 12V DC, 2A
• < 10 W (HDD not included, idling)
• 0.81 kg (1.79 lb)
• 1.41 kg (3.11 lb)
• 10℅~93℅
• 30%~85%
• 3000 m (9842.52 ft)
• CE: EN62368-1; en55032,en55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
• FCC: Part 15 Subpart B
