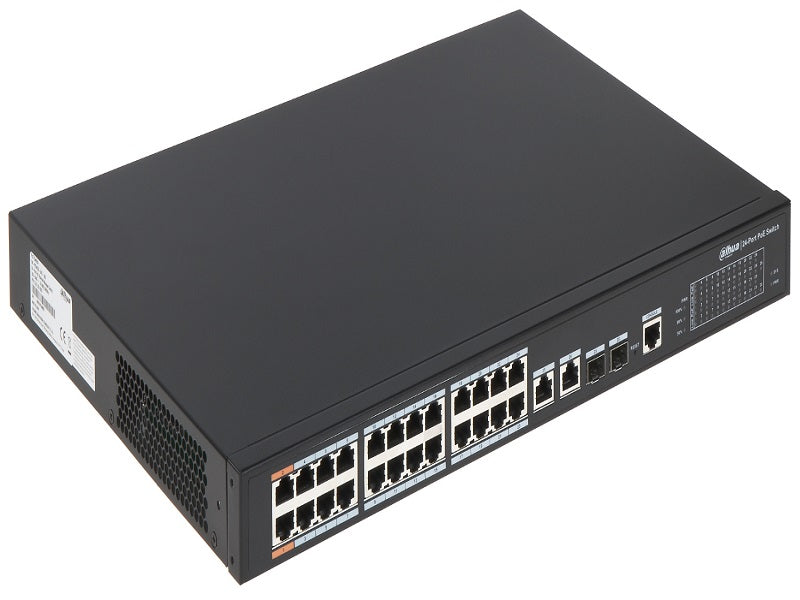

DAHUA 24 Port Gigabit Managed Poe Switch

Port 25-26: 2 `d7 RJ-45 10 M/100 M/1000 M (uplink). Operating Temperature –10 `b0C to +55 `b0 (14 `b0F to 131 `b0F).

Key features

• Performance
• Managed Yes
• Hardware Feature
• PoE Yes
• Number of Bussiness Card
• Slots
• PoE
• PoE Budget Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 240W
• PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• PoE Management
• Green PoE
• Legacy support
• Long Distance PoE
• Function
• Spanning Tree Protocol IEEE 802.1d (STP); 802.1w (RSTP)
• Flow Control Support IEEE 802.3x (full duplex flow control) and back
• pressure flow control (half duplex)
• Link Aggregation Static; LACP
• Multicast GMP snooping based on port
• DHCP DHCP client
• Security
• Hardware supports IP and MAC binding based on
• authentication
• QoS
• High and low priority
• WRR
• Dscp
• Priority based on protocol
• Dimensions 440 mm `d7 300 mm `d7 44 mm (17.32" `d7 11.81" `d7 1.73") (L
• Packing box: 527 mm `d7 412 mm `d7 110 mm (20.75" `d7
• 16.22" `d7 4.33") (L `d7 W `d7 H)
• Protective box: 584 mm `d7 549 mm `d7 446 mm (22.99" `d7
• 21.61" `d7 17.56") (L `d7 W `d7 H)
• Switch power supply voltage 53V.
• CAT5E/CAT6. Max. DC resistance < 10`d9/100m
• Cable(m) Load Capacity(W) Bandwidth(Mbps)

Specifications

• Dh-pfs4226-24et-240
• Layer Layer 2
• Switching Capacity 8.8 Gbps
• Packet Forwarding Rate 6.55 Mpps
• Packet Buffer Memory 2.75 Mbit
• MAC Table Size 4K
• Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;
• IEEE 802.3z
• Standard Power Supply Yes
• Ethernet Port 24
• Optical Port 2
• Ethernet Port Rate 100 Mbps
• Optical Port Rate 1 Gbps
• Port 1-24: 24 `d7 RJ-45 10 M/100 M (PoE)
• Port 25-26: 2 `d7 SFP 1000 M (uplink) (combo)
• Debugging Console `d7 1
• Power Supply 100V–240V AC
• Operating Humidity 10% RH–90% RH
• Power Consumption Idling: 10W
• Full load: 240W
• PoE Standard IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
• Power on and power off
• Transmission 250 m long-distance power supply
• VLAN IEEE802.1q Standard VLAN
• port, MAC filtering based on port, and IEEE802.1x port
• 802.1P
• ESD Air discharge: 8kV
• Contact discharge: 6kV
• Thunder-proof Common mode: 4kV
• Differential mode: 2kV
• `d7 W `d7 H)
• Desktop PoE Switch | DH-PFS4226-24ET-240
• IEEE802.3bt 90W
• 100 71.3 100
• 150 62 10
• 200 51 10
• 250 40 10
• Hi-PoE 60W
• 100 53 100
• 150 50 10
• 200 47 10
• 250 37 10
• IEEE802.3at 30W
• 100 25.5 100
• 150 25.5 10
• 200 25.5 10
• 250 25.5 10
