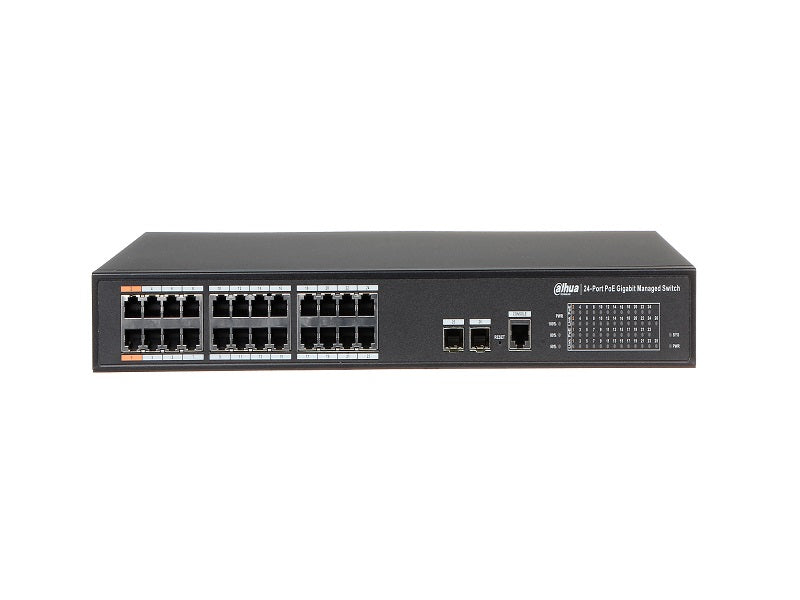

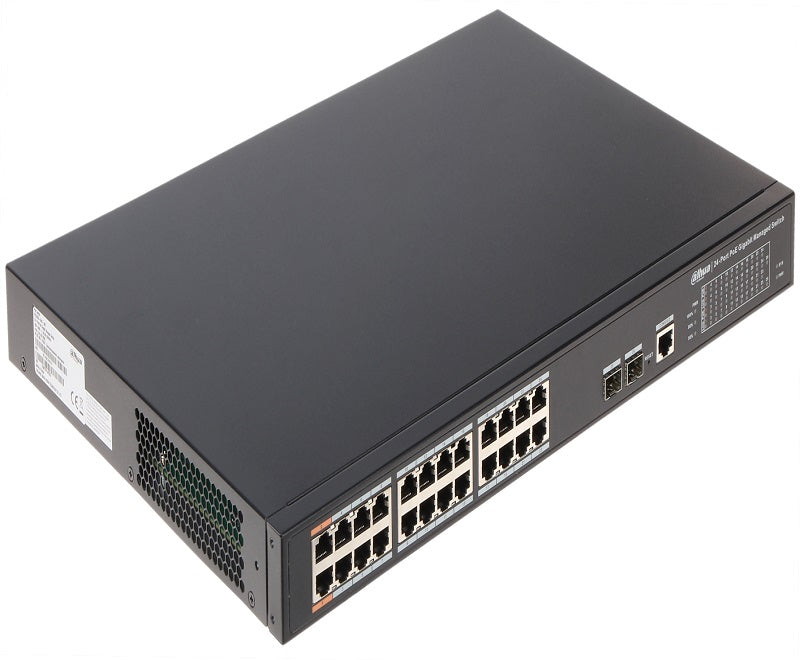

DAHUA 24 Port Managed Gb Switch +24P Poe

Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection.

Key features

• Technical Specification
• 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
• PoE Power Consumption
• PoE Protocol
• Switching Capacity
• Packet Forwarding Rate
• Application Humidity
• Lightning Protection
• Working Temperature
• Service Characteristics
• PoE Budget
• MAC Table
• NTP
• Support
• Dhcp
• Support DHCP client/server
• Support DHCP snooping
• Vlan
• Manual aggregation/LACP
• Mirroring
• Many-to-one port mirroring
• Flow Control
• Half-duplex based on back pressure type control;
• Full duplex based on PAUSE frame
• Multicast
• Spanning tree
• Support STP/RSTP/MSTP
• Lldp
• Support MAC address table configuration
• QoS
• Support QoS base on CoS/DPL/PCP/DEI
• Support port shaping
• Support port tag remarking
• Support QoS base on DSCP
• Support the configuration file upload/download
• Support the updated packet upload
• WEB(http protocol), serial, SNMP

Specifications

• CAT-26 dh-pfs4226-24gt-240
• Model
• Dh-pfs4226-24gt-240
• 24*10/100/1000 Base-T (PoE power supply)
• 2*100/1000 Base-X
• RS232 Serial Console
• Port1 and port 2 support Hi-PoE 60W
• Each power ≤30W, Total≤240W
• IEEE802.3af, IEEE802.3at, Hi-PoE
• 52Gbps
• 38.688Mpps
• 4Mb
• 5%~95%
• AC100-240V, 50/60Hz
• Common Mode 2KV
• Differential Mode 1KV
• 10`b0C~55`b0C
• Dimension(W'd7D'd7H)
• 440mm x300mm x44mm
• PFT3950
• 1.25G 850nm,500m,LC, Multi-mode
• PFT3960
• 1.25G 1310/1550nm,20km,LC, Single-mode
• PFT3970
• 1.25G 1550/1310nm,20km,LC, Single-mode
• Username / password: admin/admin
• IP Address :192.168.1.110/24
• Total≤240W
• 8K
• 802.1Q Standard VLAN
• IGMP Snooping v1/v2/v3
• Each port support 8 output queue
