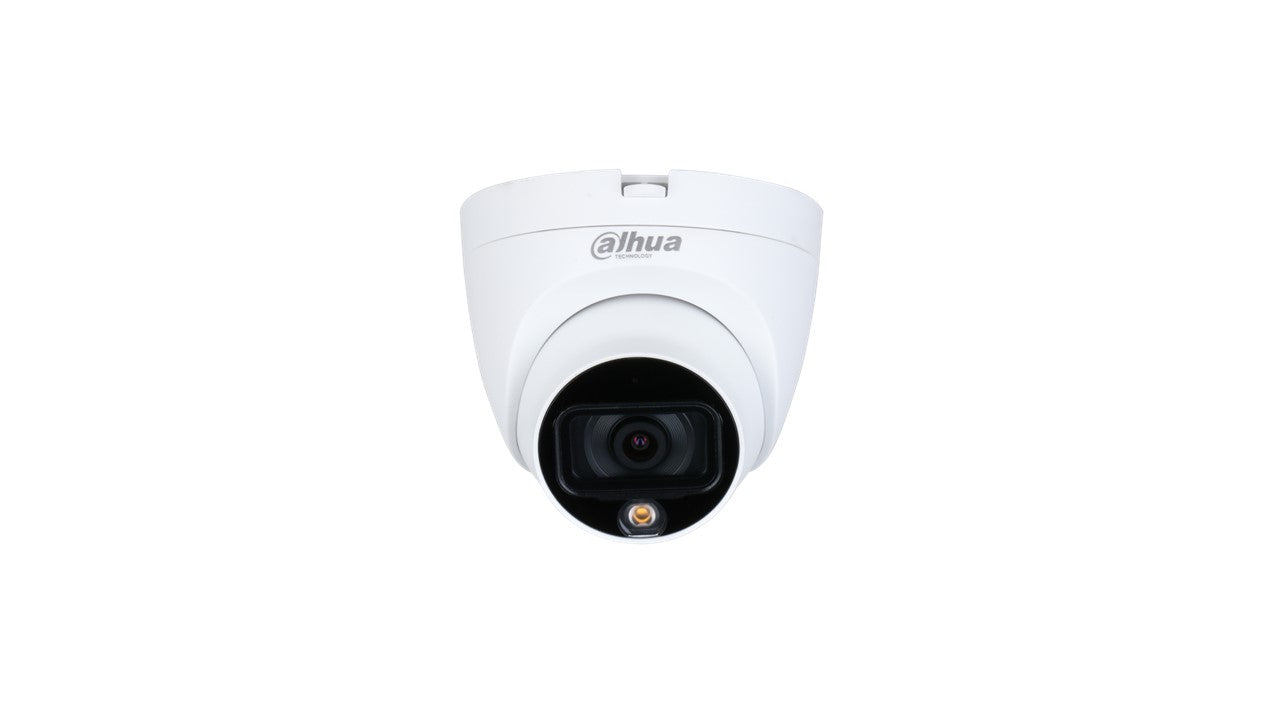

DAHUA 2Mp Full Color Dome 2.8Mm 20M

Resolution 1080P (1920 `d7 1080); 720P (1280`d7 720); 960H (960 `d7.

Key features

• Effective Pixels 1920 (H) `d7 1080 (V), 2MP
• Scanning System Progressive
• Illumination Distance Distance up to 20 m (65.61 ft)
• Illuminator On/Off Control Auto; manual
• Pan/Tilt/Rotation Range
• Max. Aperture F1.6 ;F1.6
• Field of View
• Iris Type Fixed iris
• Dori
• Frame Rate
• BLC blc/wdr
• WDR dwdr
• White Balance Auto; manual
• Gain Control Auto; manual

Specifications

• Dh-hac-hdw1209tlqp-led
• Image Sensor 1/2.8 inch CMOS
• Electronic Shutter Speed PAL: 1/25s–1/100000s
• NTSC: 1/30s–1/100000s
• S/N Ratio >65dB
• Minimum Illumination 0.01Lux/F1.6, 0Lux white light on
• Illuminator Number 1
• Pan: 0`b0–360`b0
• Tilt: 0`b0-78
• Rotation: 0`b0–360`b0
• Lens
• Lens Type Fixed-focal
• Mount Type M12
• Focal Length 2.8 mm ;3.6 mm
• 2.8 mm: 126.2`b0 `d7 106`b0 `d7 56.5`b0
• (diagonal `d7 horizontal `d7 vertical);
• 3.6 mm: 103.6`b0 `d7 86.9`b0 `d7 46.3`b0
• (diagonal `d7 horizontal `d7 vertical)
• Close Focus Distance 2.8 mm: 0.6 m (1.97 ft);
• 3.6 mm: 1.2 m (3.94 ft)
• Distance
• Lens Detect Observe Recognize Identify
• 2.8 mm 38.6 m
• (126.6 ft)
• 15.4 m
• (50.5 ft)
• 7.7 m
• (26.3 ft)
• 3.9 m
• (12.8 ft)
• 3.6 mm 55.2 m
• (181.1 ft)
• 22.1 m
• (72.5 ft)
• 11.0 m
• (36.1 ft)
• 5.5 m
• (18.0 ft)
• PAL: 1080P@25fps; 720P@25fps;
• NTSC: 1080P@30fps; 720P@30fps;
• PAL: 1080P@25fps;
• NTSC: 1080P@30fps
• PAL: 960H;
• Ntsc: 960H
• 576/960 `d7 480)
