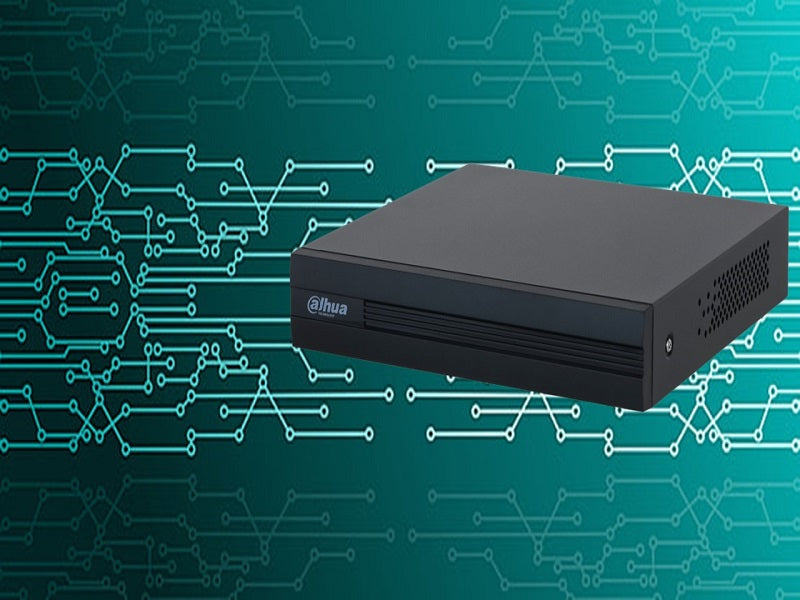

DAHUA 4Ch Upto 2Mp Dvr

vehicle , reducing false alarms caused by leaves, rain and. Analog Camera Input 4 channels, BNC: adaptive access by default; HDCVI, AHD,.

Key features

• SMD Plus
• SMD Plus by Recorder
• lighting condition change
• TVI and CVBS access can be configured
• CVI: 1080p@25/30 fps; 720p@25/30/50/60 fps.
• TVI: 1080p@25/30 fps; 720p@25/30 fps.
• Up to 5 channels of IPC access.
• 1 IP channel by default + 4 channels (analog channels are
• converted to IP channels)
• After IP channels are added beyond the existing
• channels, the AI Function (SMD) will be disabled.
• Encoding Capacity
• (1–25/30 fps); 960H@ (1–25/30 fps); D1@ (1–25/30 fps);
• Dual-stream Yes
• HDMI/VGA: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
• Multi-screen Display When IP extension mode not enabled: 1/4
• Access
• ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco;
• Canon; Samsung
• Compression Standard
• Video Compression AI Coding; H.265+; H.265; H.264+; H.264
• Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP;
• Mobile Phone Access iOS; Android
• Browser
• Chrome
• Firefox
• Recording Playback
• Record Mode General, motion detection, alarm
• Backup Method USB device and network
• Playback Mode Instant playback, general playback, event playback, tag
• playback, smart playback (motion detection)
• Alarm
• General Alarm Motion detection; video loss; tampering; local alarm
• Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC
• conflict
• Intelligent Alarm SMD Plus
• Alarm Linkage Record, snapshot (panoramic), voice prompt, buzzer, log,
• preset, email
• Two-way Talk Yes (share the same audio input with the first channel)
• HDD Interface 1 SATA port, up to 6 TB.The maximum HDD capacity
• varies with environment temperature.
• Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
• Product Dimensions 198.3 mm `d7 202.9 mm `d7 41.5 mm (7.81`` `d77.99`` `d7 1.63``)
• Packaging Dimensions 330.0 mm `d7 256.0 mm `d7 101.0 mm (13.00`` `d7 10.10`` `d7
• Operating Temperature –10 `b0C to +45 `b0C (+14 `b0F to +113 `b0F)
• Installation Desktop
• Ce-emc: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
• Ordering Information

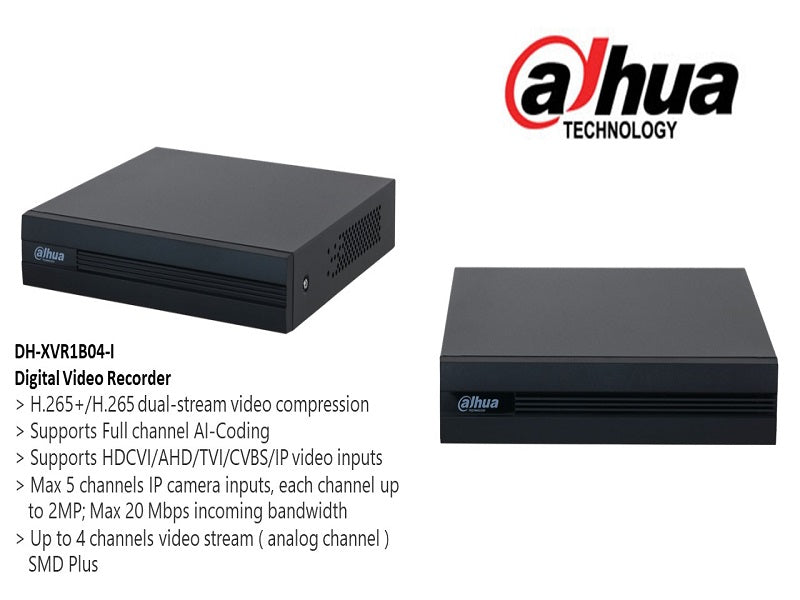

• WizSense XVR DH-XVR1B04-I Cooper 1U WizSense Digital Video
• Recorder

Specifications

• Dh-xvr1bo4-i
• Operating Interface Web; Local GUI
• 4-channel: Secondary filtering for human and motor
• AHD: 1080p@25/30fps, 720p@25/30 fps.
• incoming bandwidth: 20 Mbps, recording bandwidth: 20
• Mbps and outgoing bandwidth: 20 Mbps
• Main stream: All channel 1080N@ (1–25/30 fps);720p@
• CIF@ (1–25/30 fps)
• Sub stream: CIF@ (1–15 fps)
• Video Frame Rate PAL: 1 fps/s–25 fps/s
• NTSC: 1 fps/s–30 fps/s
• Video Bit Rate 32 kbps–4096 kbps
• Audio Sampling 8 kHz, 16 bit
• Audio Bit Rate 64 kbps
• Video Output 1 HDMI, 1 VGA
• When IP extension mode enabled: 1/4/6
• Audio Compression G.711a; G.711u; PCM
• DNS; ddns; P2P
• Interoperability ONVIF 20.16, CGI Conformant
• IE 9 or later
• Recording Playback 1/4
• Audio Input 1-channel RCA
• 4-channel BNC (Coaxial Audio)
• Audio Output 1-channel RCA
• USB 2 (2 rear USB 2.0 ports)
• Hdmi 1
• VGA 1
• Power Supply 12 VDC, 1.5 A
• Power Consumption <7 W (without HDD)
• Net Weight 0.57 kg (1.25 lb)
• Gross Weight 1.08 kg (2.38 lb)
• (W `d7 D `d7 H)
• 4.00``)(W `d7 D `d7 H)
• Operating Humidity 0%–90% (RH)
• CE: ce-lvd: EN 60950-1/IEC 60950-1
• 50130, EN 55024
• FCC: Part 15 Subpart B
• | dh-xvr1b04-i
• 4 Channels
