DAHUA 5Mp Dome

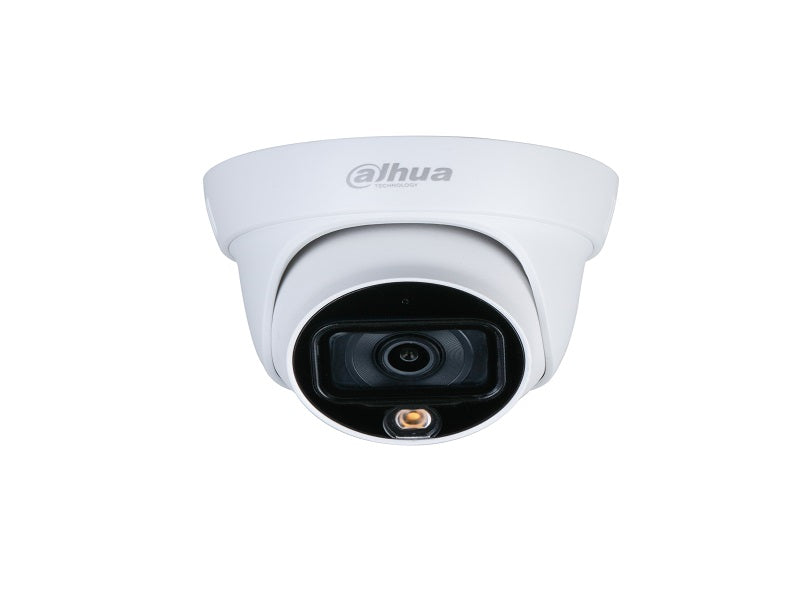

DAHUA 5Mp Dome Full Color Camera 3.6mm
DAHUA 5Mp Dome Full Color Camera 3.6mm
DAHUA 5Mp Dome Full Color Camera 3.6mm

DAHUA 5Mp Dome Full Color Camera 3.6mm

DAHUA
R 899
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 899

Description

High-Resolution Video: Max 25 fps @ 5MP (16:9 video output). Advanced Imaging: 120dB true WDR, 3D NR for superior clarity.

Key features

  • Electronic Shutter Speed: PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s
  • Min. Illumination: 0.001 Lux/F1.0, 0 Lux with warm light on
  • Pan/Tilt/Rotation Range
  • DORI Distance
  • CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
  • Resolution: 5M (2880 `d7 1620); 4M (2560 `d7 1440); 1080p (1920 `d7 1080); 960H (960 `d7 576/960 `d7 480)
  • FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014
  • Power Consumption: Max 4.4 W (12 V DC, warm light on)
  • Operating Temperature: –40 `b0C to +55 `b0C (–40 `b0F to +131 `b0F); < 95% (non-condensation)
  • Storage Temperature: –40 `b0C to +55 `b0C (–40 `b0F to +131 `b0F); < 95% (non-condensation)
  • Structure
  • Casing: Metal inner core + plastic cover + plastic pedestal
  • Camera Dimensions: `f697.1 mm `d7 91.4 mm (`f63.82" `d7 3.6")

Specifications

  • Dh-hac-hdw1509tlqp-a-led

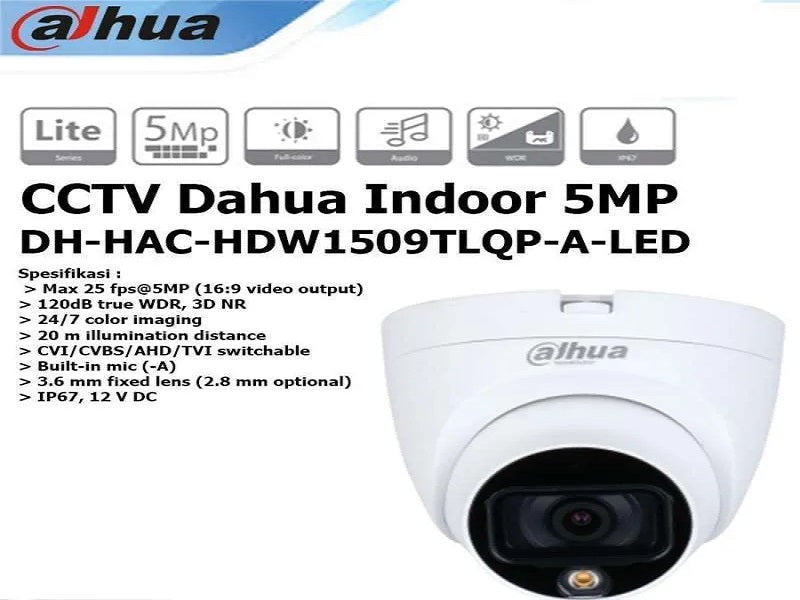

  • DAHUA DH-HAC-HDW1509TLQP-A-LED: High-Performance 5MP Eyeball Security Camera
  • 24/7 Color Imaging: Clear color video, day and night
  • Powerful Illumination: 20m illumination distance for extended visibility
  • Versatile Compatibility: CVI/CVBS/AHD/TVI switchable
  • Integrated Audio: Built-in mic (-A)
  • Lens Options: 3.6 mm fixed lens (2.8 mm optional)
  • Durable Design: IP67 rated, 12V DC power supply
  • Easy Installation: Quick-to-install eyeball design
  • Image Sensor: 5MP CMOS
  • Max. Resolution: 2880 (H) `d7 1620 (V)
  • Pixel Count: 5MP
  • Scanning System: Progressive
  • S/N Ratio: > 65 dB
  • Illumination Distance: 20m (65.61 ft)
  • Illuminator Control: Auto; manual
  • Illuminator Number: 1
  • Pan: 0`b0–360`b0
  • Tilt: 0`b0–78`b0
  • Rotation: 0`b0–360`b0
  • Lens
  • Lens Type: Fixed lens
  • Mount Type: M12
  • Focal Length: 2.8 mm; 3.6 mm
  • Max. Aperture: F1.0
  • 2.8 mm: H: 112`b0; V: 57`b0; D: 132`b0
  • 3.6 mm: H: 88`b0; V: 46`b0; D: 104`b0
  • Iris Type: Fixed iris
  • 2.8 mm: 1.6 m (5.25 ft)
  • 3.6 mm: 2.3 m (7.5 ft)
  • 2.8 mm Lens:
  • Detect: 67.4 m (212.3 ft)
  • Observe: 27.0 m (88.6 ft)
  • Recognize: 13.5 m (44.3 ft)
  • Identify: 6.7 m (22.0 ft)
  • 3.6 mm Lens:
  • Detect: 80.0 m (262.5 ft)
  • Observe: 32.0 m (105.0 ft)
  • Recognize: 16.0 m (52.5 ft)
  • Identify: 8.0 m (26.2 ft)
  • AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps
  • TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps
  • Cvbs: PAL: 960H; ntsc: 960H
  • BLC: blc/hlc/wdr/hlc-pro
  • WDR: 120 dB
  • White Balance: Auto; Area WB
  • Gain Control: Auto; manual
  • Noise Reduction: 3D NR
  • Smart Light: Yes
  • Mirror: Off/On
  • Privacy Masking: Off/On (8 areas, rectangle)
  • CE: EN55032, EN55024, EN50130-4, EN60950-1
  • UL: UL60950-1 + can/csa C22.2 no.60950-1
  • Video Output: CVI/TVI/AHD/CVBS via one BNC port
  • Audio Input: One channel built-in mic (-A)
  • Power Supply: 12 V `b130% DC
  • Protection Grade: IP67
  • Net Weight: 0.24 Kg (0.53 lb)
  • Gross Weight: 0.37 Kg (0.82 lb)

Frequently Bought Together Frequently bought

Product Information

Categories Dahua / Security & Surveillance
Brand Dahua
Model DH-HAC-HDW1509TLQP-A-LED
Image Sensor 5MP CMOS
Resolution 2880 x 1620
Frame Rate 25 fps @ 5MP
Lens 3.6 mm fixed (2.8 mm optional)
WDR 120 dB true WDR
Min Illumination 0.001 Lux/F1.0
Illumination Distance 20 m
Signal Output CVI/CVBS/AHD/TVI switchable
Audio Built-in microphone
Power Supply 12V DC
Power Consumption Max 4.4 W
Protection Grade IP67
Dimensions 97.1 mm x 91.4 mm
Weight 0.24 kg
Barcode 6923172520012
