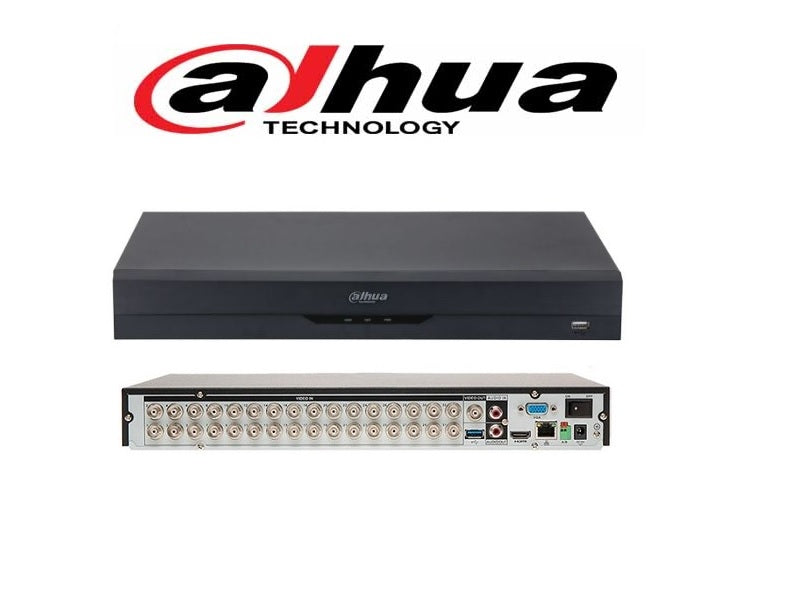

DAHUA Dvr 32Ch 2Hdd Upto 1080P

32 Channels Penta-brid 1080N/720P 1U 2HDDs WizSense Digital Video Recorder. > H.265+/H.265 dual-stream video compression.

Key features

• > Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
• > Max 16 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.
• > Up to 16 channels video stream (analog channel) SMD Plus.
• > Long transmission distance over coax cable.
• Embedded Linux
• Web; Local GUI
• SMD Plus
• SMD Plus by Recorder
• Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
• 32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
• 16 channels (analog channels are converted to IP channels)
• incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
• Encoding Capacity
• the 1st channel 1080N/720P (1 fps–25/30 fps), others
• 1080N/720P (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps)
• Dual-stream
• Yes
• VGA: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
• HDMI: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
• Third-party Camera Access
• Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
• Compression Standard
• Http; https; TCP / IP; ipv4; rtsp; UDP; smtp; NTP; dhcp; DNS; ddns; P2P
• Mobile Phone Access
• iOS, Android
• Interoperability
• Browser
• Single-address mode
• Recording Playback
• Record Mode
• General, motion detection; intelligent; alarm
• Backup Method
• Playback Mode
• Instant playback, general playback, event playback, tag playback, smart playback
• Disk Group
• Alarm
• Motion detection, video loss, tampering
• Anomaly Alarm
• No disk, storage error, low space, offline, IP conflict, MAC conflict
• Alarm Linkage
• Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
• Two-way Talk
• Yes (share the same audio input with the first channel)
• 2 SATA ports, up to 16 TB, the maximum HDD capacity varies with environment temperature
• 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
• Hdmi
• VGA
• 1U, 375.0 mm `d7 289.4 mm `d7 53.0 mm (14.76" `d7 11.40" `d7 2.09" ) (W `d7 D `d7 H)
• 433.0 mm `d7 141.0 mm `d7 366.0 mm (17.05" `d7 5.55" `d7 14.41") (W `d7 D `d7 H)
• –10 `b0C to +55 `b0C (14 `b0F to +131 `b0F)
• Installation
• Desktop

Specifications

• > Supports 8-channel AI-Coding.
• 16 channels:
• HDCVI 1080P@ 25/30 fps, 720P@ 25/30 fps
• AHD 1080P@ 25/30 fps, 720P@ 25/30 fps
• TVI 1080P@ 25/30 fps, 720P@ 25/30 fps
• Up to 16 channels of IPC access
• Sub steram: CIF (1 fps–7 fps)
• 32 kbps–6144 kbps per channel
• 8 kHz, 16 bit
• 64 kbps
• 1 hdmi, 1 VGA, 1 TV
• 1/4/8/9/16/25/36
• AI Coding; H.265+; H.265; H.264+; H.264
• G.711A; g.711u; PCM
• Onvif 21.06, CGI
• Chrome, IE9 or above, Firefox
• 1/4/9/16
• 1 channel
• 1-channel RCA (external)
• 32-channel BNC (coaxial audio)
• 1, RCA
• RS-485
• 1
• 1 (10/100/1000 Mbps Ethernet port, RJ-45)
• 12 VDC, 4 A
• Lower than 12 W (without HDD)
• 1.92 kg (4.23 lb)
• 3.09 kg (6.81 lb)
• 0%–90% (RH)
