DSC Power Series Neo Hsm2108
DSC Power Series Neo Hsm2108
GENERAL
R 349
Estimated delivery
2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
Out of stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description

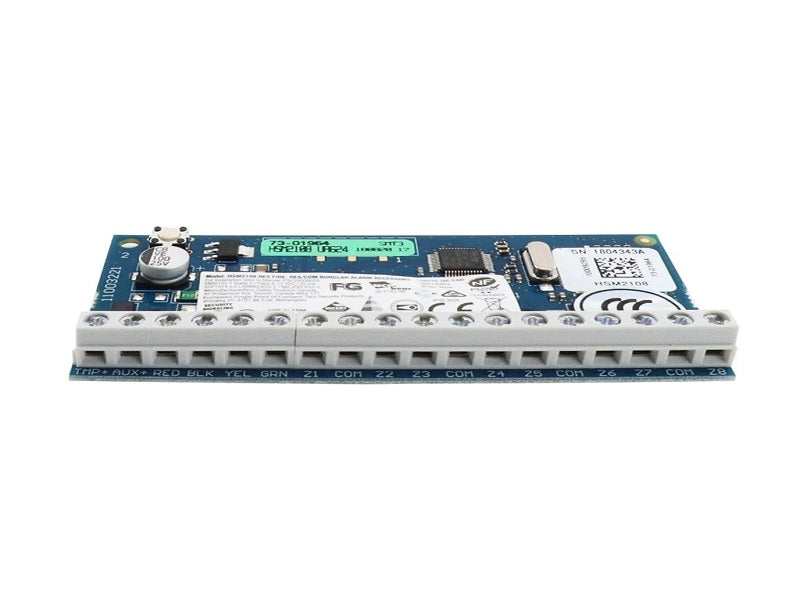

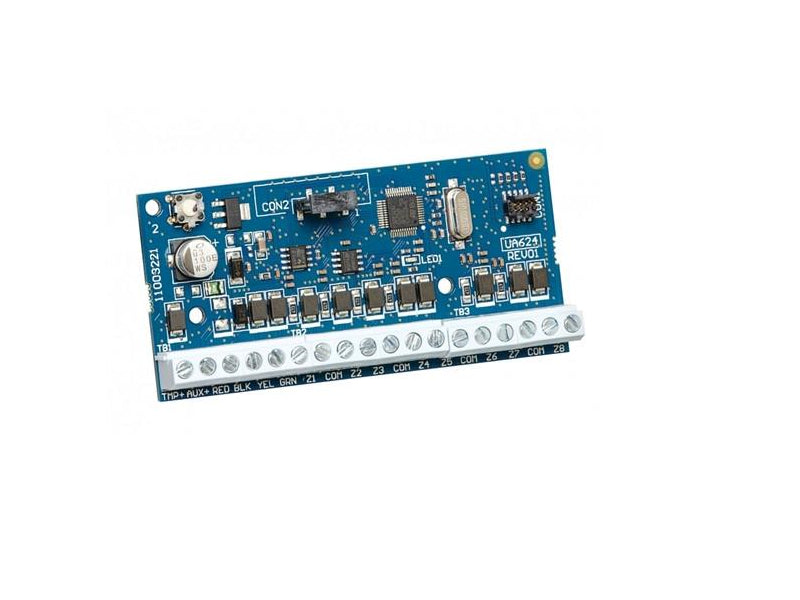

The HSM2108 is an 8-Hardwired zone expander that you can add to your DSC NEO security system if you need more hardwired zones than the initial zones that are on your main control panel. You can install the 2108 in the main cabinet or if you don't have room there then you can use one of DSC's expansion cabinets. This expander will connect to your DSC NEO's BUS terminals (Keypad connections) and it is compatible with the HS2016, HS2032, HS2064 and the HS2128. Temperature range: -10 C to 55 C (0 C to 49 C for UL/ULC listed systems).
Key features
- DSC PowerSeries NEO HSM2108 8-Hardwired Zone Expander Module
- Input rating: 10.8 to 12.5 VDC/130 mA (provided by the alarm controller or separate power supply)
- Resettable fuse (PTD) used on circuit board instead of replaceable fuses
- Maximum wire length from alarm panel: 1000`/305m (22AWG)
Specifications
- 8 zone expander
- Relative Humidity: 93% non condensing
- Board current draw: 40 mA
- Board dimensions: 45mm x 92mm
- VAUX output ratings: 10.8 to 12.5 VDC
Frequently Bought Together Frequently bought
Product Information
| Categories | General / Security & Surveillance |
| Brand | DSC |
| Model | HSM2108 |
| Type | 8-Hardwired Zone Expander Module |
| Compatibility | HS2016, HS2032, HS2064, HS2128 |
| Temperature Range | -10 C to 55 C |
| Humidity | 93% non-condensing |
| Input Rating | 10.8 to 12.5 VDC / 130 mA |
| Current Draw | 40 mA |
| Dimensions | 45mm x 92mm |
| VAUX Output | 10.8 to 12.5 VDC |
| Max Wire Length | 1000 ft / 305 m (22 AWG) |
| Barcode | 80006934 |
