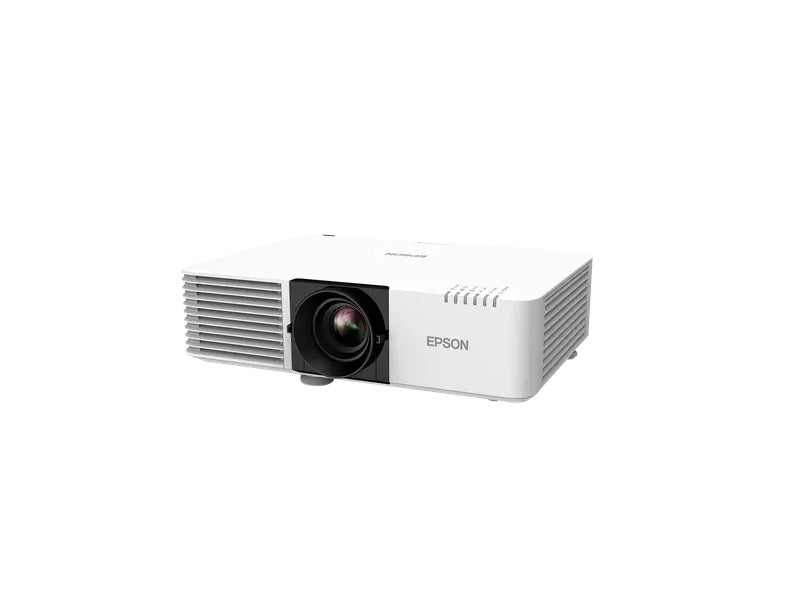

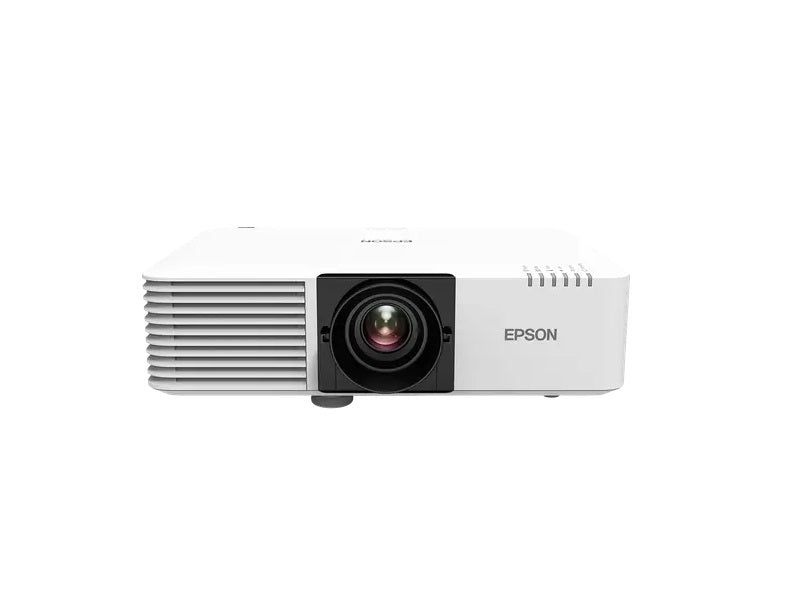

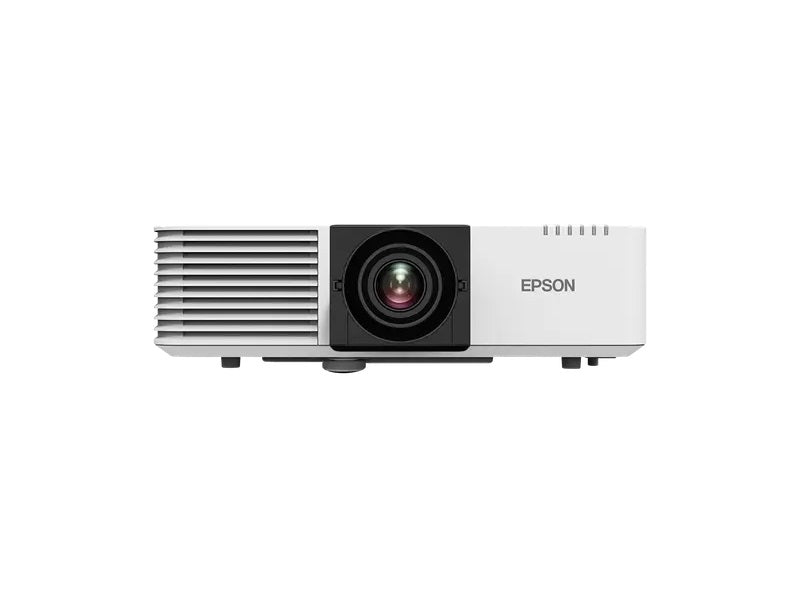

Epson EB-L520U - WUXGA laser display

Color Light Output 5.200 Lumen- 3.640 Lumen (economy) In accordance with IDMS15.4. White Light Output 5.200 Lumen - 3.640 Lumen (economy) In accordance with ISO 21118:2020.

Key features

• High brightness, scalable size
• Provides 5,200 lumens high-brightness display at up to 500"
• Full HD, supports 4K input, edge-blending and geometric correction
• Unrestricted viewing
• Free from pixilation, glare, fingerprints and a central bevel
• Social distancing support
• Scalable display meets the needs of every audience configuration
• Plug, click and collaborate
• Collaborate using Epson’s wireless presentation system - ELPWP10
• Technology
• Projection System 3LCD Technology, RGB liquid crystal shutter
• Image
• Light source Laser
• Laser Light source 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction Manual vertical: `b1 30 `b0, Manual horizontal `b1 30 `b0
• 2D Vertical Refresh Rate 192 Hz - 240 Hz
• Optical
• Projection Lens Zoom Ratio 1,35 - 2,2 : 1
• Projection Lens Focal Length 20 mm - 31,8 mm
• Projection Lens Focus Manual
• Interfaces RS-232C, VGA in (2x), VGA out, HDMI in (2x), HDBaseT, Miracast (optional), Jack plug out, Jack plug in (2x), USB 2.0-A, USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional)
• Epson iProjection App Ad-Hoc / Infrastructure
• Security Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
• 2D Colour Modes Dynamic, Cinema, Presentation, sRGB, DICOM SIM
• Other features 21:9 aspect ratio support, A/V mute, Arc Correction, Built-in speaker, CEC compatible, Easy OSD pre-setting, Edge Blending, Long light source life, PC Free, Quick Corner, Screen share, Source function, Ultra-wide display (16:6), iProjection App
• Video Color Modes Cinema, Dynamic, Presentation, sRGB, DICOM SIM
• Projector control via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
• Power consumption 234 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 293 Watt (Normal Peak-mode), 223 Watt (Eco Peak-Mode), 0,3 Watt (Energy saving standby)
• Supply Voltage AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions 440‎ x 122 x 304 mm (Width x Depth x Height)
• Noise Level Normal: 31 dB (A) - Economy: 23 dB (A)
• Supported Temperature Storage -10`b0 C - 60`b0 C
• Supported Humidity Operation 20% - 80%, Storage 10% - 90%
• Included Software EasyMP Multi PC Projection
• Options Air filter, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP10, Wireless LAN unit, Wireless transmitter - ELPWT01
• What's in the box HDMI Cable, Power cable, Remote control incl. batteries, User guide, Warranty Documents
• Room Type / Application Boardroom, Home Cinema, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction
• Positioning Ceiling Mounted, Desktop, Floor, Wall Mounted
• Other

Specifications

• LCD Panel 0,67 inch with C2 Fine
• Resolution WUXGA
• Resolution Enhancement Full HD
• Aspect Ratio 16:10
• On-Screen Pixel Count 2,304,000
• Contrast Ratio 5.000.000 : 1
• Colour Video Processing 10 Bits
• Colour Reproduction Upto 1.07 billion colours
• Throw Ratio 1,35 - 2,20:1
• Zoom Manual, Factor: 1 - 1,6
• Lens Optical
• Screen Size 50 inches - 500 inches
• Projection Lens F Number 1,5 - 1,7
• Offset 27 : 1
• Product weight 7,7 kg
• Loudspeaker 10 Watt
• Colour White
• Warranty 36 months Carry in
