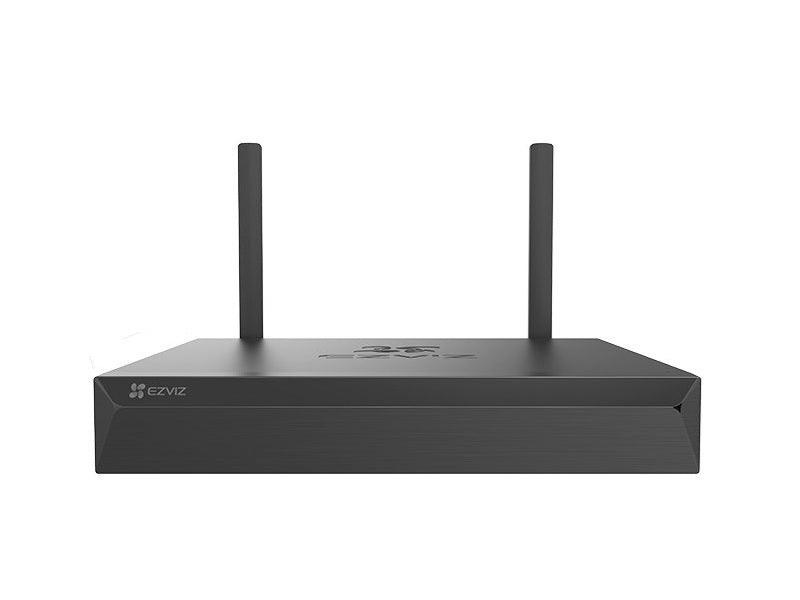

EZVIZ X5S Wireless 8Ch NVR

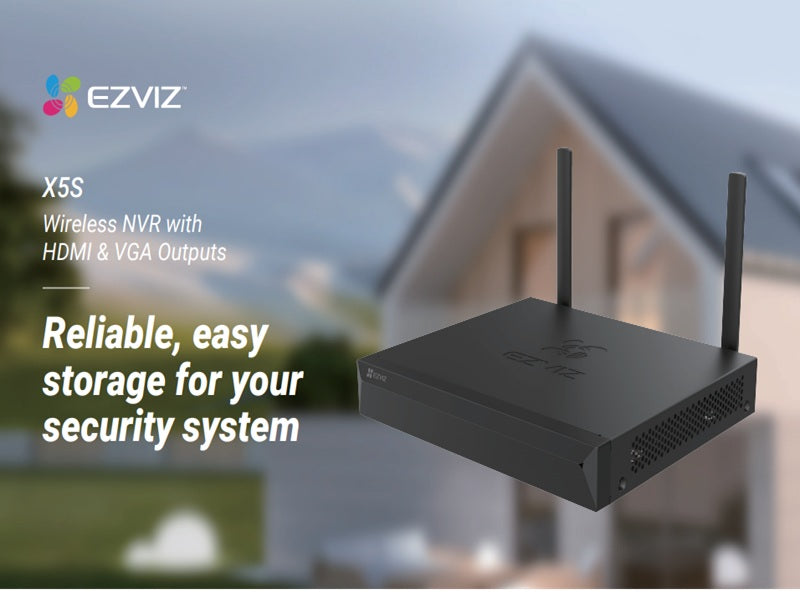

X5S - Wireless NVR with HDMI & VGA Outputs, Reliable, easy storage for your security system. The X5S is a large-capacity storage solution tailored to support multi-camera security systems for 24/7 recording in even high video quality. Users can confidently save and keep important footage on the local NVR device, which ensures smooth storage and strict data protection.

Key features

• Supports High-Resolution Cameras of Up to 3K Video Quality
• Wi-Fi Range Up to 100 m (300 ft)

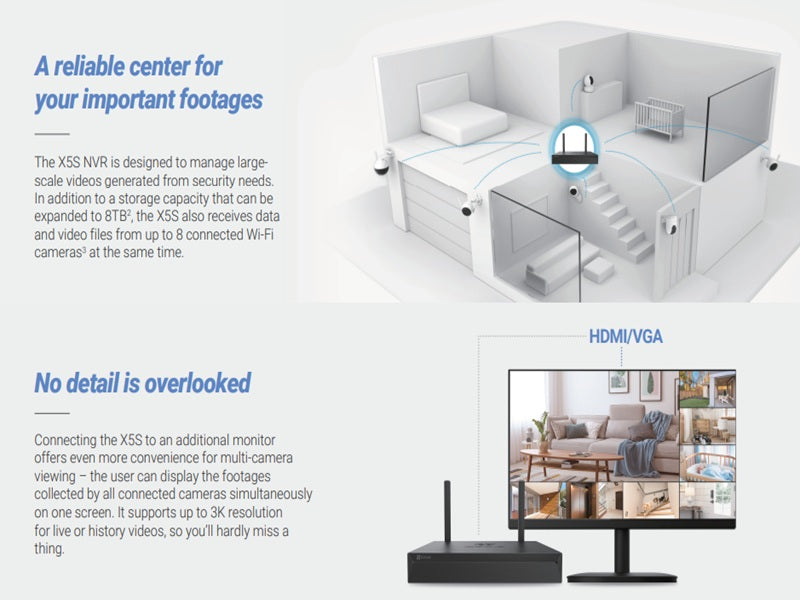

• A reliable center for your important footage
• The X5S NVR is designed to manage large-scale videos generated from security needs. In addition to a storage capacity that can be expanded to 8TB, the X5S also receives data and video files from up to 8 connected Wi-Fi cameras at the same time.
• No detail is overlooked
• Connecting the X5S to an additional monitor offers even more convenience for multi-camera viewing - the user can display the footage collected by all connected cameras simultaneously on one screen. It supports up to 3K resolution for live or history videos, so you'll hardly miss a thing.
• Use H.265 to store and play large files efficiently
• The X5S uses the H.265 video technology to compress high-resolution video files while maintaining the same video quality and smooth viewing experience for playbacks. You won't have to worry about large video files taking up too much of your storage space or being too big to load fast - the H.265 technology reduces their sizes by up to 50% and requires only 50% of the bandwidth when compared to H.264.
• Wired IPC Access Capability: 3K x4 (X5S-4W) / 3K x8 (X5S-8W)
• VGA 1 channel (identical to HDMI output) resolution up to 1920x1080/60Hz
• Recording Resolution 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
• Video Recording Mode Manual video recording; Motion detection recording; Scheduled video recording; Event-triggered recording
• Backup Mode Hard disk backup, Internet application backup
• Playback Mode Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback
• Audio Input/ Output Not support
• Hardware Reset Supports
• Product Dimensions 235 `d7 270 `d7 44.5 mm (9.25 `d7 10.6 `d7 1.75 inch)
• Packaging Dimensions 387 `d7 362 `d7 75 mm (15.2 `d7 14.3 `d7 3 inch)

Specifications

• Hdmi & Vga OutputR100-8W
• H.265 Video Technology
• Up to 8TB Storage
• Model: CS-X5S-R100-4W, CS-X5S-R100-8W
• Wireless/Wired IPC Access Capability 3K x4/3K x8
• Antenna Number 2
• Max Wireless Range 100m
• Radio Frequency 2.4G
• Ethernet Port One 10/100M adaptable Ethernet interface
• Required Access Bandwidth 50 Mbps/100 Mbps
• HDMI 1 channel resolution up to 2592x1944/30HZ
• Video Encoding H.265, H.264
• Decode Playback Supports 4x3K/Supports 8x3K
• Open Protocol Support HIKVISION, ONVIF (V.2.5)
• Interface Type One built-in SATA port
• Capability Supports 1TB to 8TB 3.5-inch HDD
• USB2.0 Interface 2
• DC 12V/1.5A
• Standby status 8W
• Net Weight 932 g
• 1 x X5S NVR
• 1 x Power Adapter
• 1 x Mouse
• 1 x Screw Kit
• 2 x Regulatory Information
• 1 x Quick Start Guide
