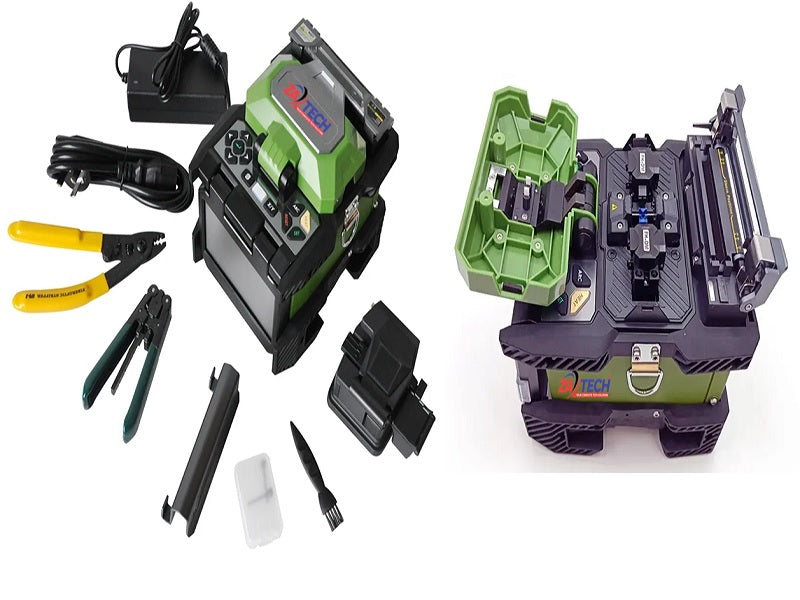

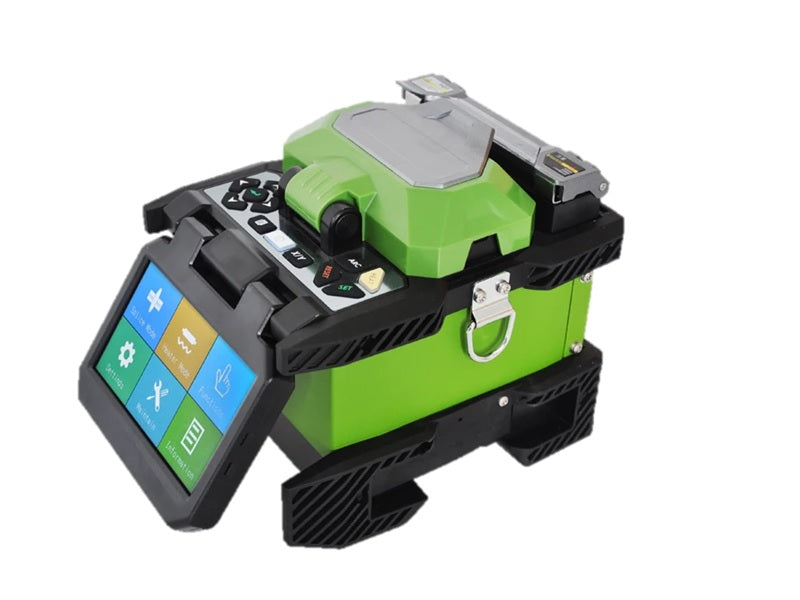

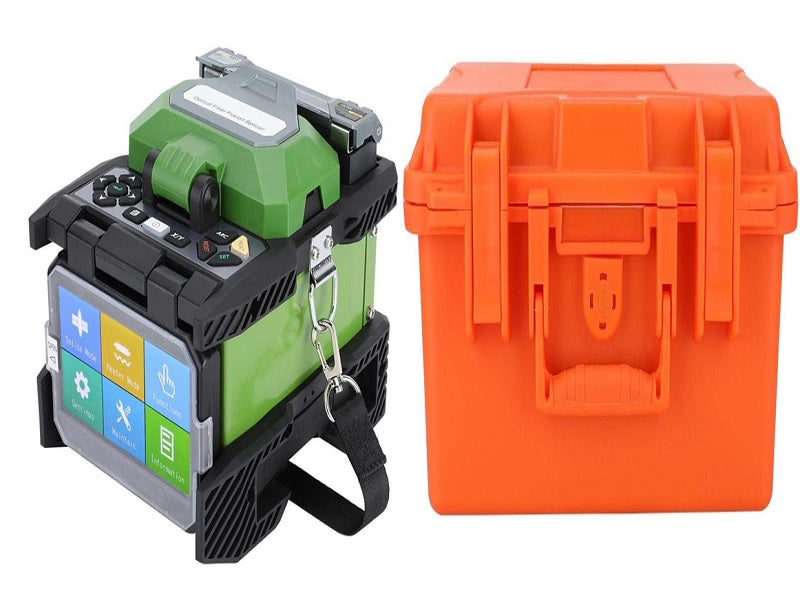

FIBRE Splicer & Cleaver Welding Machine

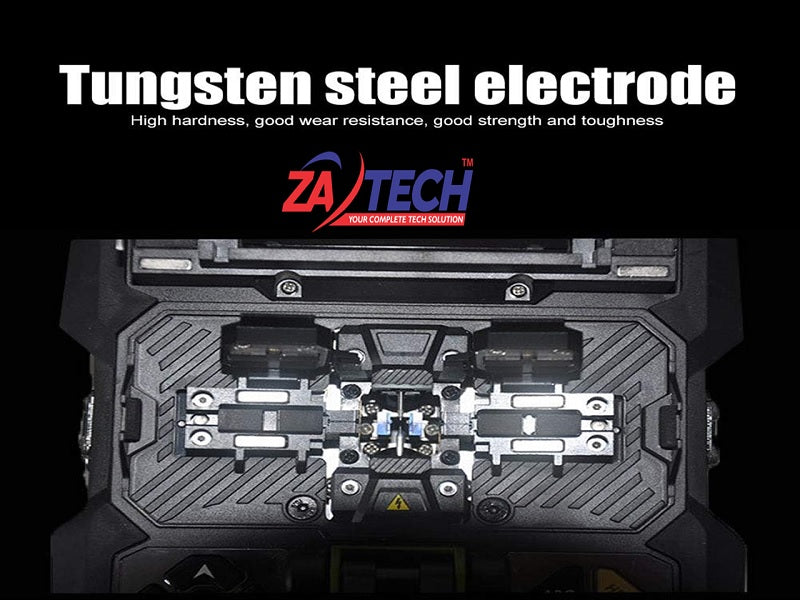

High-quality electrode with high hardness, good wear resistance, good strength and durability. The high-resolution LCD screen and high-strength protective panel simultaneously follow the optical fibers of the X and Y axis.

Key features

• Fast splitting in 7 seconds and efficient heating in 18 seconds, convenient to operate and easy to operate.
• 3-in-1 attachment for bare fibers, end fibers, bridge wires and rubber insulated fibre wires.
• Due to the use of a high-speed motor and a new technical method, the splitting and heat shrinkage times are significantly reduced. Small size, light weight, high reliability etc.
• Alignment method: precise alignment of the core and sheathing
• Applicable fibres: all common optical fibers, rubberized fibres and jumpers, which meet the requirements of ITU-TG.651-653, ITU-TG.655 and ITU-TG.657.
• Optical fiber diameter: sheath: 80~150`ecm, coating layer: 0.1~3mm.
• Cutting length: 5 ~ 16 mm (coated optical fiber diameter ≤ 250 `ecm); 10 mm (diameter of the coated optical fiber: 0.25-3 mm).
• Consumption (Typical Value) 0.02dB (SMF); 0.01dB(MMF); 0.04dB (DSF); 0.04dB Return Loss (NZDSF) Better than 60dBFusing Splicing Time (Typical Value): 7s
• Warm-up time (typical value): 18 s.
• Tensile force test: 1.96 ~ 2.25 N.
• Built-in drive motor: 4 motor.
• Heat shrink tube: 60 mm, 40 mm and a series of heat shrink tubes.
• Battery capacity: 11.1V, 6400mAh, typical value for splitting melting and thermal cycle is 220 times

Specifications

• Graphics display: high-performance 4.3-inch LCD display
• Magnification time: 320 times/88 times
• Fusion split dataset: 10000 groups
