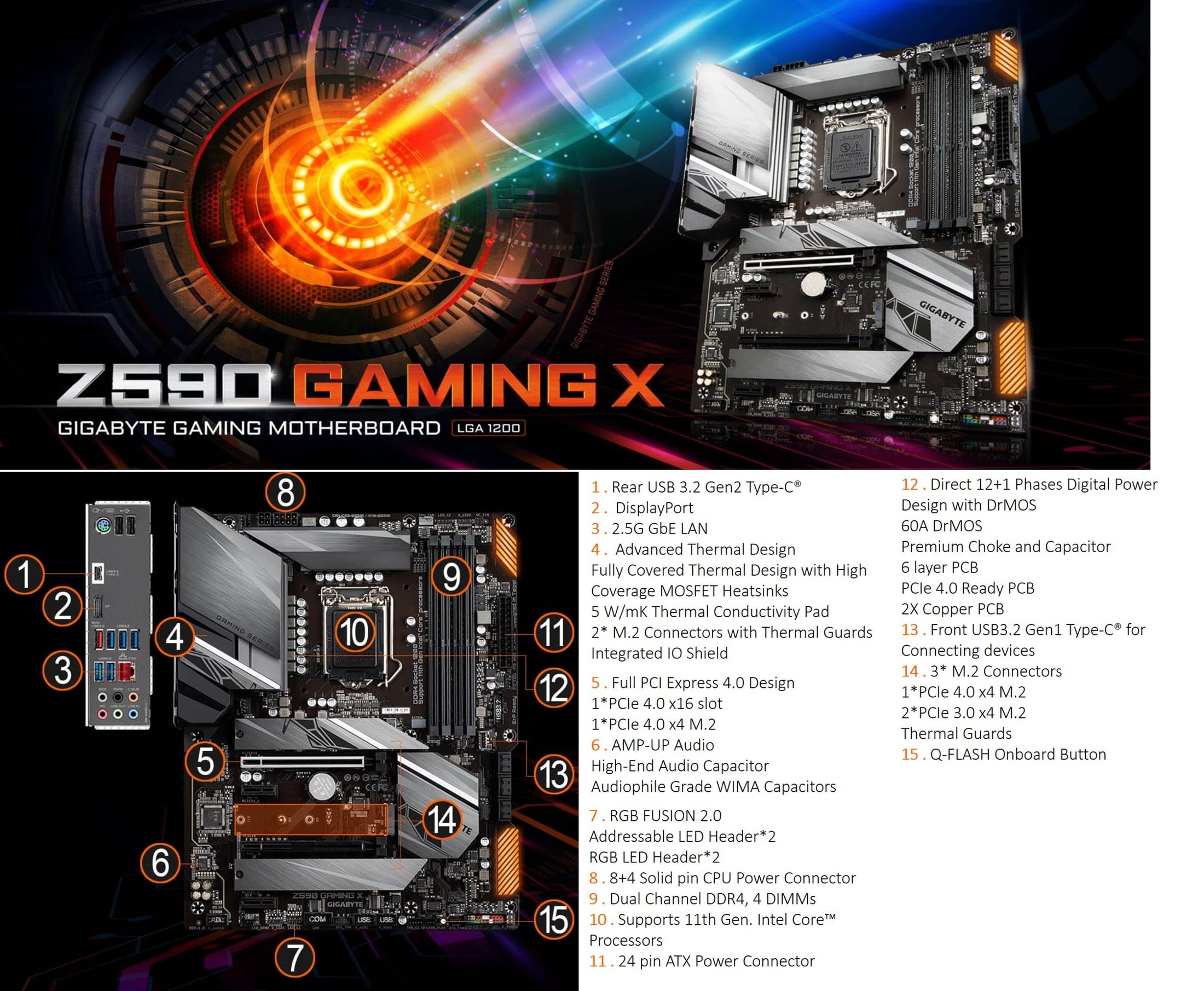

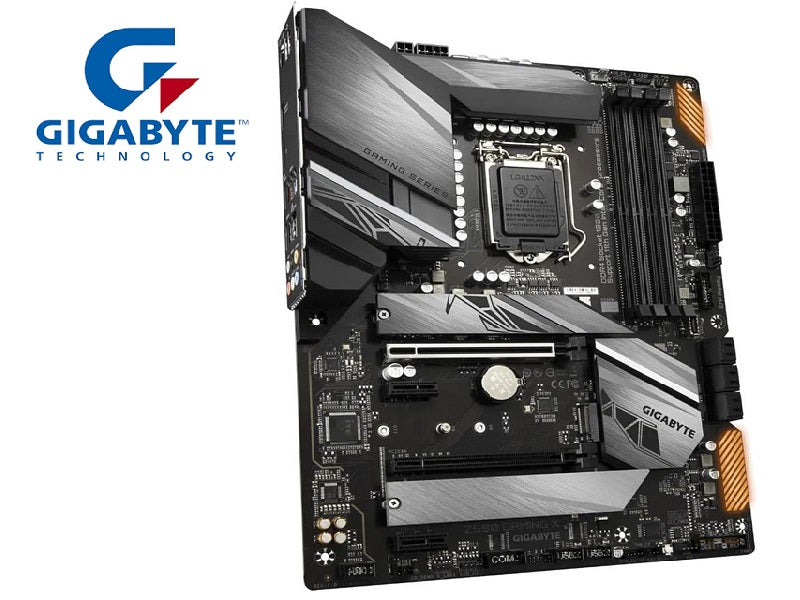

GIGABYTE Z590 Gaming X Motherboard Intel

Intel® Z590 GAMING Motherboard with Direct 12+1 Phases Digital VRM with DrMOS, Full PCIe 4.0* Design, Fully Covered Thermal Design with Integrated IO Armor, PCIe 4.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, USB 3.2 Gen2 TYPE-C® , RGB FUSION 2.0, Q-Flash Plus. Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards.

Key features

• GIGABYTE Z590 Gaming X LGA 1200 Socket Motherboard
• Supports 11th and 10th Gen Intel® Core™ Series Processors

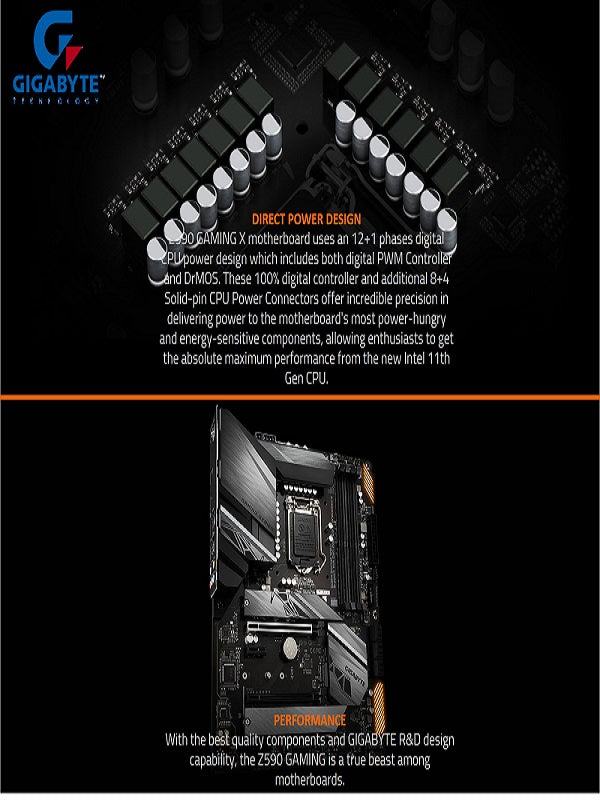

• Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
• Shielded Memory Routing for Better Memory Overclocking

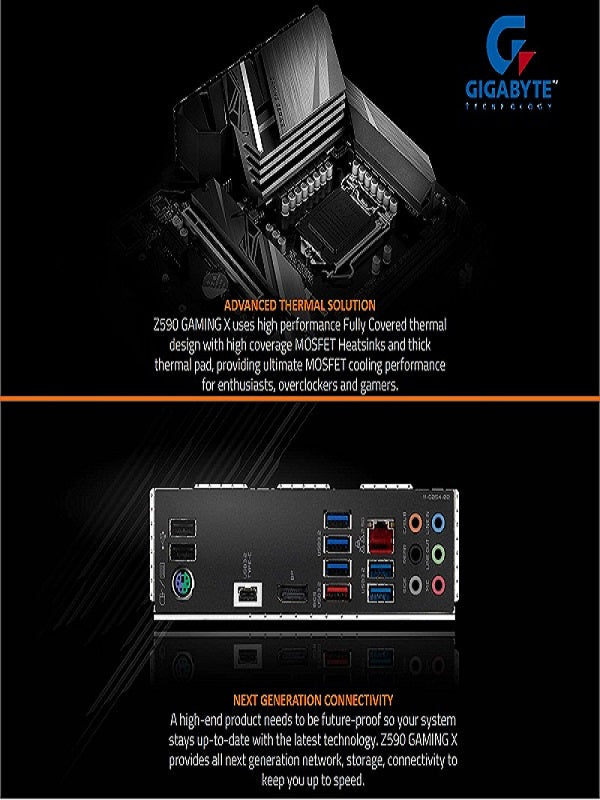

• Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
• Rear USB 3.2 Gen2 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting Devices
• Pre-installed IO Shield for Easy and Quick Installation
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Actual support may vary by CPU.
• CPU
• 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
• 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
• Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
• Chipset
• Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.)/ 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz.
• Support for DisplayPort 1.2 version and HDCP 2.3
• Realtek® Audio codec
• Support for S/PDIF Out
• Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)
• Expansion Slots
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
• Supported by 11th Generation processors only.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)
• Multi-Graphics Technology
• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
• 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB)
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready
• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2 support
• 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
• 1 x USB 3.2 Gen2 Type-A port (red) on the back panel
• 7 x USB 3.2 Gen1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• 1 x USB Type-C® header, with USB 3.2 Gen1 support
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• Back Panel Connectors
• 1 x USB Type-C® header, with USB 3.2 Gen2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Fan speed detection
• Fan fail warning
• Fan speed control
• Whether the fan speed control function is supported will depend on the cooler you install.
• Bios
• Use of licensed AMI UEFI BIOS
• Pnp 1.0a, DMI 2.7, wfm 2.0, SM bios 2.7, acpi 5.0
• Bundled Software
• Norton® Internet Security (OEM version)
• Form Factor

Specifications

• 10th/11th GEN socket/lga1200 core I7 ATX
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Fast 2.5GbE LAN with Bandwidth Management
• L3 cache varies with CPU
• Intel® Z590 Express Chipset
• 11th Generation Intel® Core™ i9/i7/i5 processors:
• 10th Generation Intel® Core™ i9/i7 processors:
• Support for DDR4 2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
• Support for DDR4 2666/2400/2133 MHz memory modules
• 2/4/5.1/7.1-channel
• 2 x PCI Express x1 slots
• 6 x SATA 6Gb/s connectors
• Chipset+ 2 USB 2.0 Hub:
• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 4 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 3 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button
• 1 x PS/2 keyboard/mouse port
• 1 x DisplayPort
• 5 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks
• Voltage detection
• Temperature detection
• 1 x 256 Mbit flash
• Realtek® 8125 Gaming LAN Bandwidth Control Utility
• Support for Windows 10 64-bit
• ATX Form Factor; 30.5cm x 24.4cm
