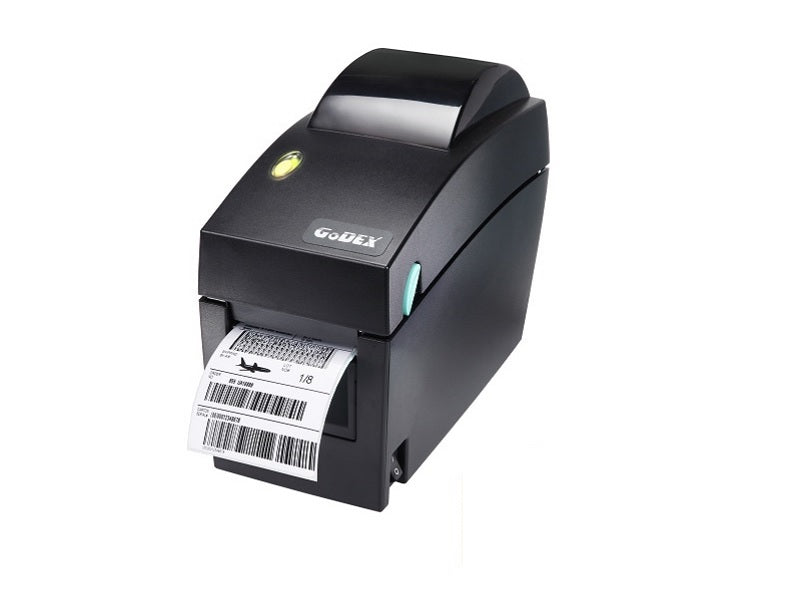

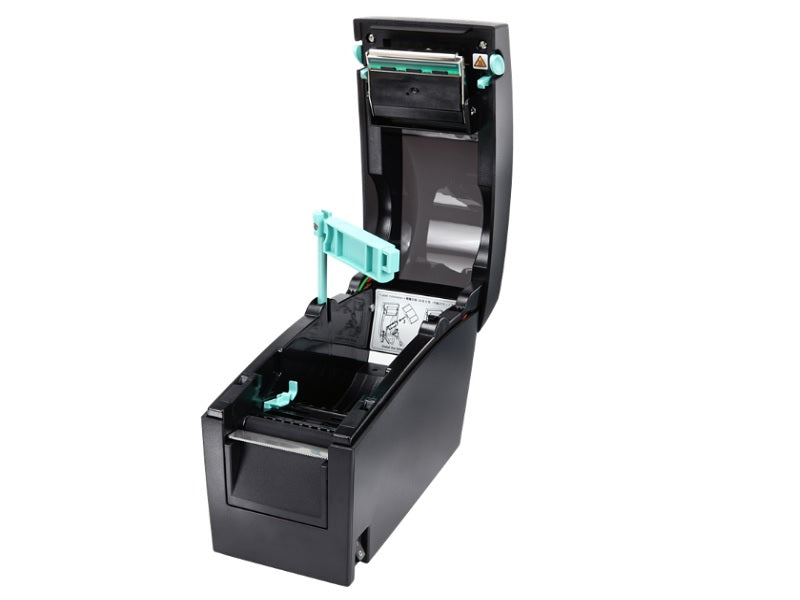

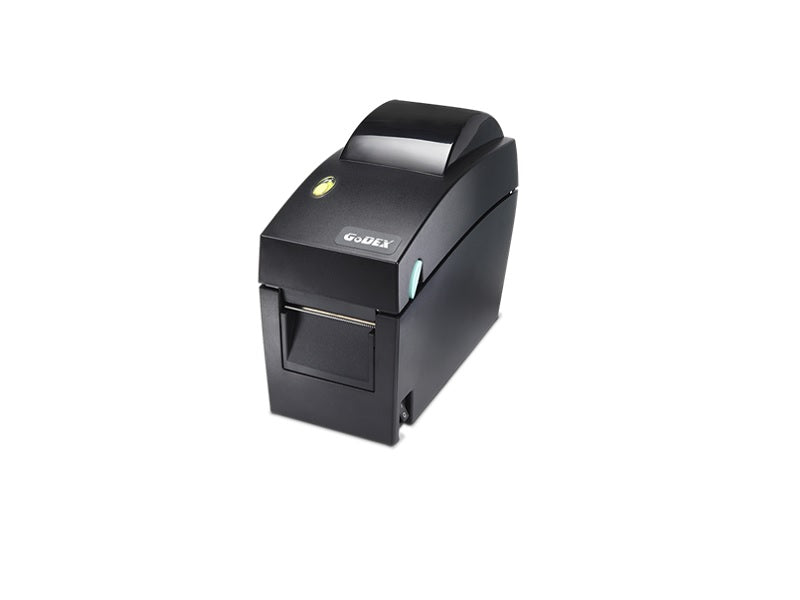

GODEX Direct Thermal Desktop Printer

The GoDEX DT2x is ultra-light, compact for best space utilization and support multiple communication ports; they are effective and multitasking for printing retail, warehouses, logistic & transportation, health care labels and tags. 16MB SDRAM and 4 MB Flash memory--including 2 MB user-available memory storage for downloadable objects.

Key features

• Supports Ethernet, Serial and USB ports
• Enhanced label feeding mechanism and instant label detection
• Free GoLabel label design software
• Print Method Direct Thermal
• Print Length Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
• Memory Flash: 4 MB Flash (2 MB for user storage)
• Sensor Type Fixed transmissive sensor and reflective sensor, central aligned
• Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
• Width: Min. 0.6” (15 mm) – Max. 2.36” (60 mm)
• Thickness: Min. 0.003” (0.06 mm) – Max. 0.008” (0.20 mm)
• Printer Language EZPL, GEPL, GZPL auto switch
• Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
• DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
• Resident Fonts Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
• Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
• Bitmap fonts 8 times expandable in horizontal and vertical directions
• TTF Fonts (Bold / Italic / Underline ). 0`b0,90`b0, 180`b0, 270`b0 rotatable
• Download Fonts Bitmap Fonts: Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
• Asian Fonts: 90`b0, 180`b0, 270`b0 rotatable and 8 times expandable in horizontal and vertical directions
• Barcodes 1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock
• 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code.
• Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
• Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
• Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
• Control Panel One Tri-color LED : Power (Green, Orange and Red)
• Real Time Clock Standard
• Power Auto Switching 100-240VAC, 50-60Hz.
• Agency Approvals CE (EMC), FCC Class A, CB, CCC, cUL

Specifications

• 203 DPI 7 IPS USB serial ethernet
• Print speed: Up to 7"/177 mm per second
• Resolution 203 dpi (8 dots/mm)
• Print Speed 7 IPS (177 mm/s)**
• Print Width 2.12” (54 mm)
• Processor 32 Bit RISC CPU
• Sdram: 16MB
• Label Roll Diameter: Max. 5” (127 mm)
• Core Diameter: 1” (25.4 mm), 1.5” (38.1mm)
• Software Label Design Software: GoLabel (for EZPL only)
• TTF Fonts: 90`b0, 180`b0, 270`b0 rotatable
• Unicode UTF8`a1`a2UTF16BE'a1`a2UTF16LE
• Interfaces USB 2.0
• Serial port: RS-232 (DB-9)
• IEEE 802.3 10/100Base-Tx Ethemet port (RJ-45)
• Function Key : FEED
• Environment Operation Temperature: 41`b0F to 104`b0F (5`b0C to 40`b0C)
• Storage Temperature : -4`b0F to 122`b0F (-20`b0C to 50`b0C)
• Humidity Operation: 30-85%, non-condensing.
• Storage: 10-90%, non-condensing.
