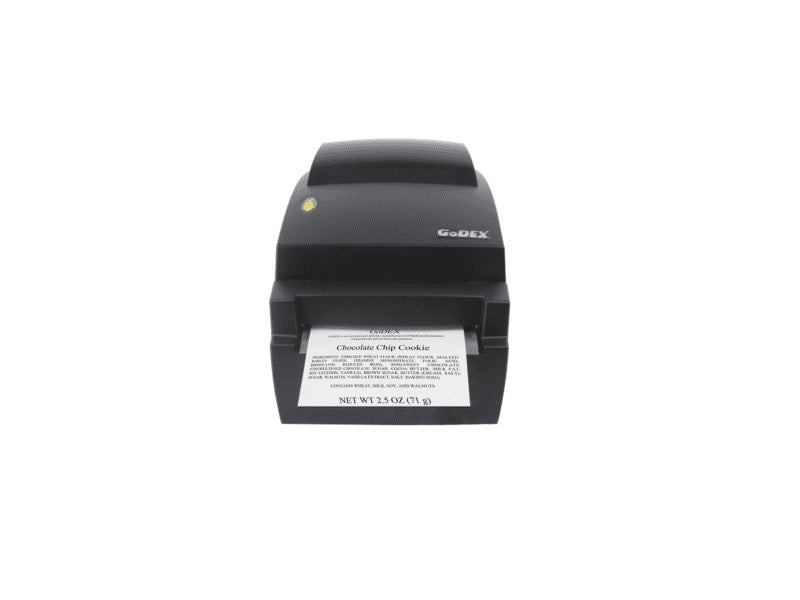

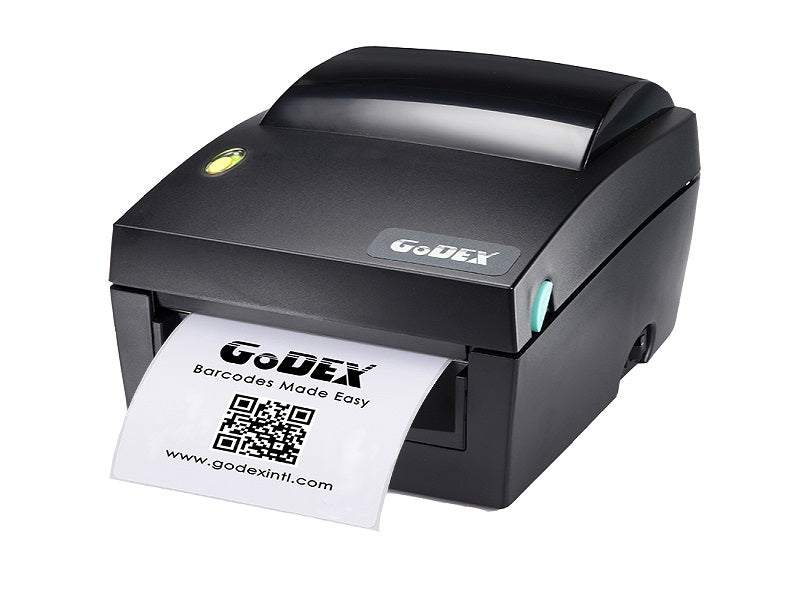

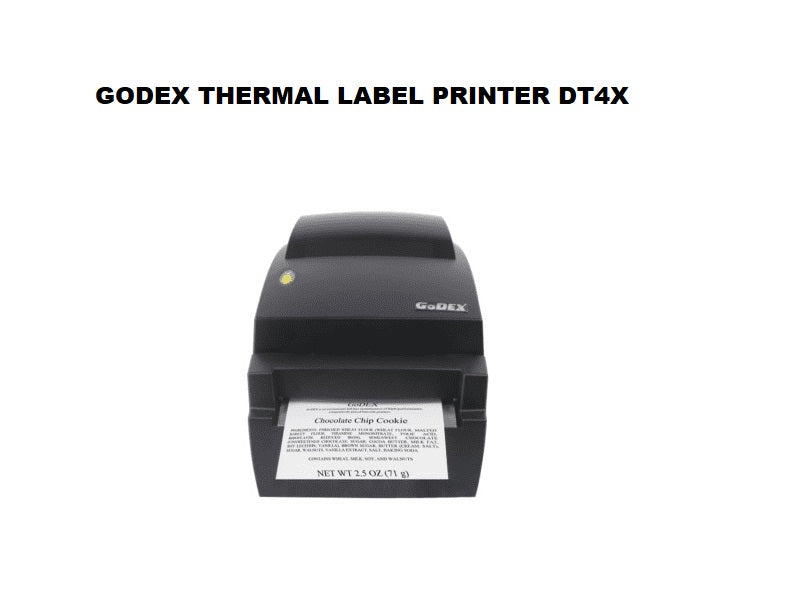

GODEX Direct Thermal Desktop Printer

Free GoLabel / QLabel software with database function makes it easy to design. Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming.

Key features

• Small space-saving design with wall mounted feature
• Print Method
• Direct Thermal
• Print Speed
• Print Width
• Print Length
• Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
• Flash: 8 MB Flash (4 MB for user storage)
• Adjustable reflective sensor
• Media
• Width: Min. 1” (25.4 mm) – Max. 4.64” (118 mm)
• Thickness: Min. 0.003” (0.06 mm) – Max. 0.008” (0.20 mm)
• Printer Language
• EZPL, GEPL, GZPL auto switch
• Software
• Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
• DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
• Resident Fonts
• Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
• Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
• Bitmap fonts 8 times expandable in horizontal and vertical directions
• TTF Fonts: TTF fonts (Bold / Italic / Underline ). 0`b0,90`b0, 180`b0, 270`b0 rotatable
• Download Fonts
• Bitmap Fonts: Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
• Asian Fonts: 90`b0, 180`b0, 270`b0 rotatable and 8 times expandable in horizontal and vertical directions
• Barcodes
• 1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock
• 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code.
• Code Pages
• Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
• Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
• Graphics
• Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
• Control Panel
• Real Time Clock
• Agency Approvals
• CE (EMC), FCC Class A, CB, CCC, cUL

Specifications

• 203 DPI 7 IPS USB serial ethernet
• GoDEX DT4x Direct Thermal Desktop Barcode Printer
• Godex 011-DT4252-00A
• Simple and economical 2.5” direct thermal printer
• Standard USB 2.0, serial port and Ethernet connections
• Auto language emulations: EZPL, GEPL and GZPL
• Resolution
• 203 dpi (8 dots/mm)
• 7 IPS (177 mm/s)**
• 4.25” (108 mm)
• 32 Bit RISC CPU
• Sdram: 16MB
• Sensor Type
• Label Roll Diameter: Max. 5” (127 mm)
• Core Diameter: 1” (25.4 mm), 1.5” (38.1mm)
• Label Design Software: GoLabel (for EZPL only)
• TTF Fonts: 90`b0, 180`b0, 270`b0 rotatable
• Unicode UTF8?UTF16BE?UTF16LE
• USB 2.0
• Serial port: RS-232 (DB-9)
• IEEE 802.3 10/100Base-Tx Ethemet port (RJ-45)
• One Tri-color LED : Power (Green, Orange and Red)
• Function Key : FEED
• Standard
• Auto Switching 100-240VAC, 50-60Hz.
• Operation Temperature: 41`b0F to 104`b0F (5`b0C to 40`b0C)
• Storage Temperature : -4`b0F to 122`b0F (-20`b0C to 50`b0C)
• Humidity
• Operation: 30-85%, non-condensing.
• Storage: 10-90%, non-condensing.
