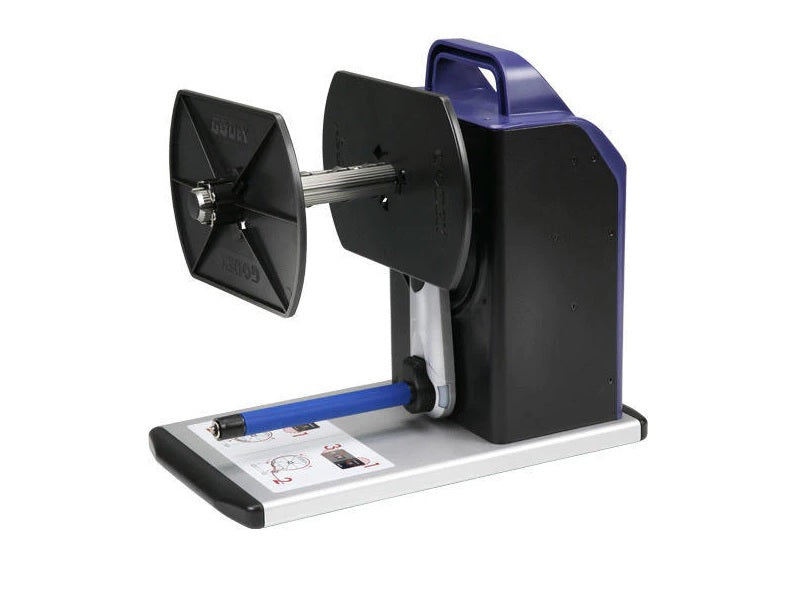

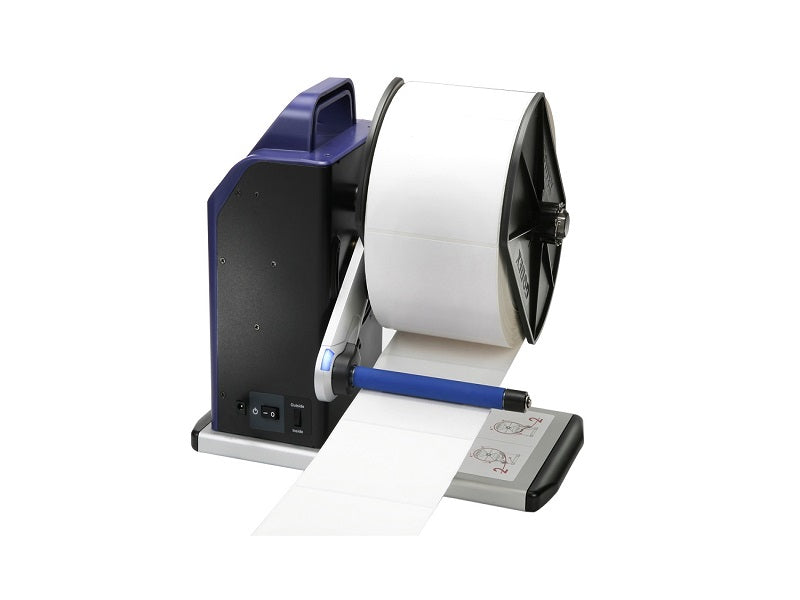

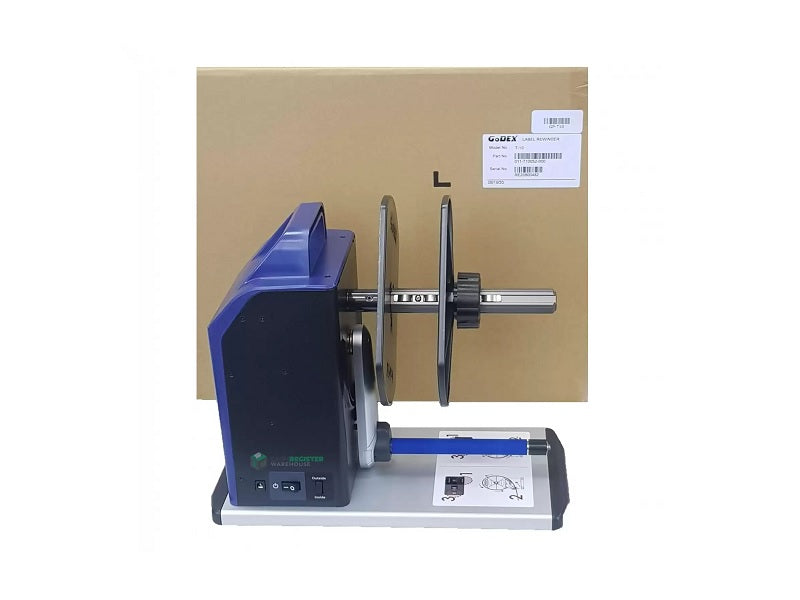

GODEX Label Rewinder 4" 60W Ea10681P-240

The Rewinder Everyone Can Use. The T10 rewinder has an idler arm that can be positioned to rewind labels from either side of the printer. Depending on the user’s requirements, the T10 can rewind "inside or outside" label rolls. Can be used with all Godex's printers.

Key features

• Introduction
• Feature
• Supports inside and outside label rewinding.
• Stylish appearance plus a rugged design for long term reliability
• Colored LED indicator provides rewinder operation status
• Support three Core Size: 1” (25.2 mm – 25.6 mm), 1.5” (40 mm – 40.6 mm) and 3" (76 mm – 76.6 mm); Core and coreless kits included.
• Paper Width Max. 120 mm (4.72”)
• Fixed: Coreless 5.4IPS / 1 inch Roll: 6.3IPS
• Label Roll Diameter Max. O.D. 203.2 mm (8”)
• Core Diameter Coreless
• I.D. 1” (25.2 - 25.6 mm)
• I.D. 1.5”x2 (37.4 - 38 & 40 - 40.6 mm)
• I.D. 3” (76 - 76.6 mm)
• Rewinding Label Inside / Label Outside
• Motor Hybrid Motor
• Agency Approvals CE, FCC Class A

Specifications

• Rewind Speed Auto mode: 14 IPS (max)
• Label Roll Weight 5 Kg (11 lbs)
• Power 100 - 240VAC 24W, 24V Adapter
• Environment Storage: -4`b0F to 140`b0F (-20`b0C to 60`b0C)
• Operation: 41`b0F to 104`b0F (5`b0C to 40`b0C)
• Humidity 10 - 85% (non-condensing RH)
• Dimension Length: 13.7” (349 mm)
• Height: 11.9” (303 mm)
• Width: 7.1” (180 mm)
• Weight 11 lbs (5 Kg), excluding consumables
