GODEX Thermal Tra…

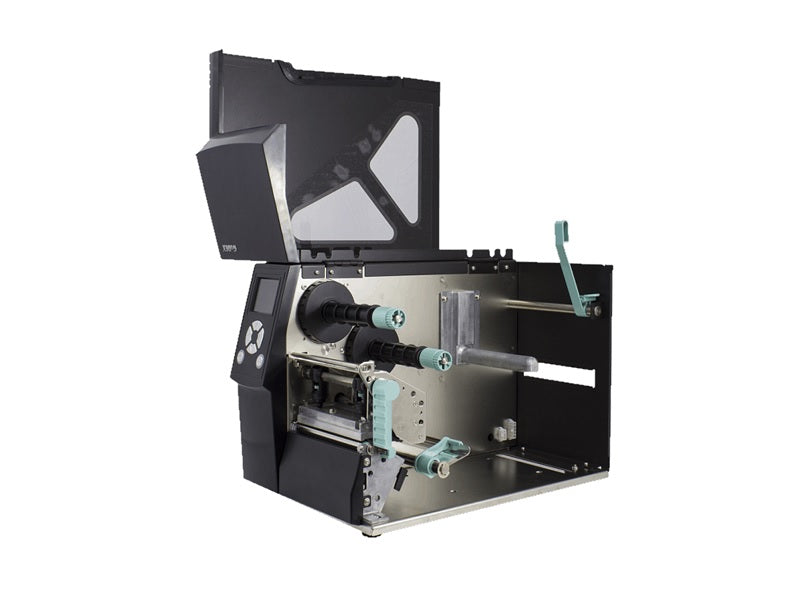

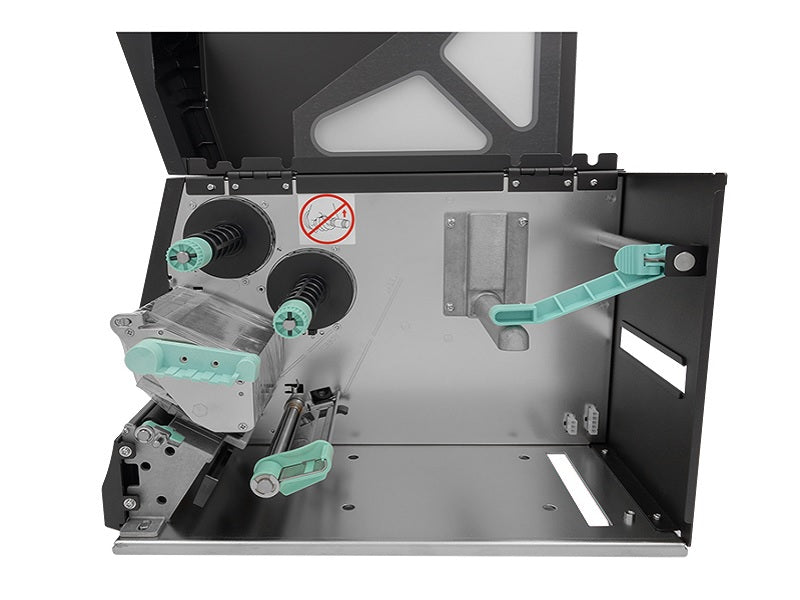

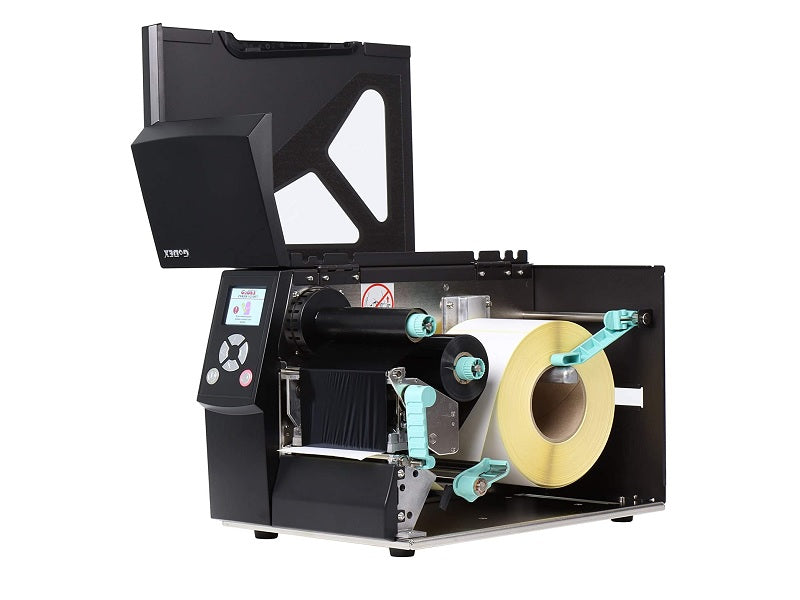

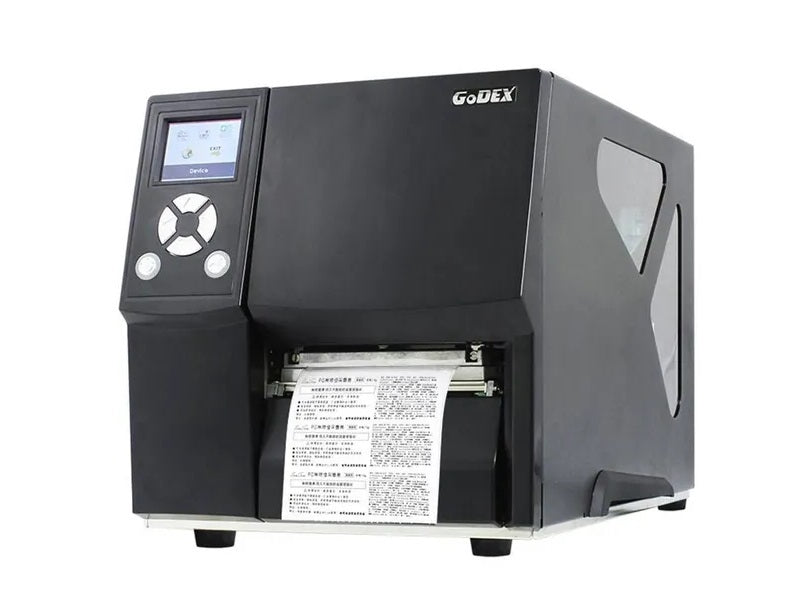

GODEX Thermal Transfer Industria Printer
GODEX Thermal Transfer Industria Printer
GODEX Thermal Transfer Industria Printer
GODEX Thermal Transfer Industria Printer

GODEX Thermal Transfer Industria Printer

GODEX
R 10,699
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 10,699

Description

USB2.0, USB host, Serial & parallel port, Ethernet, optional WIFI & Bluetooth module for multiple applications. 32 MB SDRAM and 128 MB Flash memory - including 60 MB available for user.

Key features

  • 203 DPI 6 IPS USB serial ethernet ZX420I
  • Wide range media type supporting
  • 203 dpi (8 dots/mm) resolutions; print speed is up to 6"/150 mm per second.
  • Supports 450 meter ribbon and 8 inch diameter label (3"core) available for bulk printing.
  • Free GoLabel label design software.
  • Print Method
  • Thermal Transfer / Direct Thermal
  • Print Speed
  • Print Width
  • Print Length
  • Min. 0.16” (4 mm)** ; Max . 157.44” ( 3999mm)
  • Flash 128 MB Flash (60 MB for user storage)
  • Adjustable reflective sensor and transmissive sensor, left aligned
  • Media
  • Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
  • Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm)
  • Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm)
  • Label roll diameter
  • Max. 8” (203.2 mm) with 3" (76.2 mm) core
  • Max. 6” (152.4 mm) with 1.5" (38.1 mm) core
  • Max. 5" (127 mm) with 1" (25.4 mm) core
  • Core diameter Min. 1 " (25.4 mm) – Max. 3" (76.2 mm)
  • Ribbon
  • Types Wax, wax/resin, resin
  • Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm)
  • Ribbon roll
  • Printer Language
  • EZPL, GEPL, GZPL auto switch
  • Software
  • Label design software
  • GoLabel (for EZPL only)
  • Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008? MAC? Linux
  • DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
  • Resident Fonts
  • Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
  • Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
  • Bitmap fonts 8 times expandable in horizontal and vertical directions
  • TTF Fonts (Bold / Italic / Underline ). 0`b0,90`b0, 180`b0, 270`b0 rotatable
  • Download Fonts
  • Asian Fonts 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)
  • 90`b0, 180`b0, 270`b0 rotatable and 8 times expandable in horizontal and vertical directions
  • TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0`b0,90`b0, 180`b0, 270`b0 rotatable
  • Barcodes
  • China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart
  • 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
  • Code Pages
  • Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
  • Graphics
  • Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
  • Control Panel
  • 1 Power on/standby button with green color LED backlight
  • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red)
  • Real Time Clock
  • Operation temperature 41`b0F to 104`b0F (5`b0C to 40`b0C)
  • Storage temperature -4`b0F to 140`b0F (-20`b0C to 60`b0C)

Specifications

  • GoDEX ZX420i Thermal Transfer Industrial Printer
  • GODEX 011-42i002-000
  • Resolution
  • 203 dpi (8 dots/mm)
  • 6 ips (152 mm/s)
  • 4.25" (108mm)
  • 32-bit RISC CPU
  • Sdram 32 MB
  • Sensor Type
  • Width
  • Cutter : Max. 4.61” (117 mm)
  • Dispenser / Rewind : Max. 4.64” (118 mm)
  • Length Max. 1476’ (450 m)
  • diameter 3” (76.2 mm)
  • Core diameter 1” (25.4 mm)
  • 1-D Bar Codes
  • Unicode UTF8?UTF16BE?UTF16LE
  • USB 2.0 (B-Type)
  • Serial port: RS-232 (DB-9)
  • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45)
  • Color TFT LCD with navigation button
  • 1 Calibration button at rear panel
  • Auto Switching 100-240V AC, 50-60Hz
  • Standard

Frequently Bought Together Frequently bought

Product Information

Categories Godex / Printers
Brand Godex
Model ZX420i
Print Method Thermal Transfer / Direct Thermal
Resolution 203 dpi (8 dots/mm)
Print Speed 6 ips (152 mm/s)
Print Width 4.25 inch (108 mm)
Processor 32-bit RISC CPU
Memory 128 MB Flash, 32 MB SDRAM
Ribbon Length Max 450 m
Label Roll Max 8 inch with 3 inch core
Interfaces USB 2.0, RS-232 Serial, Ethernet, USB Host
Power Auto Switching 100-240V AC, 50-60Hz
Operating Temperature 5 C to 40 C
Languages EZPL, GEPL, GZPL auto switch
Barcode 011-42i002-000
