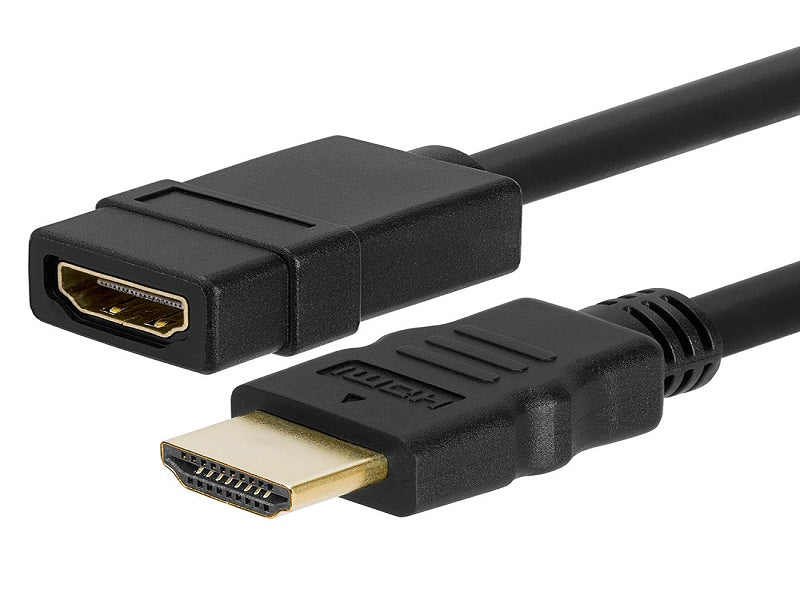

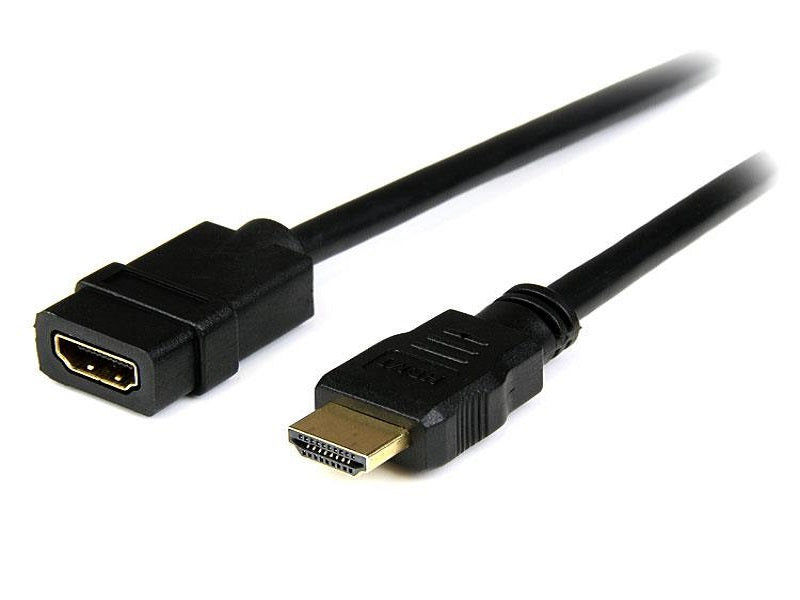

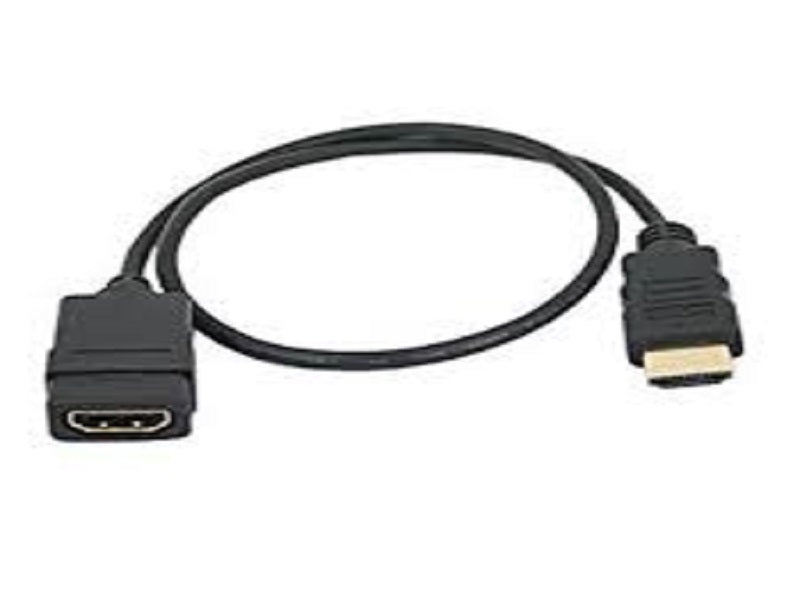

HDMI M/F Connector

Convenient way to extend that pre-existing cable when it's just not quite long enough. Low loss, heavy cable to keep from bottlenecking the signal transmission. Gold plated, corrosion resistant connectors. ROHS compliant. High quality, heavy duty, molded connector housings. Triple shielded design. UL listed. High-Definition Multimedia Interface (HDMI) is the first industry-supported, UNCOMPRESSED audio/video interface. This cable connects HDMI devices for DVD, satellite boxes, LCD, projectors, plasma and HDTVs. HDMI provides an interface between any HDMI-enabled audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor or projector.

Key features

• 50-foot HDMI Cable extension Male to Female Gold Plated
• HDMI supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements.

Specifications

• Connector Type: HDMI male to HDMI Female
• Connector Finish: Gold
• Length: 50ft
• # of conductors: 19
• Conductor Plating: Tin
• Shielding type: EMI
• Supported Resolutions: 480i to 1080p
• HDMI Certified: Yes
• HDCP Compliant: Yes
• CEC Compliant: Yes
• ROHS Compliant: Yes
• 1.3 Device Compatible: Yes
• Supports DVD Audio: Yes
• Supports SACD: Yes
• UL File #: E119932
• UL Style #: 20276
• VW-1: Yes
• Voltage Rating: 30V
• Shielding level: Triple
• Temperature Rating: 80`b0C
• Rated Bandwidth: tested to 165 Mhz
• Supports TrueHD & DTS-HD: Yes
