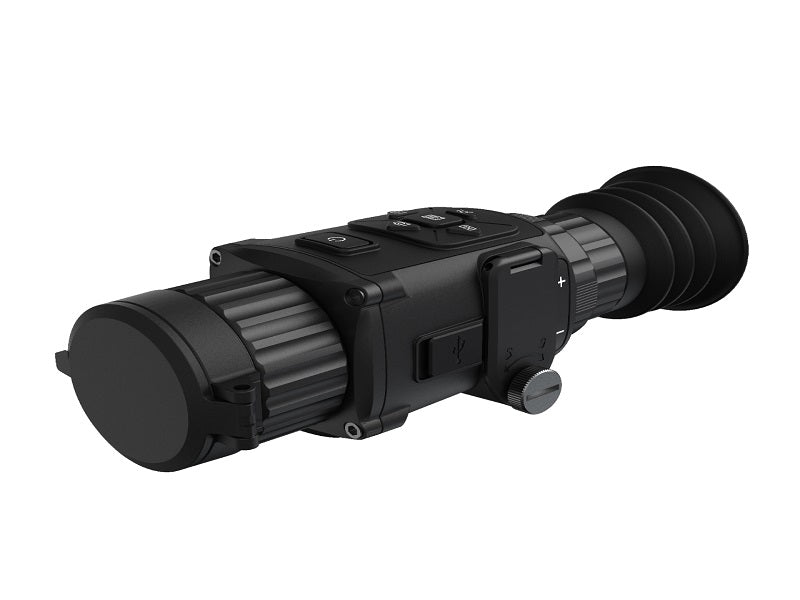

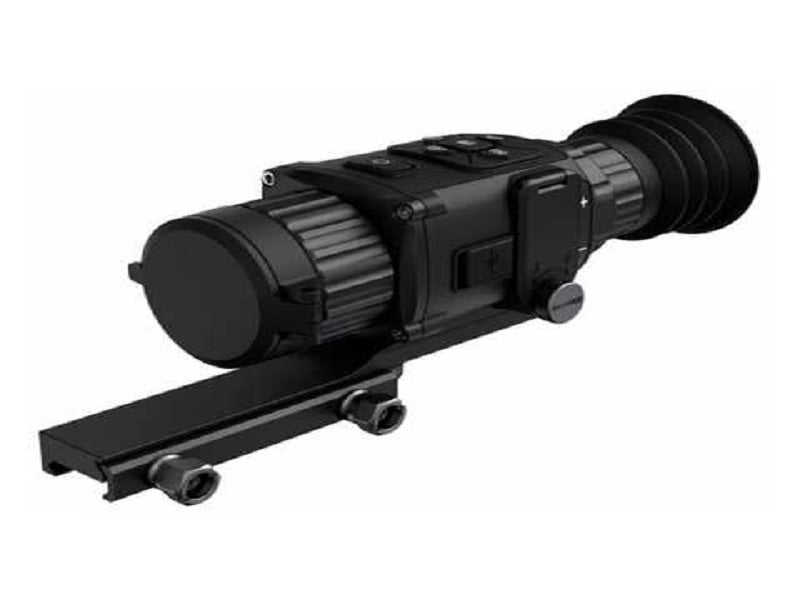

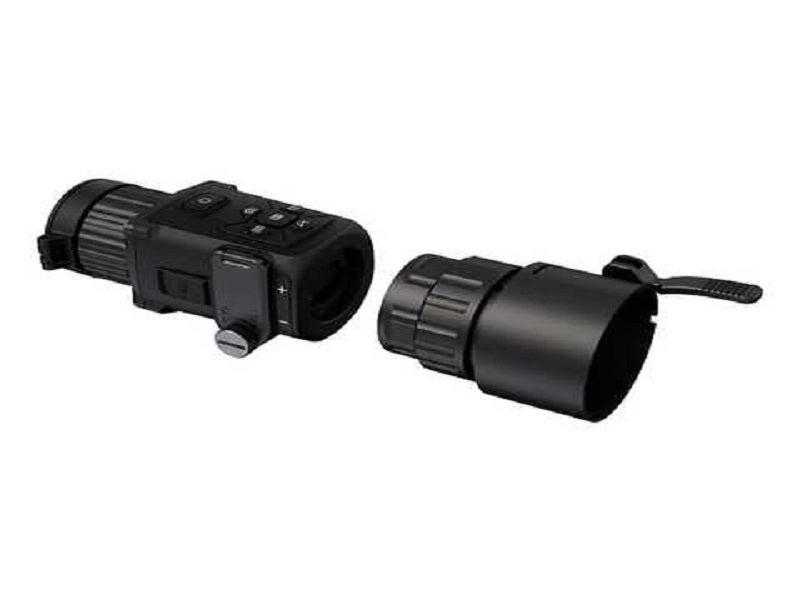

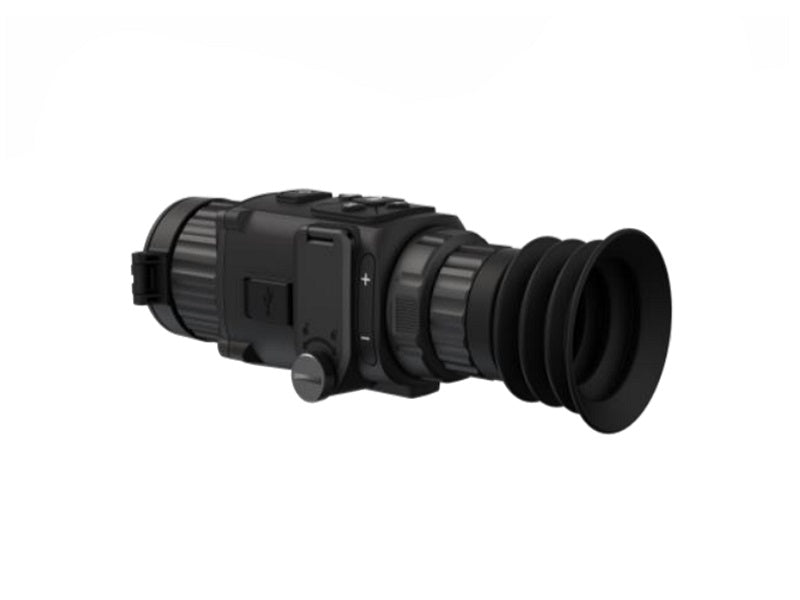

HIKMICRO Th35 Thermal Image Scope
HIKMICRO Th35 Thermal Image Scope
HIKMICRO
R 42,999
Estimated delivery
2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
Out of stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
384 `d7 288 thermal resolution, high sensitivity detector, NETD less than 35 mk (25 `b0C,F#=1.0). Supports digital zoom and cursor function, palettes of color adjustable.
Key features
- Thermal telescope
- Supports distance measurement, and hotspot function
- Supports video recording and snapshot, built-in EMMC (16 GB)
- Thermal Module
- Image Sensor
- VOx Uncooled Focal Plane Arrays
- Max. Resolution
- Frame Rate
- Pixel Interval
- Response Waveband
- Netd
- Ifov
- Field Of View
- Magnification
- Monitor
- Yes
- Palettes
- Black hot, white hot, red hot, fusion
- FFC (Flat Field Correction) Mode
- Auto, Manual, External Correction
- Digital Zoom
- Crosshair
- DPC
- DDE
- Exit Pupil
- Eye Relief
- Observation Distance
- Max. 1235 m
- Smart Function
- Hot Track
- Capture Snapshot
- Cursor
- Scene Mode
- Jungle, Recognition
- Lithium battery
- Anti-Reverse Battery Connection
- Overvoltage Protection
- Replaceable
- Work Temperature/Humidity
- From -20 `b0C to 55 `b0C (-4 `b0F to 131 `b0F); Humidity: 90% or Less
- Protection Level
- Vibration & Shock
- 0.415 kg (0.91 lb) without eyepiece and batteries
Specifications
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- 1024 `d7 768 resolution 0.39-inch OLED display
- Up to 4.5 hours continuous working
- 384`d7288
- 50Hz
- 17`ecm
- 8`ecm to 14`ecm
- Less than 35 mK (@25`b0C),F#=1.0
- Lens (Focal Length)
- 35mm
- 0.49 mrad
- 10.0`b0 `d7 8`b0
- Aperture
- F1.0
- 2.14X
- 0.39-inch, OLED, 1024 `d7 768
- Contrast Adjustment
- Brightness Adjustment
- 1X, 2X, 4X, 8X
- 3D DNR
- 6 mm
- 45 mm
- Distance Measurement
- Standby Mode
- Built-in EMMC (16 GB)
- Battery Type
- Battery Operating Time
- 4.5 h (25 `b0C, with hotspot off)
- 4 h (25 `b0C, with hotspot on)
- Applicable type: CR123A, RCR123A
- IP67
- 750 g/1 ms
- 186.6mm x 59.4mm x 67.1mm
Product Information
| Categories | Hikmicro / Security & Surveillance |
| Brand | Hikmicro |
| Model | TH35 |
| Type | Thermal Telescope |
| Thermal Resolution | 384×288 |
| Frame Rate | 50 Hz |
| NETD | <35 mK |
| Lens | 35 mm, F1.0 |
| Field Of View | 10.0° × 8° |
| Display | 0.39-inch OLED, 1024×768 |
| Digital Zoom | 1X, 2X, 4X, 8X |
| Observation Distance | Max. 1235 m |
| Storage | Built-in EMMC 16 GB |
| Connectivity | Wi-Fi Hotspot |
| Battery Type | CR123A / RCR123A Lithium |
| Battery Life | Up to 4.5 h |
| Protection Level | IP67 |
| Dimensions | 186.6 × 59.4 × 67.1 mm |
| Weight | 0.415 kg |
| Barcode | 6974004640118 |
