HIKVISION 16 Port

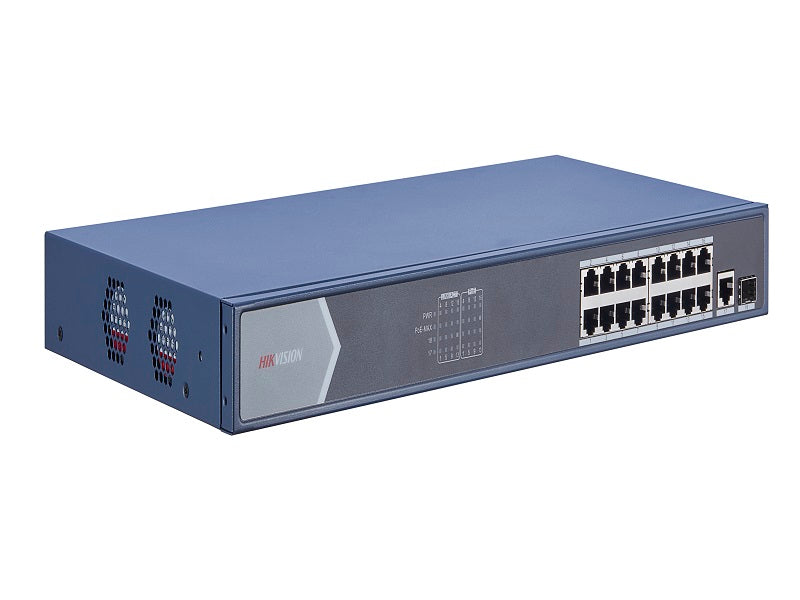

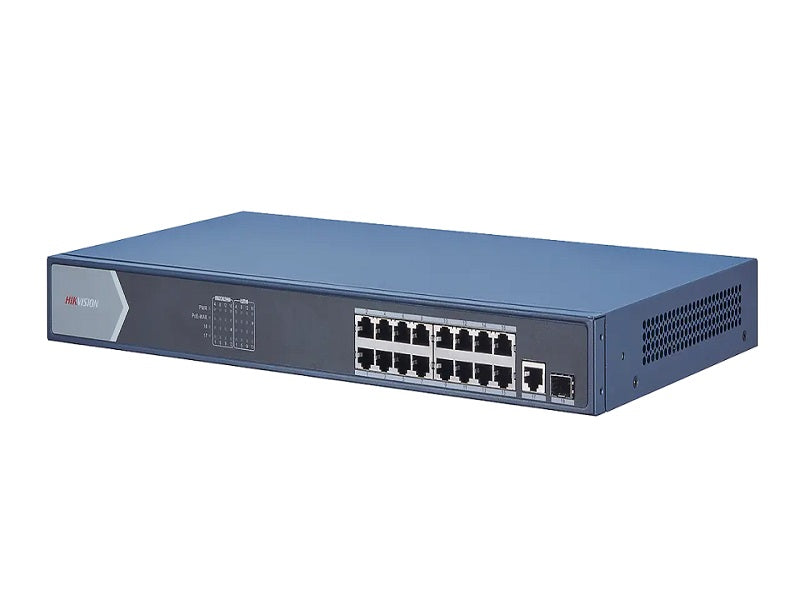

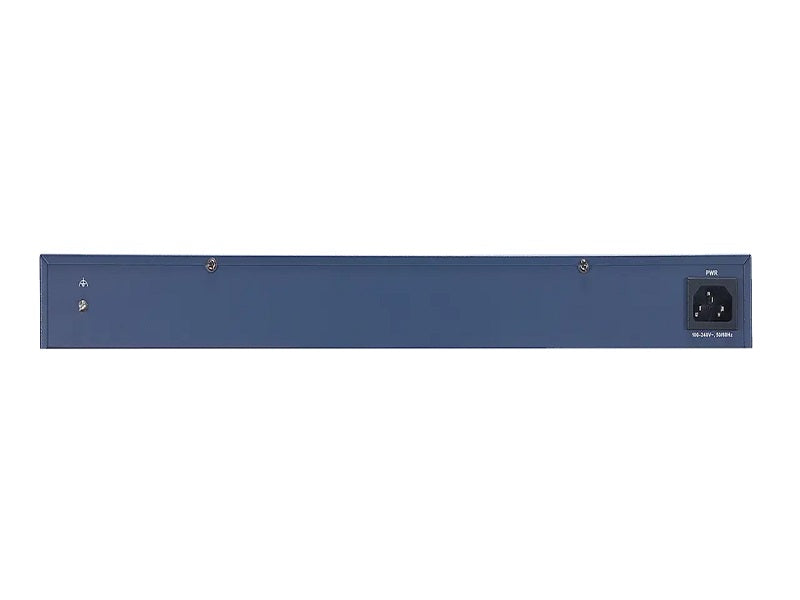

HIKVISION 16 Port Gigabit Poe Switch
HIKVISION 16 Port Gigabit Poe Switch
HIKVISION 16 Port Gigabit Poe Switch

HIKVISION 16 Port Gigabit Poe Switch

HIKVISION
R 4,399
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 4,399

Description

16 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port. IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available.

Key features

  • Layer 2 network switch designed for video data transmission
  • IEEE 802.3 af & at high POE power supply
  • Store-and-forward switching
  • Safe and reliable using 6 KV high surge protection
  • Plug and play ensures simplicity and convenience.
  • 16 `d7 Gigabit PoE ports, 1 `d7 Gigabit RJ45 port, and 1 `d7 Gigabit fiber optical port
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Forwarding Mode
  • MAC Address Table
  • Switching Capacity
  • Packet Forwarding Rate
  • Internal Cache
  • PoE Power Supply
  • PoE Standard
  • PoE Power Pin
  • PoE Power Budget
  • 440 mm `d7 44 mm `d7 220.8 mm (17.3” `d7 1.7” `d7 8.7”)
  • Shell
  • Metal material
  • 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
  • 40 `b0C to 85 `b0C (-40 `b0F to 185 `b0F)
  • 100 to 240 VAC, 50/60 Hz, Max. 4 A
  • Max. Power Consumption
  • Approval
  • EMC
  • FCC (ansi C63.4, 47 CFR part 15B); ce-emc/rcm (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ices-003: issue 11)
  • Safety
  • UL (UL 62368-1); cb/rcm (IEC 62368-1:2014); ce-lvd (EN 62368-1:2014+A11:2021)
  • Chemistry
  • CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2010)

Specifications

  • 16 Port Gigabit Unmanaged POE Switch
  • RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standard
  • 8 K
  • 36 Gbps
  • 26.784 Mpps
  • 4.1 Mbits
  • IEEE 802.3af, IEEE 802.3at
  • End-span: 1/2(-), 3/6(+)
  • Ports 1 to 16
  • 30 W
  • 230 W
  • Dimensions (W `d7 H `d7 D)
  • 3.53 kg (7.78 lb)
  • 2.67 kg (5.89 lb)
  • 5% to 95% (no condensation)
  • 20 W
  • 250 W

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Networking
Brand Hikvision
Ports 16 Gigabit PoE + 1 Gigabit RJ45 + 1 SFP
Standard IEEE 802.3af/at, 802.3ab/z
Forwarding Mode Store-and-forward
MAC Address Table 8 K
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.784 Mpps
PoE Power Budget 230 W (max 30 W/port)
Material Metal
Dimensions 440 x 44 x 220.8 mm
Weight 2.67 kg
Power Input 100-240 VAC, 50/60 Hz, Max 4 A
Power Consumption 250 W max
Barcode 6954273691103
