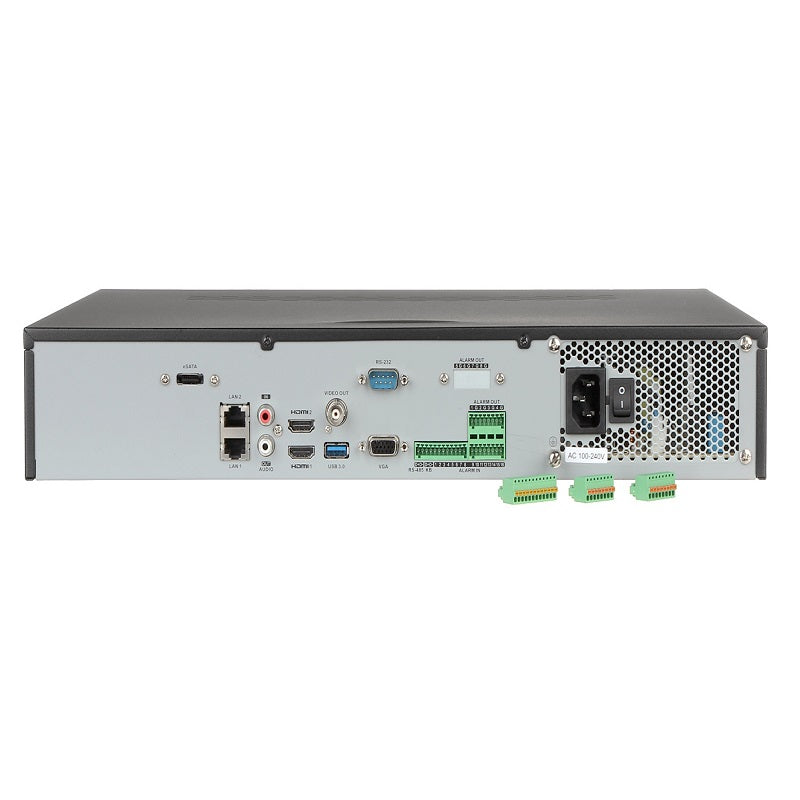

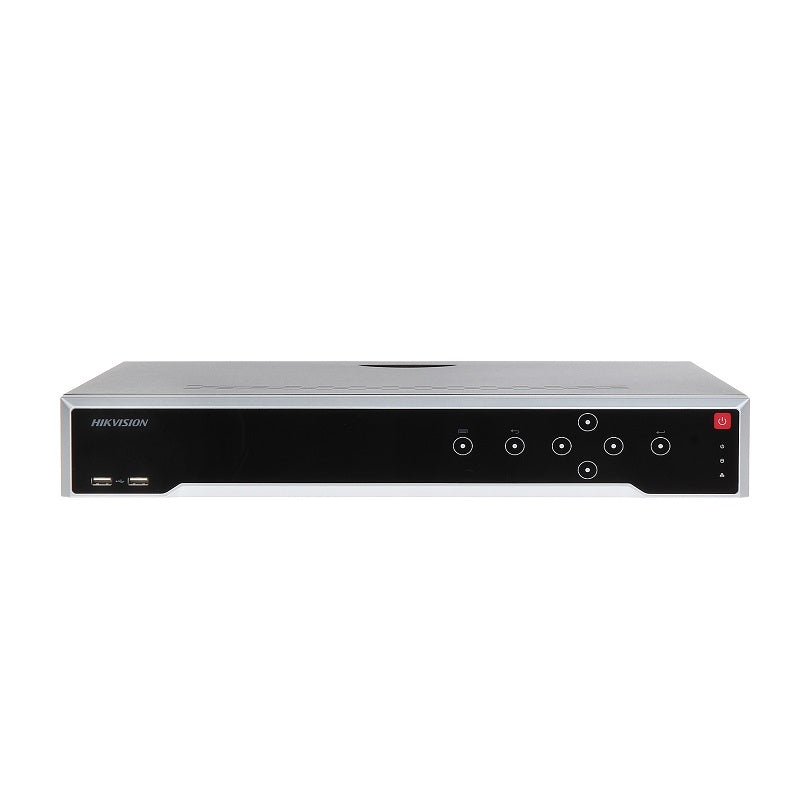

HIKVISION 16Ch 4K
HIKVISION 16Ch 4K Nvr With Smart Search
HIKVISION 16Ch 4K Nvr With Smart Search
HIKVISION 16Ch 4K Nvr With Smart Search

HIKVISION 16Ch 4K Nvr With Smart Search

HIKVISION
R 5,899
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 5,899

Description

: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. 4K (3840 `d7 2160)/60Hz, 4K (3840 `d7 2160)/30Hz, 1920 `d7 1080/60Hz, 1600 `d7 1200/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz.

Key features

  • Incoming Bandwidth
  • Outgoing Bandwidth
  • 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • 1-ch, BNC (1.0 Vp-p, 75 `d9), resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9, using the audio input)
  • Decoding
  • Decoding Format
  • Recording Resolution
  • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 mp/1080p/uxga/720p/vga /4cif/dcif/ 2cif/cif/qcif
  • Dual-Stream Recording
  • Support
  • Decoding Capability
  • 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Synchronous Playback
  • Stream Type
  • Remote Connection
  • Tcp/ip, dhcp, ipv4, ipv6, DNS, ddns, NTP, rtsp, sadp, smtp, snmp, NFS, iscsi, isup, upnp™, http, https
  • Sata
  • Esata
  • Up to 10 TB capacity for each HDD
  • Alarm In/Out
  • Front panel: 2 `d7 USB 2.0; Rear panel: 1 `d7 USB 3.0
  • 100 to 240 VAC, 50 to 60 Hz
  • Consumption
  • Working Temperature
  • 10 to +55° C (+14 to +131° F)
  • Working Humidity
  • Chassis
  • 445 `d7 400 `d7 75 mm ( 17.5"`d7 15.7" `d7 3.0")
  • FCC
  • CE
  • EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Specifications

  • With P2P function
  • 16-ch
  • Up to 12 MP resolution
  • 160 Mbps
  • 256 Mbps
  • HDMI 1 Output
  • HDMI 2 Output
  • HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • 1-ch, RCA (Linear, 1 K'd9)
  • H.265/h.265+/h.264/h.264+/mpeg4
  • G.711ulaw/G.711alaw/G.722/G.726
  • 128
  • 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
  • 1 RS-485 (half-duplex), 1 RS-232
  • 4 SATA interfaces
  • N/A (1 eSATA interface is optional)
  • Capacity
  • 16/4 (16/8 is optional)
  • ≤ 20 W (without HDD)
  • 10 to 90 %
  • 19-inch rack-mounted 1.5U chassis
  • Dimension (W `d7 D `d7 H)
  • ≤ 5 kg (11 lb.)
  • Part 15 Subpart B, ANSI C63.4-2014

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Security & Surveillance
Brand Hikvision
Channels 16-ch IP video input
Resolution Up to 12 MP
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 256 Mbps
HDMI Output 4K (3840 x 2160)/60Hz
Video Format H.265+/H.265/H.264+/H.264/MPEG4
SATA 4 SATA interfaces
Capacity Up to 10 TB per HDD
Network 2 x RJ-45 10/100/1000 Mbps
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 20 W (without HDD)
Chassis 19-inch 1.5U rack-mounted
Dimensions 445 x 400 x 75 mm
Weight ≤ 5 kg
Barcode 6954273670320
