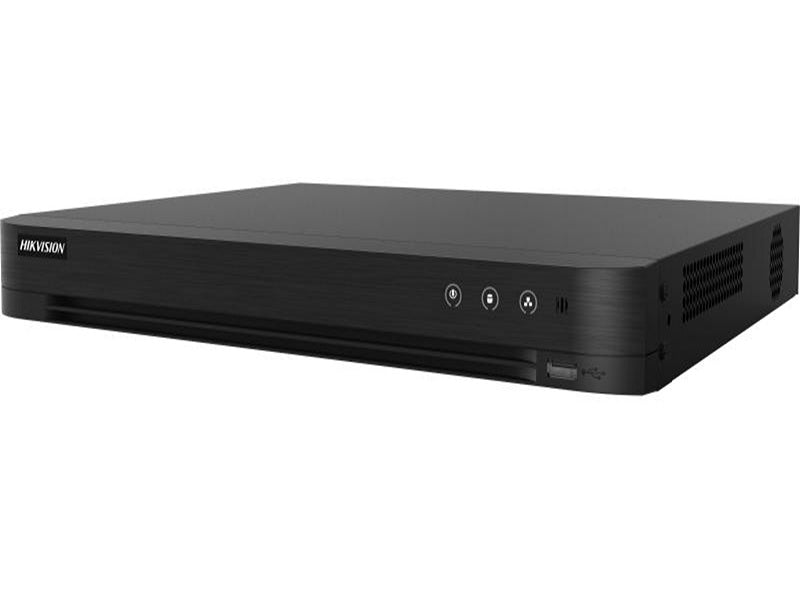

Hikvision 16Ch Acusense Dvr 4Ch Alarm

The IDS-7216HQHI-M2/S digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), IP - Hikvision and PAL interface is a professional device applicable in surveillance systems. The recorder supports AcuSense technology, allowing to filter false alarms based on the recognition of people and vehicles. Video inputs: 16 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS.

Key features

• Image compression method: H.265 / H.265+ / H.264 / H.264+
• 3 Mpx - 1920 x 1536, Channels 1 / 2 / 3 / 4 ,
• max. 6 Mpx - 3072 x 2048
• Recording speed adjustment: 6 Mpx IP @ 1 ... 25 fps
• 4M-N @ 1 ... 15 fps
• 3 Mpx @ 1 ... 15 fps
• 1080p @ 1 ... 15 fps
• 1080N @ 1 ... 25 fps
• 720p @ 1 ... 25 fps
• 960H @ 1 ... 25 fps
• for each channel
• 16 x hd-tvi / AHD / hd-cvi / PAL / IP + 8 x IP
• Searching and playback the records: Records searching: timeline or file list. Playback: forward, fast, slow.
• Playback max. 16 cameras in the same time
• Network functions: Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters
• Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
• Mobile phones support: Port no.: 8000 or access by a cloud (P2P)
• Control compatible with coax HD-TVI Hikvision
• Motion Detection: Split the screen into zones : 22 x 18 motion zones
• DVR from the AcuSense series
• Intelligent Image Analysis : intrusion, crossing the line (tripwire), face detection, Deep Learning technology
• Filtering of false alarms based on the recognition of persons and vehicles
• Power supply: 12 V DC / 2 A (power adapter included)
• Supported languages: Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian

Specifications

• Ids-7216hqhi-m2/s upto 4MP
• Standard: AHD, HD-CVI, HD-TVI, CVBS, TCP/IP
• Video outputs: 1 pcs HDMI
• 1 pcs VGA
• 1 pcs CVBS - BNC socket
• Audio inputs: 1 pcs CINCH
• Audio outputs: 1 pcs CINCH
• 1080p - 1920 x 1080 ,
• 1080N - 960 x 1080 ,
• 720p - 1280 x 720 ,
• 4M-N - 1280 x 1440 ,
• 960H - 960 x 576 ,
• Operation modes: Firmware V4.20.000, Buiid 181107
• Recording modes: Manual, Motion Detection, Schedule
• Supported hard drives: 1 x 10 TB SATA
• External storage devices backup: Backup to USB drive (pendrive)
• Network interface: 1 x RJ-45 - 10/100/1000 Base-T
• Bitrate: 32 ... 6144 kbps
• Android: Darmowa aplikacja iVMS-4500 or Hik-Connect
• iOS (iPhone): Darmowa aplikacja iVMS-4500 or Hik-Connect
• Default IP address: DHCP or 192.168.1.64
• Default admin user / password: admin / -
• Web browser access ports: 80
• PC client access ports: 554 RTSP, 8000
• Mobile client access ports: 8000
• Port ONVIF: 80
• rtsp://user:password@192.168.1.64:554/Streaming/Channels/channel_no01/ - Main stream
• rtsp://user:password@192.168.1.64:554/Streaming/Channels/channel_no02/ - Sub stream
• PTZ control: RS-485 PELCO-D/P
• 1 pcs USB 2.0
• 1 pcs USB 3.0
• Color: Black
• Weight: 1.3 kg
• Dimensions: 315 x 248 x 45 mm
• Manufacturer / Brand: Hikvision
