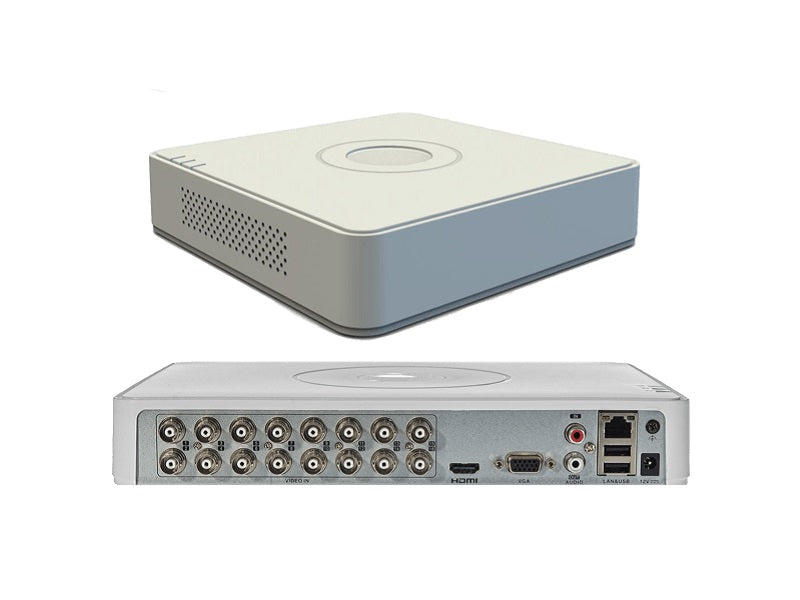

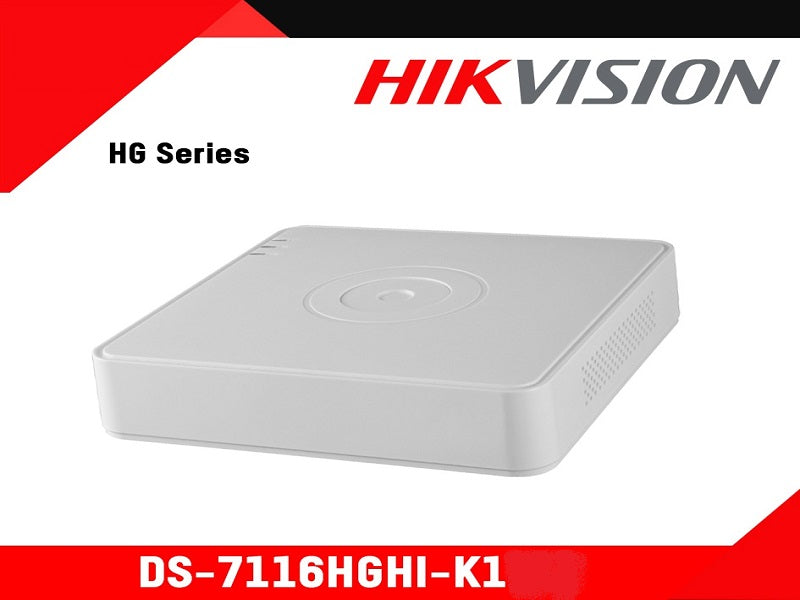

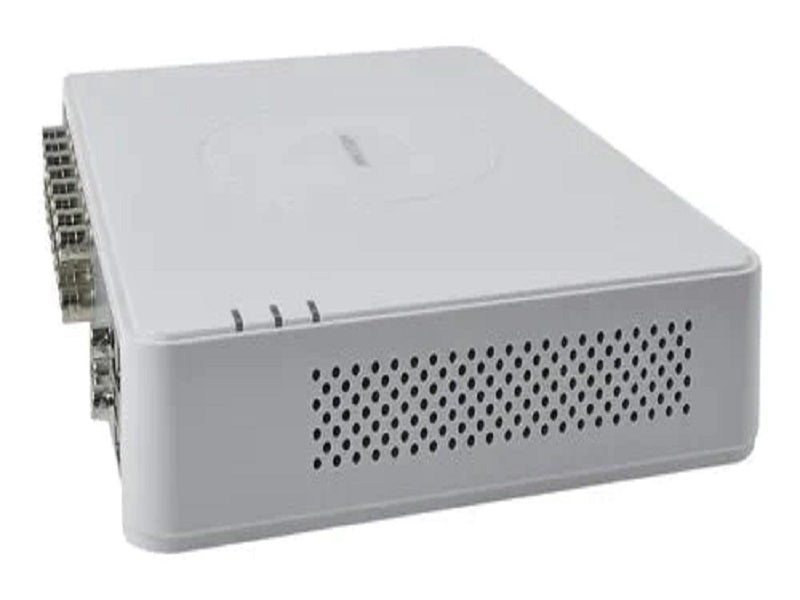

HIKVISION 16Ch Turbo Dvr Ds7116Hghik1
HIKVISION 16Ch Turbo Dvr Ds7116Hghik1
HIKVISION 16Ch Turbo Dvr Ds7116Hghik1

HIKVISION 16Ch Turbo Dvr Ds7116Hghik1

HIKVISION
R 1,999
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,999

Description

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 18-ch IP camera inputs (up to 5 MP).

Key features

  • 16 CH 1080P Lite Mini 1U H.265 DVR
  • Max. 1200 m for 720p HDTVI signal
  • Human/Vehicle Analysis
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
  • Quick search by object or event type is supported;
  • Recording
  • Encoding Resolution
  • Frame Rate
  • For 1080p and 720p stream access CIF/QVGA@15 fps
  • Dual-Stream
  • Support
  • Stream Type
  • BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
  • Pal/ntsc
  • 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
  • 1-ch RCA (2.0 Vp-p, 1 K'd9), and 16-ch via coaxial cable
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
  • Synchronous Playback
  • Total Bandwidth
  • Remote Connection
  • TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Sata
  • Up to 10 TB capacity for each disk
  • Consumption
  • Working Temperature
  • 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
  • Working Humidity
  • 285 `d7 210 `d7 45 mm (11.2 `d7 8.3 `d7 1.8 inch)

Specifications

  • Ds-7116hghi-k1
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • Up to 1080p Lite@15 fps encoding capability
  • Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
  • For 720p stream access: 720p/WD1/4CIF/VGA/CIF
  • For standard definition stream access: WD1/4CIF/VGA/CIF
  • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
  • For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
  • For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  • For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  • 32 Kbps to 4 Mbps
  • G.711u
  • 64 Kbps
  • 2-ch (up to 18-ch)
  • Up to 5 MP resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
  • 16-ch
  • 1080p25, 1080p30, 720p25, 720p30
  • 1-ch, RCA (Linear, 1 K'd9)
  • 96 Mbps
  • 128
  • 1, RJ45 10M/100M self-adaptive Ethernet interface
  • 1, SATA interface
  • Capacity
  • 2 `d7 USB 2.0
  • 12 VDC, 1.6 A
  • ≤ 7 W (without HDD)
  • 10% to 90%
  • Dimension (W `d7 D `d7 H)
  • ≤ 1.8 kg (without HDD, 4.0 lb.)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision DVRs / Security & Surveillance
Brand Hikvision
Model DS-7116HGHI-K1
Channels 16-ch
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
IP Camera Inputs Up to 18-ch (up to 5 MP)
Video Bitrate 32 Kbps to 4 Mbps
Audio Compression G.711u
HDMI Output 1920 x 1080/60Hz
Total Bandwidth 96 Mbps
Remote Connection 128
Storage 1 SATA, up to 10 TB per disk
Network Interface RJ45 10/100 Mbps Ethernet
USB 2 x USB 2.0
Power Supply 12 VDC, 1.6 A
Power Consumption <= 7 W (without HDD)
Dimensions 285 x 210 x 45 mm
Weight <= 1.8 kg (without HDD)
Barcode 6931847123253
