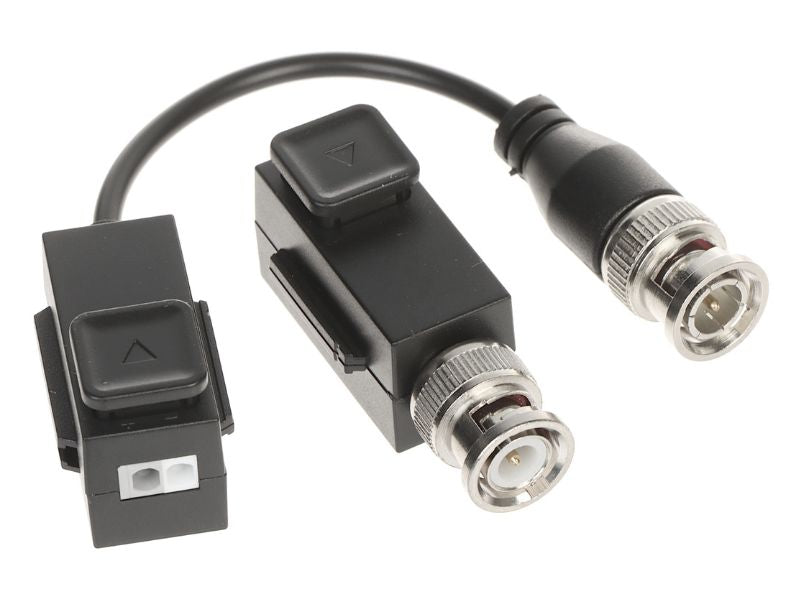

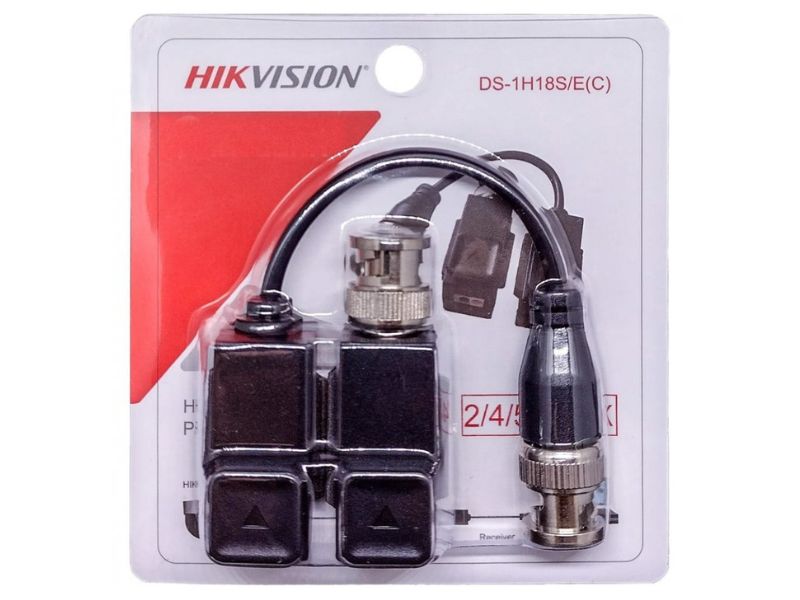

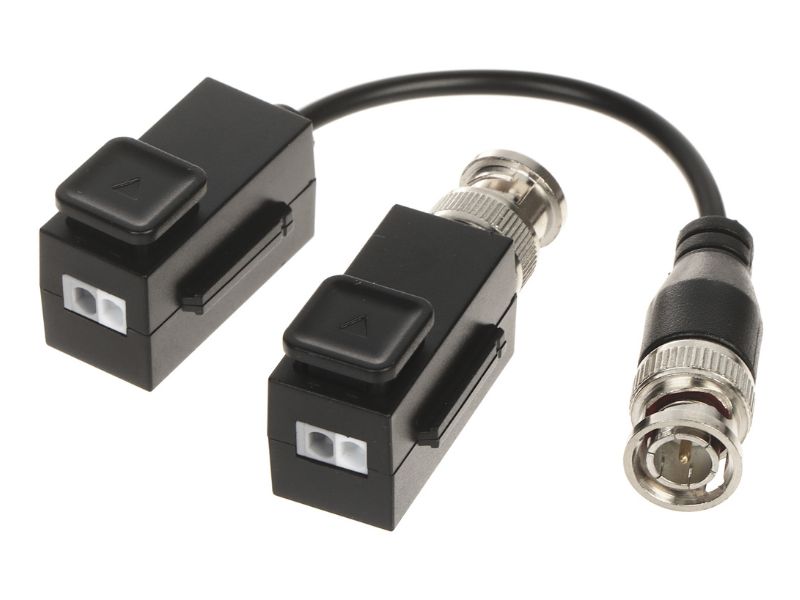

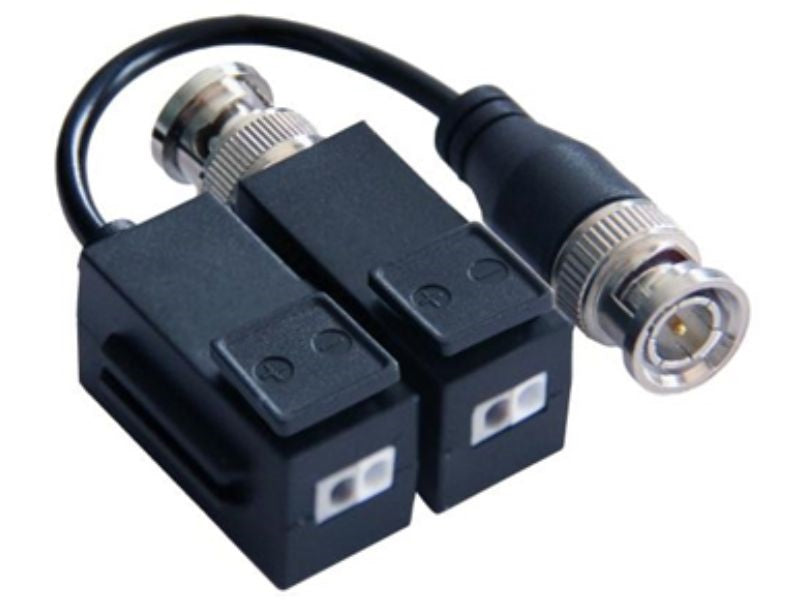

Hikvision 2 Pck Hd-Tvi Video Baluns
Hikvision 2 Pck Hd-Tvi Video Baluns
HIKVISION
R 79R 149
Estimated delivery
2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
Out of stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
Built-in solid state TVS (Transient Voltage Suppressor) for surge protection.
Key features
- Compatible with all HD-TVI/CVI/AHD/CVBS analog camera
- Low crosstalk and noise suppressions
- Wave Filter Design, Anti-Static Design
- Exceptional interference rejection
- ABS engineering plastic housing
- Properties
- Transmission Signal
- Transmission Distance
- Category Type
- Video Transmission Properties and Port
- Coaxial Video Connector
- Bnc-m
- Twisted-pair Video Connector
- Tool-less push-pin terminal block
- Compatible Format
- Hd-tvi/tvi/ahd/cvbs
- Ant-interference
- Protection
- ESD
- Coaxial Cable Connector
- UTP Cable Connector
- BNC Male
- UTP Cable
- Physical Properties
- Shell
- ABS engineering plastic
- Black
- Stability
- Mtbf
Specifications
- Real-time transmission over UTP cat5e/6
- 60 dB crosstalk and noise immunity
- 1 channel
- Max 350m
- UTP CAT 5E/ 6
- Resolution
- 720p/960p/1080p/3mp/4mp/5mp/8mp
- >60dB
- Contact discharge electricity level3
- air discharge electricity level3
- Per: IEC61000-4-2
- 2KV(common-code) Per:IEC61000-4-5
- 2KV(different-code),
- 2KV(common-code)
- Per:IEC61000-4-5
- Impedance
- 75 ohms
- 100 ohms
- Color
- Dimensions ( L x W x H )
- 175.3*15.4*17.8mm (BNC connector & cable excluded)
- 39 g
- >10000 h
- 20° ~55° C
- 40° ~ 150° C
- Humidity
- 0~95% (non-condensing)
Frequently Bought Together Frequently bought
Product Information
| Categories | Hikvision / Security & Surveillance / Specials |
| Brand | Hikvision |
| Type | HD-TVI Video Balun (2 Pack) |
| Transmission Signal | 1 channel |
| Transmission Distance | Max 350m |
| Cable Type | UTP CAT 5E/6 |
| Compatible Format | HD-TVI/CVI/AHD/CVBS |
| Resolution | 720P/960P/1080P/3MP/4MP/5MP/8MP |
| Coaxial Connector | BNC-M |
| Impedance | BNC 75 ohms / UTP 100 ohms |
| Housing | ABS engineering plastic |
| Color | Black |
| Dimensions | 175.3 x 15.4 x 17.8 mm |
| Weight | 39 g |
| Operating Temperature | -20 to 55 C |
| Humidity | 0-95% (non-condensing) |
| Barcode | 6931847129972 |
