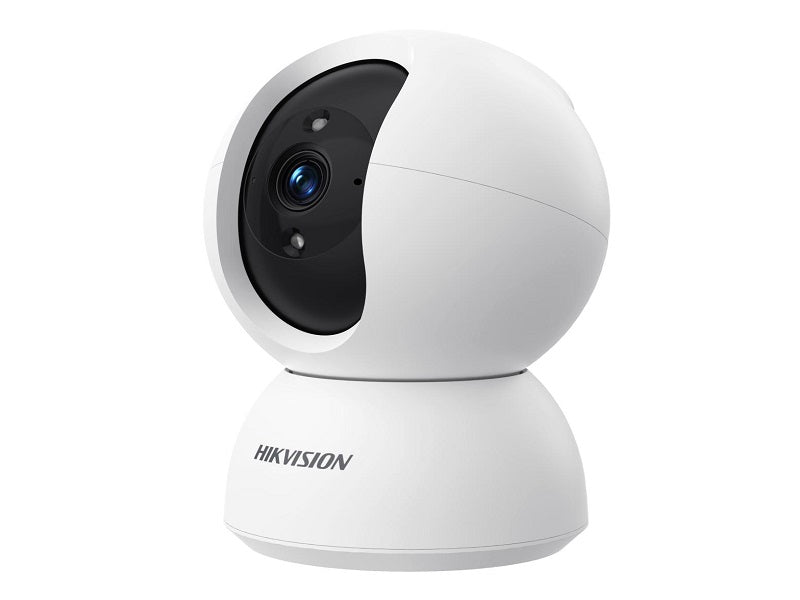

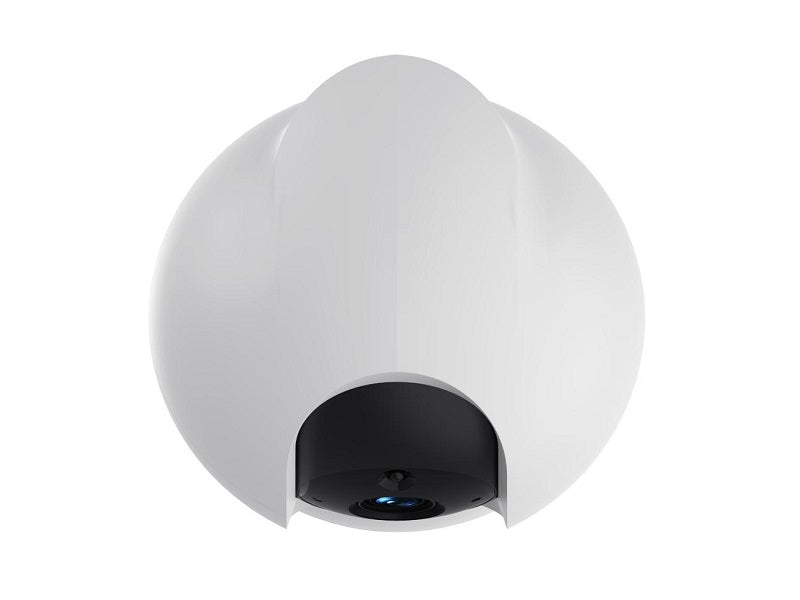

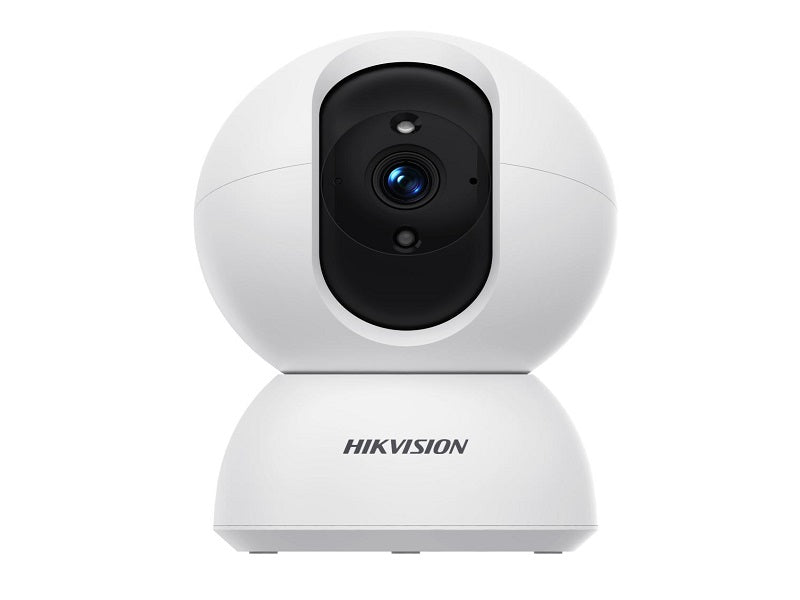

Hikvision 2MP 4mm Indoor PT Network

Clear imaging against strong back light due to DWDR technology. Color: 0.05 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR.

Key features

• Support Wi-Fi connection
• Built-in microphone and speaker, support two-way audio
• Mobile monitoring via mobile application
• 3D DNR technology delivers clean and sharp images
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0, tilt: 0`b0 to 90`b0, rotate: 0`b0 to 360`b0
• Focal Length & FOV
• 4 mm, horizontal FOV 75`b0, vertical FOV 45`b0, diagonal FOV 85`b0
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 720, 768 `d7 432)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 720, 768 `d7 432)
• Sub-Stream
• 50 Hz: 25 fps (768 `d7 432, 512 `d7 288)
• 60 Hz: 30 fps (768 `d7 432, 512 `d7 288)
• Frame Rate
• Self-Adaptive during network transmission
• Yes
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, RTP, rtsp, rtcp, NTP, upnp, igmp, qos, ipv4, UDP, bonjour, ssl/tls
• Simultaneous Live View
• API
• ONVIF (Profile S, Profile T, Profile G), SDK
• User/Host
• Administrator
• Security
• Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
• Client
• Encryption Mode
• Channel Bandwidth
• Transfer Rate
• Wireless Range
• Up to 50 m (The performance varies based on actual environment)
• Image
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software
• Day/Night Switch
• Auto
• Wide Dynamic Range (WDR)
• Digital WDR
• Privacy Mask
• Built-in memory card slot, support microSD card, up to 512 GB
• Built-in Microphone
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target type (human)), exception
• Plastic
• `d880 mm `d7 122 mm (`d83.14" `d7 4.8")
• 105 mm `d7 105 mm `d7 190 mm (4.1" `d7 4.1" `d7 7.5")
• Approx. 216 g (0.48 lb.)
• Approx. 554 g (1.22 lb.)
• 10 `b0C to 45 `b0C (14 `b0F to 113 `b0F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• 10 `b0C to 45`b0C (14 `b0F to 113 `b0F). Humidity 95% or less (non-condensing)
• Heartbeat,mirror
• 5 VDC `b1 10%, 1 A, max. 5 W
• Flashing Light
• Red and Blue Light
• Approval
• RF
• CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
• EMC
• Ce-emc (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
• Safety

Specifications

• Camera DS-2CV2Q21G1-IDW-4MM
• 2 MP Indoor Fixed PT Network Camera
• Support Motion 2.0, human detection
• Support on-board storage, up to 512 GB
• 1/3" Progressive Scan CMOS
• 1920 `d7 1080
• 1/3 s to 1/100,000 s
• Lens
• Lens Mount
• M12
• Aperture
• F2.0
• Up to 10 m
• Main stream: H.265/H.264
• Sub-stream: H.265/H.264
• Up to 1 M bps
• Max.15 fps
• G.711/aac-lc
• 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
• 8 kHz/16 kHz
• Up to 4 channels
• iVMS-4200, Hik-Connect, Hik-Partner-Pro
• Wpa-psk/wpa2-psk
• Frequency Range
• 2.412 GHz to 2.472 GHz
• 20 MHz
• 11b: up to 54 Mbps,
• 11g: up to 54 Mbps,
• 11n: up to 150 Mbps
• 4 programmable polygon privacy masks
• 1 RJ45 10M/100M self-adaptive Ethernet port
• Yes,1 built-in microphone
• Yes, 1 built-in speaker
• Material
• Ce-lvd: EN 62368-1: 2014/A11: 2017
• Ce-rohs: 2011/65/EU,
• Weee: 2012/19/EU
