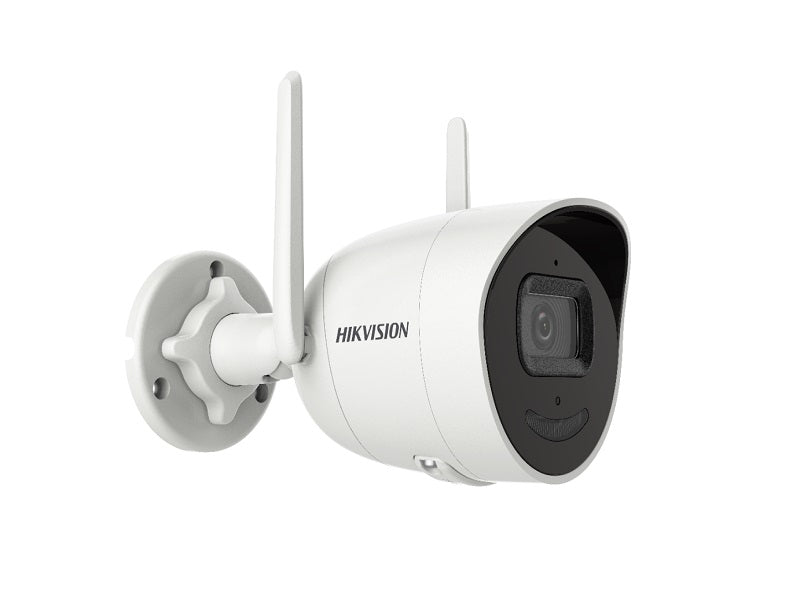

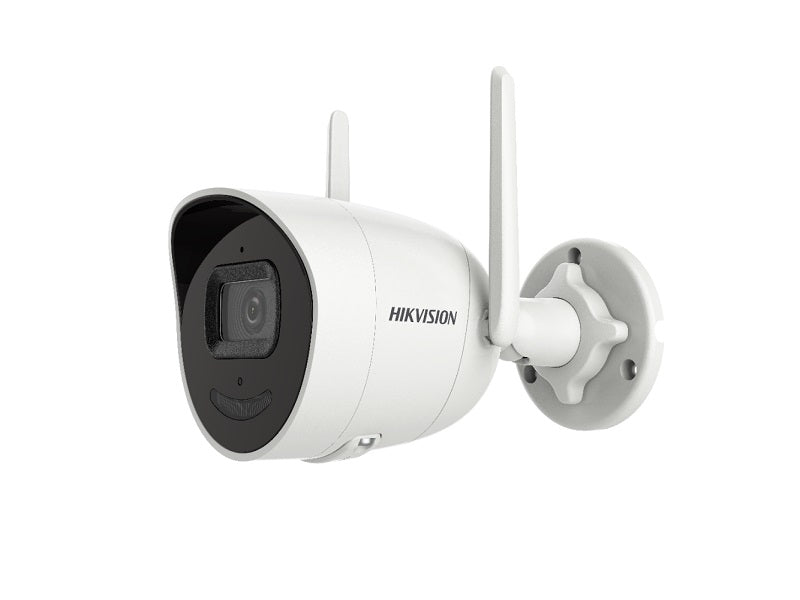

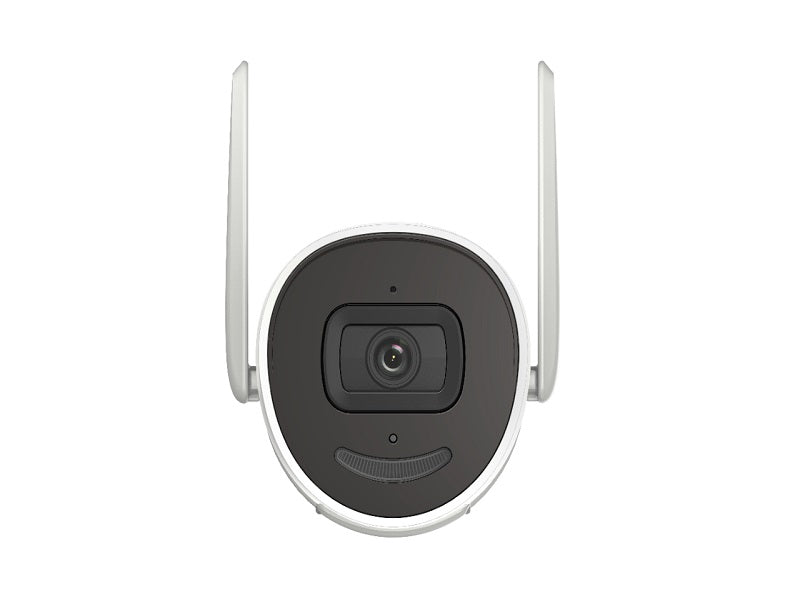

HIKVISION 2Mp Outdoor Acusense Bullet

Built-in dual antenna 2.4G Wi-Fi, up to 120m range in open area. Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR on.

Key features

• 2 MP Outdoor AcuSense Fixed Bullet Network Camera
• Human and Vehicle Classification
• Strobe Light and Audible Warning
• Built-in microphone and speaker, support two-way audio
• Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
• Image Sensor
• Min. Illumination
• Shutter Speed
• Slow Shutter
• Yes
• Wide Dynamic Range
• Day & Night
• ICR Cut
• Angle Adjustment
• Pan: 0`b0 to 360`b0, tilt: 0`b0 to90`b0, rotate: 0`b0 to 360`b0
• 2.8 mm, horizontal FOV: 101`b0, vertical FOV: 54`b0, diagonal FOV: 119`b0;
• 4 mm, horizontal FOV: 82`b0, vertical FOV: 44`b0, diagonal FOV: 97`b0
• Illuminator
• IR Range
• Wavelength
• Smart Supplement Light
• Visual Alarm
• Max. Resolution
• Main Stream
• 50Hz: 25 fps (1920 `d7 1080, 1280 `d7 720)
• 60Hz: 30 fps (1920 `d7 1080, 1280 `d7 720)
• Sub Stream
• BaseLine Profile/Main Profile
• Main Profile
• Stream Type
• Main stream and sub-stream
• Region Of Interest (ROI)
• Simultaneous Live View
• API
• Isapi, SDK
• Protocols
• Tcp/ip, icmp, http, dhcp, DNS, ddns, RTP, rtsp,r TCP, NTP, upnp, smtp, igmp, qos, ipv6, UDP, bonjour, ssl/tls
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• NAS (NFS, smb/cifs)
• Client
• Wi-Fi connection with Hik-Connect directly is not possible.
• Web Browser
• Encryption Mode
• Channel Bandwidth
• Modulation
• Wireless Range
• Up to 120 m (The performance varies based on actual environment.)
• Image
• Day/Night Switch
• Day/Night/Auto/Schedule
• Image Enhancement
• Image Settings
• Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset
• Event
• Smart Event
• Intrusion detection, line crossing detection, region entrance detection, region exiting detection
• Intelligent (Traditional Algorithm)
• Basic Event
• Motion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Linkage Method
• Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audiable warning
• Online Upgrade
• Firmware Version
• One-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter
• Software Reset
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
• Startup And Operating Conditions
• 12 VDC, 0.67 A, max. 8.0 W
• 175.6`d7 73.0 `d7 89.1mm (6.91" `d7 2.87" `d7 3.51")
• 260 `d7 125 `d7 125 mm (10.24" `d7 4.92" `d7 4.92")
• Approx. 450 g (0.99 lb.)
• Approx. 770 g (1.70 lb.)
• Approval
• EMC
• FCC ID (47 CFR Part 15, Subpart B);
• Ce-emc (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
• RF
• FCC ID (FCC Part 15.247 (BT or 2.4G));
• CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
• WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
• KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);
• ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Safety
• CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
• CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection

Specifications

• Fixed network camera, 2WAY audio 4MM
• 1/2.8" Progressive Scan 2MP CMOS
• H.265,H.264
• EXIR, 30m IR range
• IP66 Dust and water proof
• 1/2.8" Progressive Scan CMOS
• 1/3 s to 1/100,000 s
• 120 dB
• Lens
• Lens Type & FOV
• Aperture
• F1.6
• Lens Mount
• M12
• Up to 30 m
• 850 nm
• 1920 `d7 1080
• 50Hz: 25 fps (640 `d7 360)
• 60Hz: 30 fps (640 `d7 360)
• Main stream/Sub-stream: H.265/H.264
• 32 Kbps to 8Mbps
• H.264 Type
• H.265 Type
• 1 fixed region for main stream
• 8 kHz/16 kHz
• G.711/g.722.1/g.726/mp2l2/pcm
• 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• Up to 6 channels
• Up to 32 users
• 3 levels: administrator, operator and user
• Wired network: Hik-Connect, iVMS-4200
• Wi-Fi: iVMS-4200
• Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
• Plug-in free live view: Chrome 45.0+, Firefox 52.0+
• 64/128-bit WEP, wpa-eap/wpa2-eap, wpa-psk/wpa4-psk
• IEEE802.11b, 802.11g, 802.11n
• Frequency Range
• 2.4 GHz - 2.4835 GHz
• 20/40 MHz
• 802.11b: CCK, qpsk, bpsk
• 802.11g/n: OFDM
• BLC, HLC, 3D DNR
• 1 RJ45 10M/100M self-adaptive Ethernet port
• V5.5.132
• 12 VDC `b1 25%, reverse polarity protection
• `d85.5 mm coaxial power plug
• Material
• Front cover: metal, back cover: plastic
• RCM (as/nzs cispr 32: 2015);
• IC (ICES-003: Issue 6, 2016);
• KC (KN 32: 2015, KN 35: 2015)
• IC ID (RSS-247 (BT or 2.4G));
• UL (UL 60950-1);
• BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
• LOA (iec/en 60950-1)
• Reach Regulation (EC) No 1907/2006
• Ingress protection: IP66 (IEC 60529-2013)
