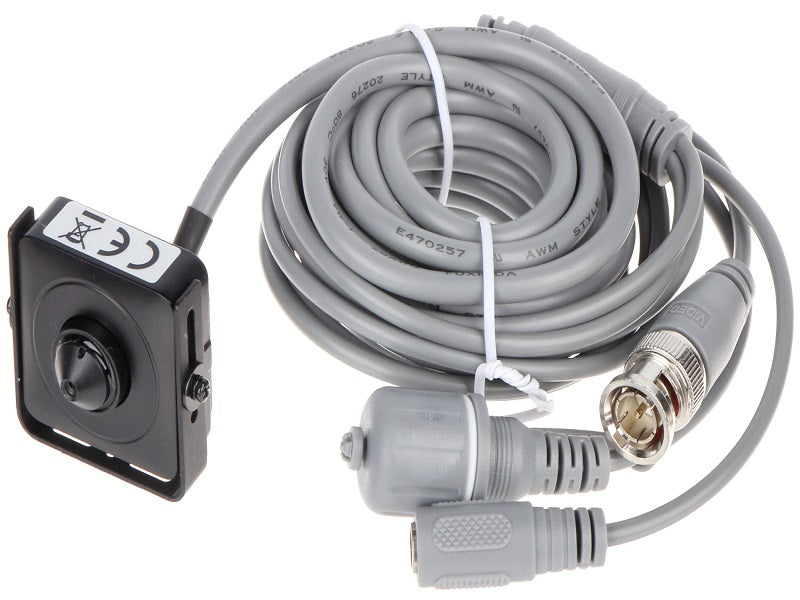

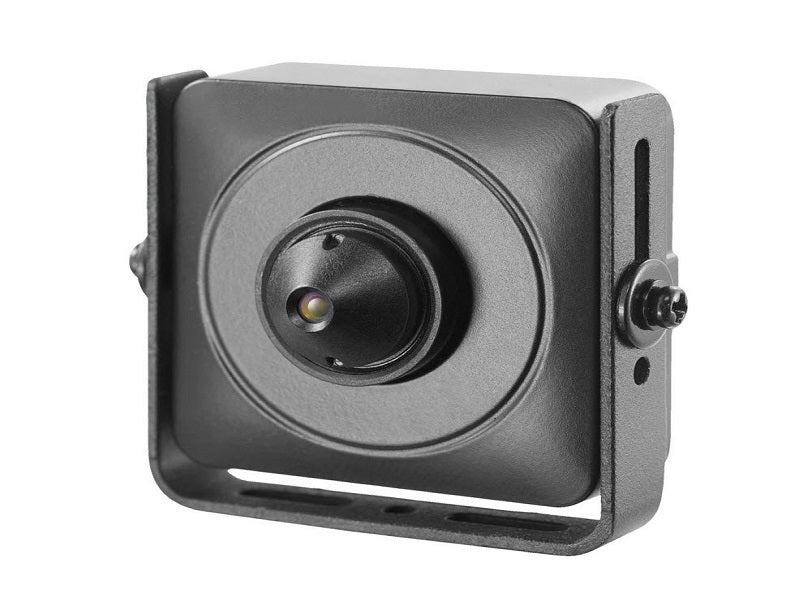

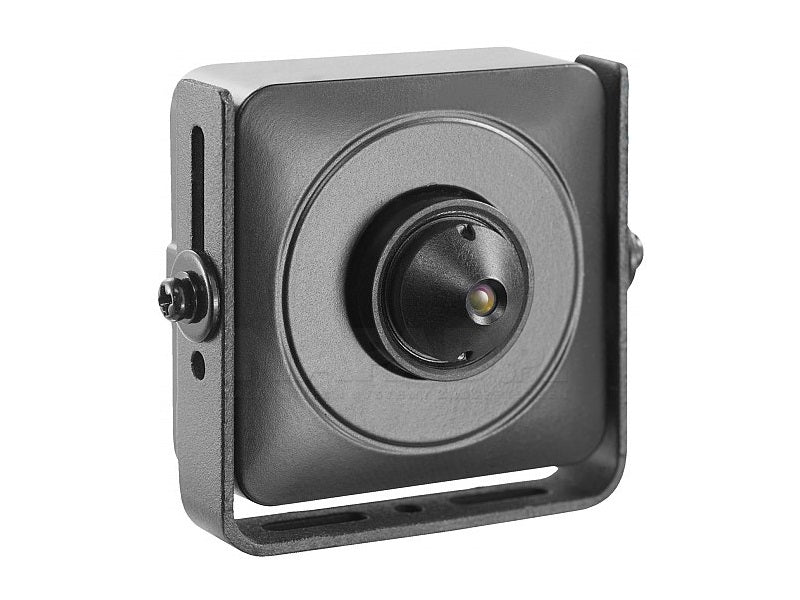

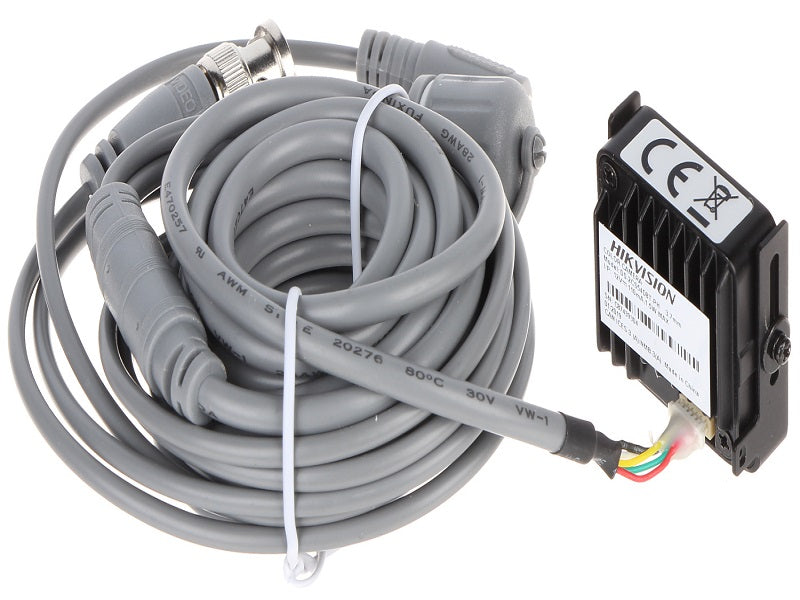

HIKVISION 2Mp Pinhole 3.7Mm

Indoor micro camera equipped with very good quality CMOS sensor. High sensor resolution produces high detailed image. So, you can use this camera for example to persons recognition with good results. In the case of video transmission using a twisted pair cable and matching transformers (balun), be aware of the possibility of signal reflections and interfering signals.

Key features

• Video output: 1 Vpp / 75 `d9 - HD-TVI / CVBS
• WDR - 120 dB - Wide Dynamic Range
• Motion Detection - max. 4 zones
• AGC - Automatic Gain Control
• Privacy zones - max. 4
• Auto White Balance
• BLC - Back Light Compensation
• Mirror - Mirror image
• Sharpness - sharper image outlines
• Main features: Length of the cable : 3 m
• Application: The camera is designed for indoor use, due to the possibility of steam condensation.

Specifications

• The product's predecessor was: DS-2CS54D8T-PH
• Standard: HD-TVI, PAL
• Sensor: Progressive Scan CMOS
• Matrix size: 2.1 Mpx
• Resolution: 1920 x 1080 - 1080p
• Lens: 3.7 mm (pinhole)
• 71 `b0 (manufacturer data)
• 70 `b0 (our tests result)
• Min. illumination: 0.005 Lux - F1.2
• 3D-DNR - Digital Noise Reduction
• Housing: Mini, Metal
• Color: Black
• Power supply: 12 V DC / 125 mA
• Power consumption: ≤ 1.5 W
• Operation temp: -40 `b0C ... 60 `b0C
• Weight: 0.04 kg
• Dimensions: 32.4 x 32.4 x 22 mm (without bracket)
• Manufacturer / Brand: Hikvision
• SAP Code: 300610513
• Guarantee: 3 years
