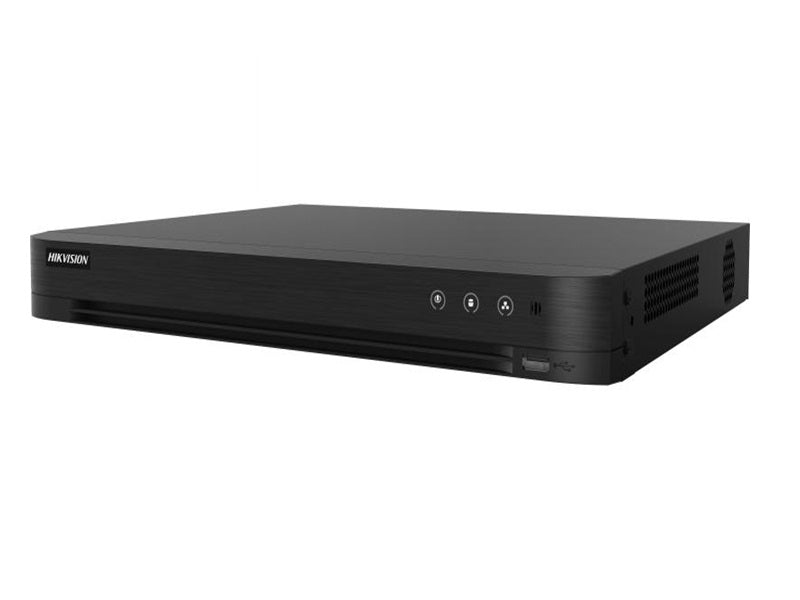

HIKVISION 32Ch Acusense Turbo Hd Dvr

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;. 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N).

Key features

• Deep learning-based motion detection 2.0 for all analog channels
• Deep learning-based perimeter protection
• Encoding ability up to 1080p @ 15 fps
• Up to 40 network cameras can be connected
• Human/Vehicle Analysis
• Quick search by object or event type is supported;
• Perimeter Protection
• Facial Detection
• Facial Detection And Capture
• Face picture detection, face picture search
• Recording
• Encoding Resolution
• Frame Rate
• 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Dual-Stream
• Support
• Stream Type
• 8-ch (up to 40-ch), each up to 4 Mbps,
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
• : The 3 MP signal input is only available for channel 1/2/3/4.
• 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• Pal/ntsc
• 1-ch, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)`a3`ac32-ch via coaxial cable
• 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• Synchronous Playback
• Remote Connection
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Total Bandwidth
• Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
• Sata
• Up to 10 TB capacity for each disk
• Alarm In/Out
• N/A (optional to support)
• Consumption
• Working Temperature
• 10 `b0C to +55 `b0C (+14 `b0F to +131 `b0F)
• Working Humidity
• 380 `d7 320 `d7 48 mm (15.0” `d7 12.6” `d7 1.9”)

Specifications

• UP TO 3K/5MP
• 32-ch 1080p 1U H.265 AcuSense DVR
• Efficient H.265 pro+ compression technology
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Motion Detection 2.0
• Up to 4-ch
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
• 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
• 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• 32 Kbps to 10 Mbps
• G.711u
• 64 Kbps
• 2-ch (up to 34-ch)
• Up to 6 MP resolution,
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 32-ch
• 1-ch, BNC (1.0 Vp-p, 75 `d9),
• resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
• 1-ch, RCA (Linear, 1 K'd9)
• 16-ch
• 128
• 128 Mbps
• 1,RJ45 10/100/1000 Mbps self-adaptive
• 2 SATA interfaces
• Capacity
• RS-485 (half-duplex)
• Front panel: 1 `d7 USB 2.0
• Rear panel: 1 `d7 USB 3.0
• 12 VDC, 5 A
• ≤ 40 W
• 10% to 90%
• Dimension (W `d7 D `d7 H)
• ≤ 2.1 kg (4.6 lb)
