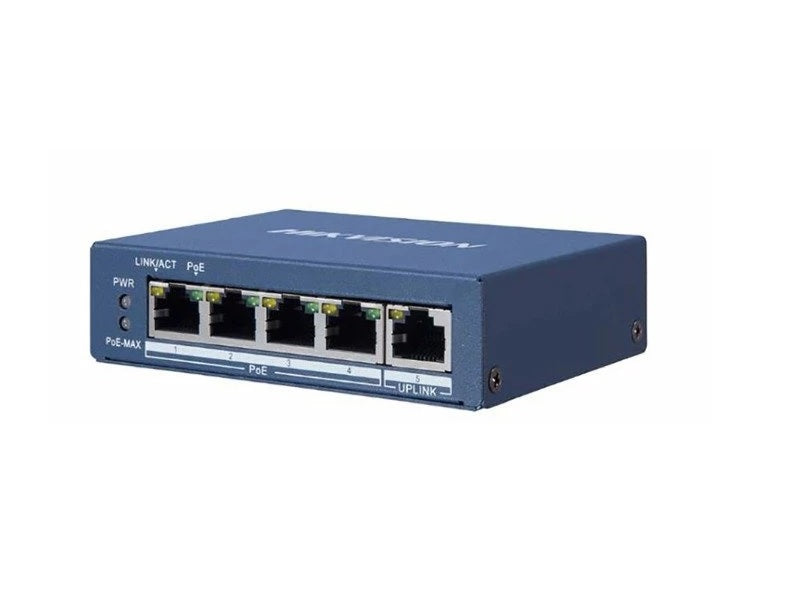

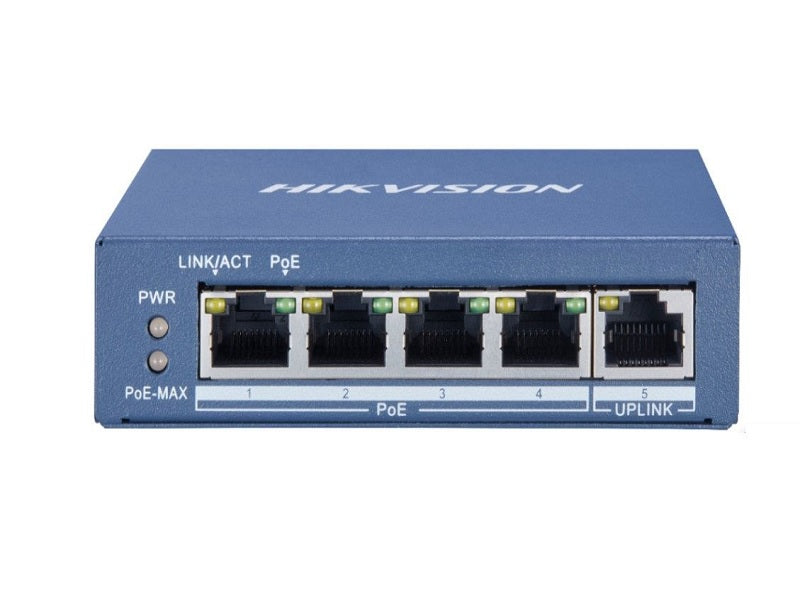

Hikvision 4 Port Gigabit Unmanaged Poe

layer 2 gigabit unmanaged PoE switch, providing 4 gigabit PoE ports, and one 10/100/1000 Mbps RJ45 port. The switches provide advanced PoE technology and connect other devices. with high performance. Meanwhile, all gigabit ports guarantee stable transmission of data.

Key features

• Feature and Function
• 4 `d7 gigabit PoE ports, and 1 `d7 gigabit RJ45 port.
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• PoE port with 6 KV surge protection.
• PoE output power management.
• Gigabit network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Fan-free design with high reliability.
• Port number 4 `d7 gigabit PoE ports, and 1 `d7 gigabit RJ45 port
• Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Forwarding mode Store-and-forward switching
• PoE power supply
• PoE power pin Support 4-core power supply, and Ethernet cable 1/2/3/6 provide
• Max. port power 30 W
• Max. power consumption 65 W
• Shell Metal material, fan-free design
• Dimensions (L `d7 H `d7 D) 105 mm `d7 27.6 mm `d7 83.1 mm (4.1” `d7 1.1” `d7 3.3”)
• Storage temperature –40?C to 85?C (–40?F to 185?F)

Specifications

• Switch 10/100/1000 mbps
• IEEE 802.3at/af standard.
• Port type RJ45 port, full duplex, MDI/MDI-X adaptive
• MAC address table 2 K
• Switching capacity 10 Gbps
• Packet forwarding rate 7.44 Mpps
• Internal cache 1 Mbits
• PoE standard IEEE 802.3af, IEEE 802.3at
• PoE port Ports 1 to 4
• PoE power budget 60 W
• Weight 0.26 kg (0.57 lb)
• Operating temperature 0?C to 40?C (32?F to 104?F)
• Operating humidity 5% to 95% (no condensation)
• Storage humidity 5% to 95% (no condensation)
• Power supply 48 VDC, 1.35 A
• Power consumption 65 W
