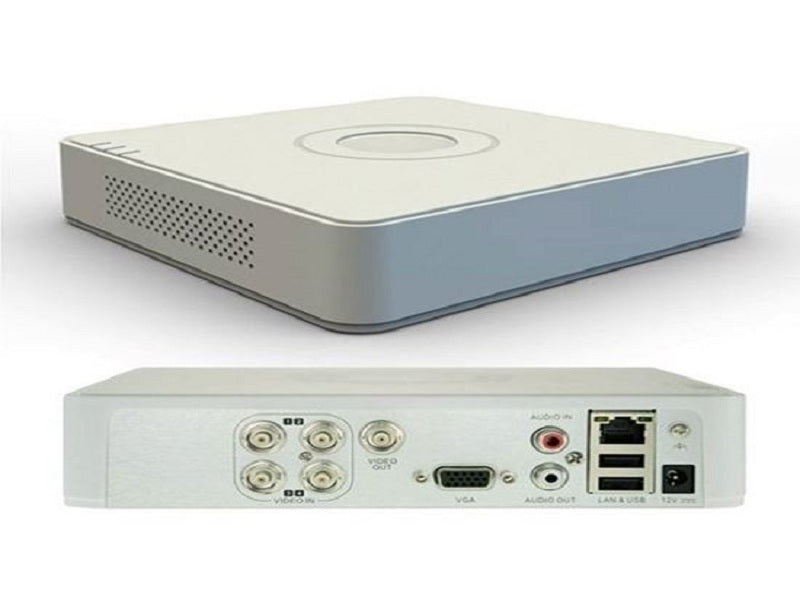

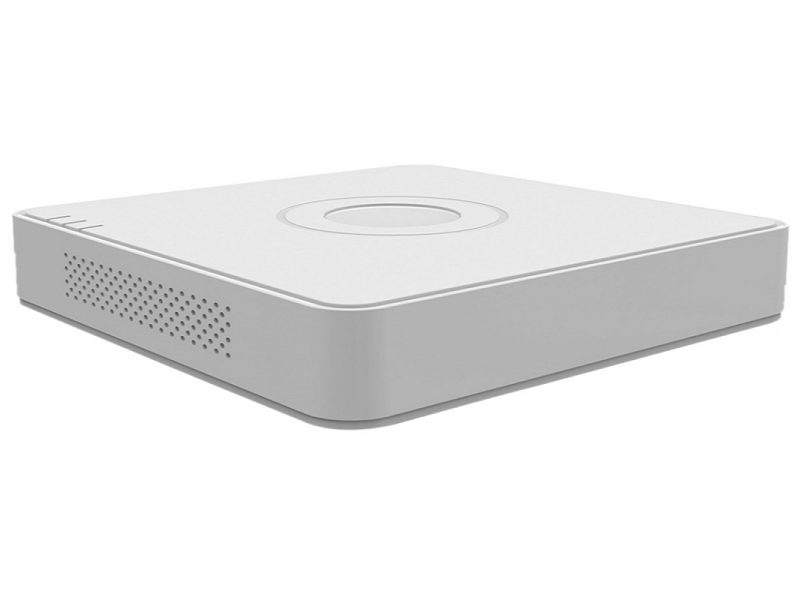

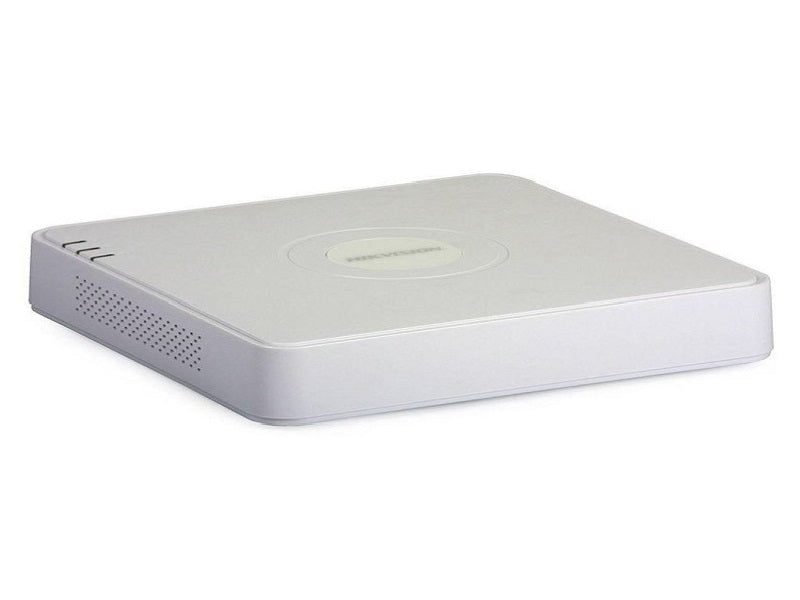

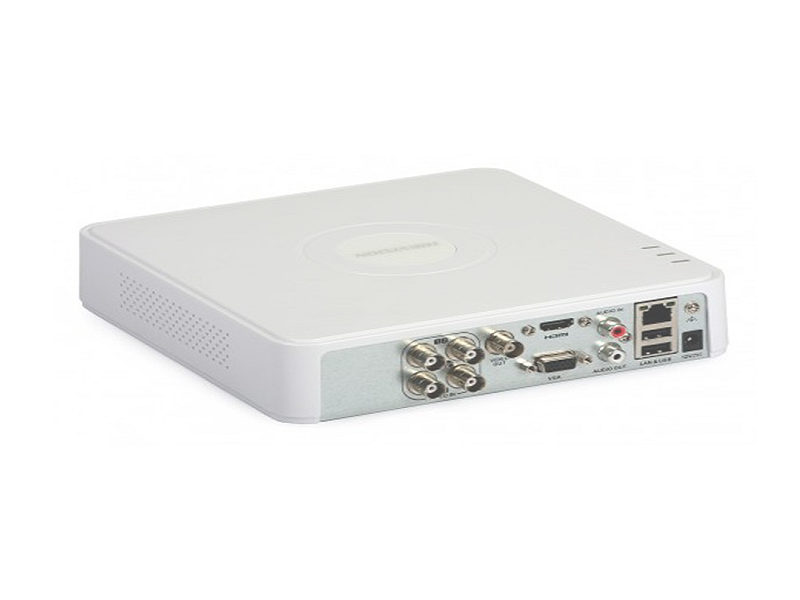

HIKVISION 4Ch Dvr Ds-7104Hghi-F1

Analog and HD-TVI video input: | 4-ch BNC interface (1.0Vp-p, 75 `d9). Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using audio input).

Key features

• HDMI/VGA Output: | 1920 `d7 1080 / 60 Hz,1280 `d7 1024 / 60 Hz, 1280 `d7 720 / 60 Hz, 1024 `d7 768 / 60 Hz
• Recording resolution: | Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: CIF / QVGA / QCIF (real-time)
• Frame Rate: | 1/16 fps ~ Real time frame rate
• Playback Resolution: | 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
• Network protocols: | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
• Hard Disk Driver
• Capacity: | Up to 6 TB capacity for each disk
• Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface
• Working Temperature: | -10 °C ~+55 °C (14 °F ~ 131 °F)
• Dimensions: | 200 `d7 200 `d7 45mm (7.9 `d7 7.9 `d7 1.8 inch)
• Weight: | ≤ 0.8 kg / 1.8 lb(without hard disks)

Specifications

• Ds7104hghif1
• 1-ch
• Video Compression: | H.264
• Supported camera types: | Supported HDTVI input: 720P/25, 720P/30,
• Supported AHD input: 720P/25, 720P/30, CVBS
• Video Input Interface: | BNC (1.0 Vp-p, 75`d9)
• Audio Compression: | G.711u
• Audio Input Interface: | RCA (2.0 Vp-p, 1 k'd9)
• Video Bit Rate: | 32 Kbps ~ 4 Mbps
• Stream Type: | Video/Video&Audio
• Audio Output: | 1-ch RCA(Linear, 1k'd9)
• Audio Bit Rate: | 64kbps
• Dual Stream: | Support
• Synchronous Playback: | 4-ch
• Remote connections: | 32
• Interface Type: | 1 SATA Interface
• USB Interface: | 2 USB 2.0 Interfaces
• Power Supply: | 12V DC
• Consumption: | ≤ 8W
• Working Humidity: | 10% ~ 90%
