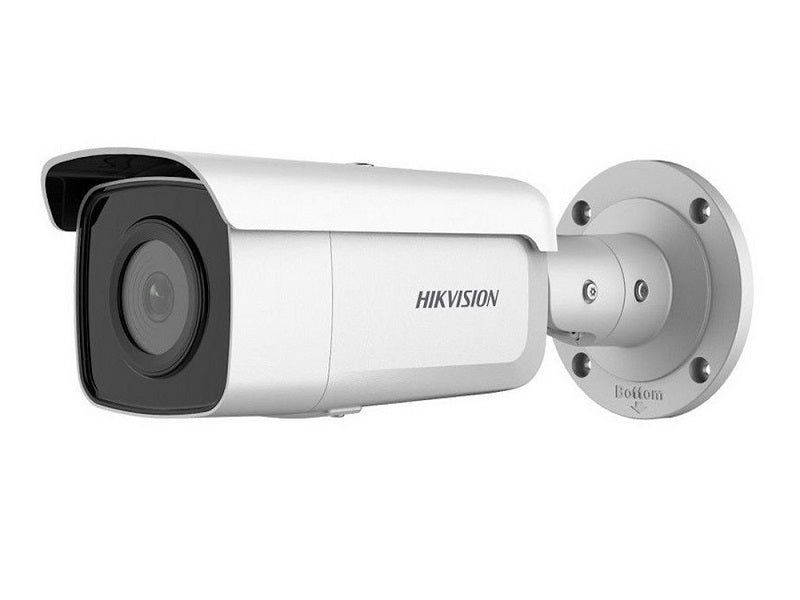

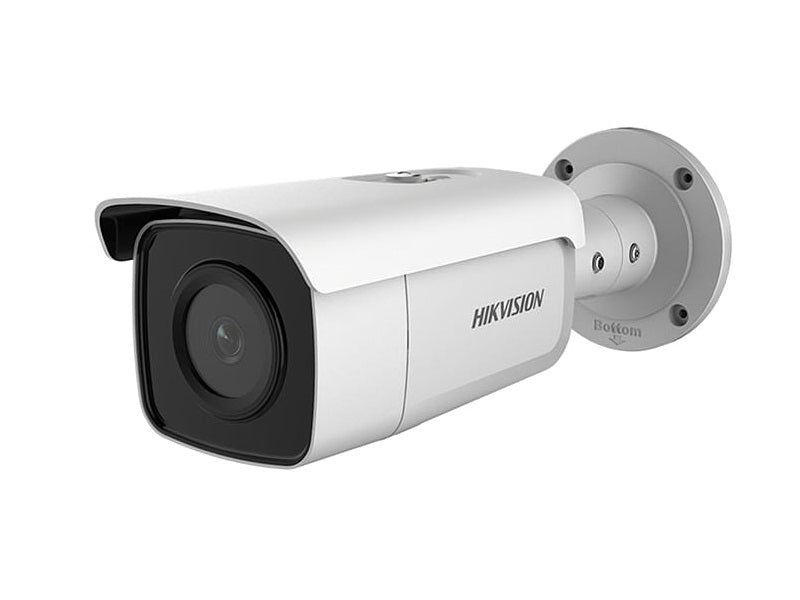

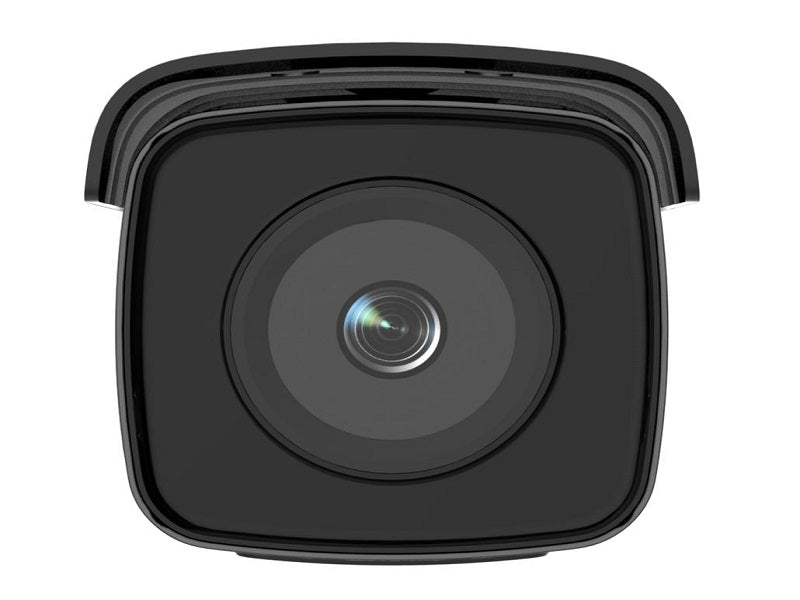

HIKVISION 4K AcuSense Fixed Bullet Ip

Clear imaging against strong back light by 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

• Excellent low-light performance with powered-by-DarkFighter technology
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0, tilt: 0`b0 to 90`b0, rotate: 0`b0 to 360`b0
• Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 111`b0, vertical FOV 59`b0, diagonal FOV 131`b0
• 4 mm, horizontal FOV 87`b0, vertical FOV 47`b0, diagonal FOV 102`b0
• 6 mm, horizontal FOV 51`b0, vertical FOV 28`b0, diagonal FOV 60`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
• 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
• 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (3840 `d7 2160, 3200 `d7 1800, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 30 fps (3200 `d7 1800, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• Target Cropping
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, NTP, upnp, smtp, igmp, 802.1X, qos, ipv4, ipv6, UDP, bonjour, ssl/tls, pppoe, snmp, ARP
• Simultaneous Live View
• API
• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in micro SD slot, up to 256 GB
• Reset Key
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
• Scene change detection
• Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
• Deep Learning Function
• Face Capture
• 12 VDC `b1 25%, 0.63 A, max. 7.5 W, `d85.5 mm coaxial power plug, reverse polarity protection
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
• 12 VDC `b1 25%, 0.88 A, max. 10.5 W, `d85.5 mm coaxial power plug, reverse polarity protection
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
• `d8105 mm `d7 290 mm (`d84.1" `d7 11.4")
• 386 mm `d7 156 mm `d7 155 mm (15.2" `d7 6.1" `d7 6.1")
• Approx. 1270 g (2.8 lb.)
• Approx. 1510 g (3.3 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Language
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Approval
• EMC
• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• Safety
• UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection

Specifications

• 4K AcuSense Fixed Bullet Network Camera
• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 1/1.8" Progressive Scan CMOS
• 3840 `d7 2160
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.6
• 2I: up to 60 m
• 4I: up to 80 m
• 850 nm
• 60 Hz: 24 fps (3840 `d7 2160)
• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• 2I:
• 4I:
• 33 languages
• IP67 (IEC 60529-2013)
