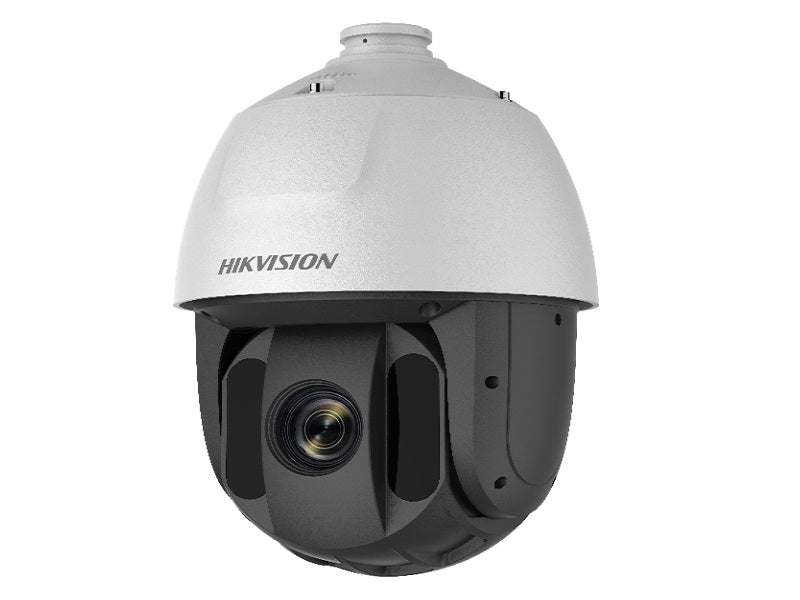

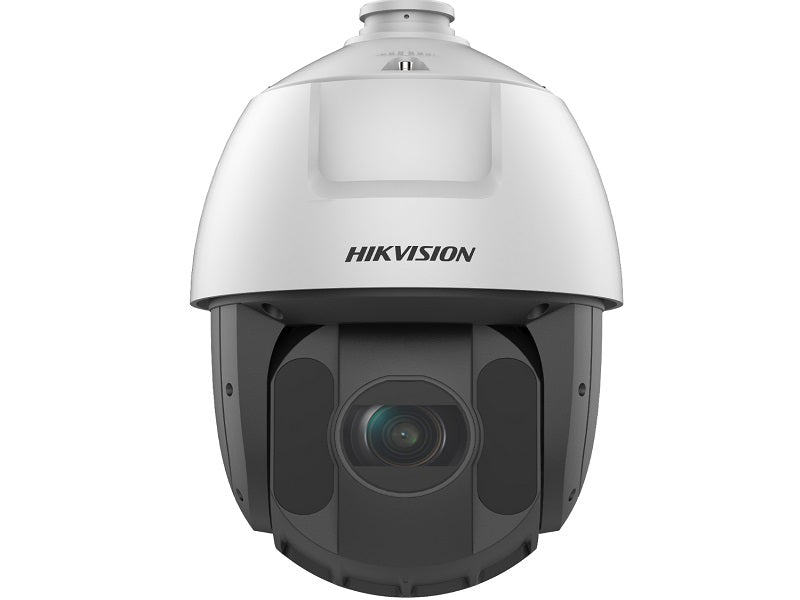

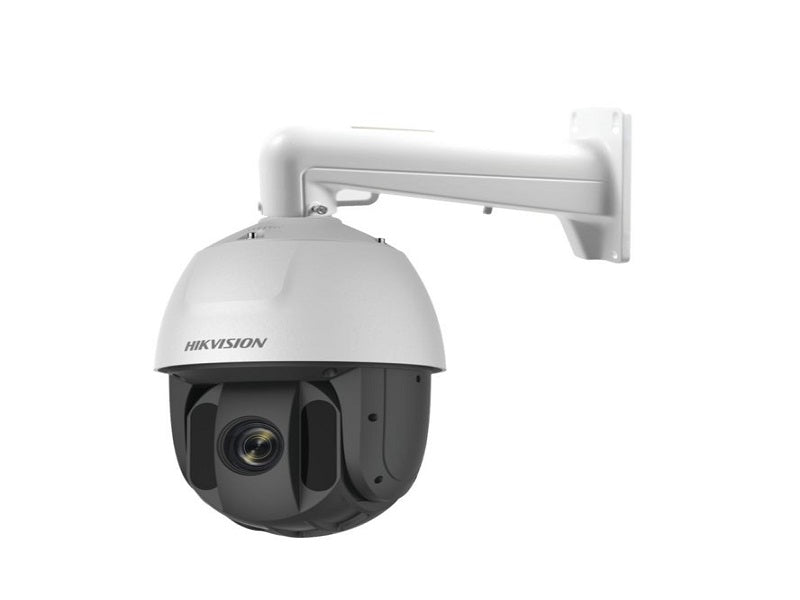

Hikvision 4Mp Ip Ptz Speed Dome 25X

5-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome. 25`d7 optical zoom and 16`d7 digital zoom provide close up views over expansive areas.

Key features

• Excellent low-light performance with powered-by-DarkFighter technology
• WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Expansive night view with up to 150 m IR distance
• Image Sensor
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed
• Slow Shutter
• Yes
• Day & Night
• IR cut filter
• Zoom
• Max. Resolution
• Focus
• Auto, semi-auto, manual
• Focal Length
• Zoom Speed
• Approx. 3.6 s
• FOV
• Max. F1.6
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• Pan speed: configurable from 0.1`b0 to 120`b0/s; preset speed: 120`b0/s
• Tilt Speed
• Tilt speed: configurable from 0.1`b0 to 80`b0/s, preset speed 80`b0/s
• Proportional Pan
• Presets
• Patrol Scan
• 8 patrols, up to 32 presets for each patrol
• Pattern Scan
• Park Action
• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• Preset Freezing
• Scheduled Task
• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Main Stream
• 50 Hz: 25 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• 60 Hz: 30 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (704 `d7 480, 640 `d7 480, 352 `d7 240)
• Third Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480, 352 `d7 240)
• Baseline profile/Main profile/High profile
• Main profile
• Scalable Video Coding (SVC)
• Region Of Interest (ROI)
• 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM)
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Protocols
• Ipv4/ipv6, http, https, 802.1x, qos, FTP, smtp, upnp, snmp, DNS, ddns, NTP, rtsp, rtcp, RTP, tcp/ip, UDP, igmp, icmp, dhcp, pppoe, bonjour, isup
• API
• Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Simultaneous Live View
• User/Host
• Up to 32 users; 3 user levels: administrator, operator, and user
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Client
• Web Browser
• IE 10-11, Chrome 57+, Firefox 52+, Safari 12+
• Image
• Day/Night Switch
• Day, Night, Auto, Schedule
• Image Enhancement
• Wide Dynamic Range (WDR)
• Defog
• Digital Defog
• Regional Exposure
• Regional Focus
• Image Settings
• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters Switch
• Privacy Mask
• 24 programmable polygon privacy masks, mask color or mosaic configurable
• SNR
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Alarm
• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K'd9 `b1 10%;
• 1 output (line out), line level, output impedance: 600 `d9
• Reset
• Event
• Basic Event
• Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event
• Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Alarm Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
• 24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
• 30 `b0C to 65 `b0C (-22 `b0F to 149 `b0F). Humidity 90% or less (non-condensing)
• Demist
• Metal
• `d8 210 mm `d7 344.7 mm (`d8 8.27" `d7 13.57")
• Approx. 3.0 kg (6.61 lb.)
• Approval
• Protection
• IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Specifications

• 1/2.8" Progressive Scan CMOS
• High quality imaging with 4 MP resolution
• 24 VAC & PoE (802.3at)
• Efficient H.265+/H.265 compression technology
• 1/2.8″ Progressive Scan CMOS
• 1 s to 1/30,000 s
• 25x optional, 16x digital
• 2560 `d7 1440
• Lens
• 4.8 mm to 120 mm
• Horizontal field of view: 55`b0 to 2.4`b0 (wide-tele),
• Vertical field of view: 33`b0 to 1.4`b0 (wide-tele),
• Diagonal field of view: 61.5`b0 to 2.8`b0 (wide-tele)
• Aperture
• IR Distance: up to 150 m
• 360`b0
• 15`b0 to 90`b0 (auto flip)
• 300
• 4 pattern scans
• 3D Positioning
• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264/MJPEG
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• 8 fixed regions for each stream
• G.711/g.722.1/g.726/mp2l2/pcm
• 8 kHz/16 kHz/32 kHz/48 kHz
• Up to 20 channels
• iVMS-4200, HikCentral Pro, Hik-Connect
• BLC, HLC, 3D DNR
• 120 dB
• `a3`be52 dB
• 1 RJ45 10M/100M self-adaptive Ethernet port
• 2 inputs, 1 output
• Material
