Hikvision 64Ch 1.…
9% OFF

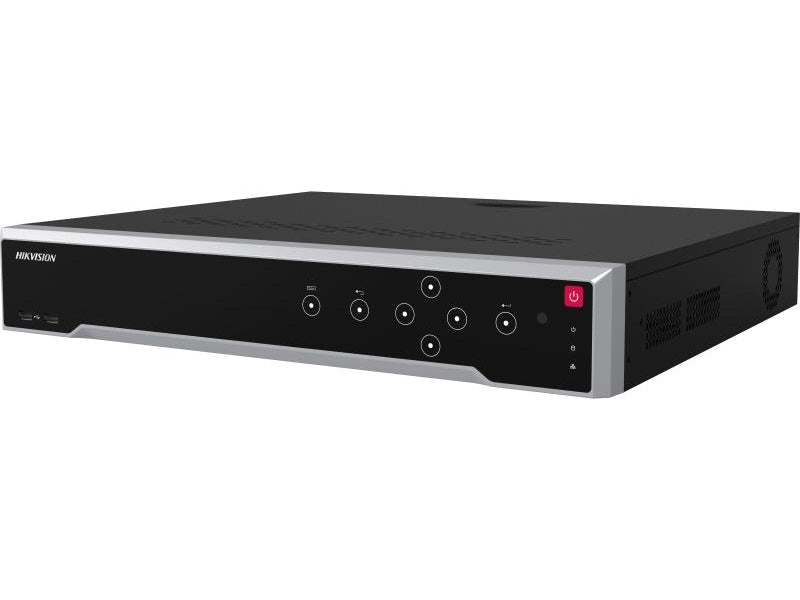

Hikvision 64Ch 1.5U 8K Nvr

Hikvision 64Ch 1.5U 8K Nvr

HIKVISION
R 19,999R 21,999
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 19,999

Description

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity. Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth.

Key features

  • 2 HDMI and 1 VGA interfaces, 8K or dual 4K video outputs
  • : After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Incoming Bandwidth
  • Outgoing Bandwidth
  • 8K (7680 `d7 4320)/30Hz, 4K (3840 `d7 2160)/60Hz, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, 1600 `d7 1200/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • 4K (3840 `d7 2160)/60Hz, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, 1600 `d7 1200/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • : When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
  • 1920 `d7 1080/60Hz, 1600 `d7 1200/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • 1-ch, BNC (1.0 Vp-p, 75 `d9), resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9, using the audio input)
  • Decoding
  • Decoding Format
  • Recording Resolution
  • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 mp/1080p/uxga/720p/vga /4cif/dcif/ 2cif/cif/qcif
  • Synchronous Playback
  • Decoding Capability
  • 2-ch@32 MP (30 fps)+2-ch@8MP'a3`a830fps'a3`a9/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
  • Dual-Stream Recording
  • Support
  • Stream Type
  • Remote Connection
  • Tcp/ip, dhcp, ipv4, ipv6, DNS, ddns, NTP, rtsp, sadp, smtp, snmp, NFS, iscsi, isup, upnp™, http, https
  • Raid
  • RAID Type
  • N/A
  • Esata
  • Sata
  • Up to 16 TB capacity for each HDD
  • Alarm In/Out
  • Front panel: 2 `d7 USB 2.0; Rear panel: 1 `d7 USB 3.0
  • Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
  • : The Ctrl 12V power is controlled by alarm output 9.
  • 100 to 240 VAC, 50 to 60 Hz
  • Consumption
  • Working Temperature
  • 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
  • Working Humidity
  • Chassis
  • 445 `d7 400 `d7 75 mm ( 17.5"`d7 15.7" `d7 3.0")
  • FCC
  • CE

Specifications

  • Ds-7764ni-m4
  • 64-ch 1.5U 8K NVR
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 64-ch IP camera inputs
  • 64-ch
  • Up to 32 MP resolution
  • 400 Mbps
  • HDMI 1 Output
  • HDMI 2 Output
  • HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
  • 1-ch, RCA (Linear, 1 K'd9)
  • H.265+/h.265/h.264+/h.264
  • 16-ch
  • G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • 128
  • 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
  • 1 eSATA interface
  • 4 SATA interfaces
  • Capacity
  • 2 RS-485 (half-duplex), 1 RS-232
  • 16/9
  • Ctrl 12V
  • DC 12V
  • 12 VDC, 1 A power output
  • ≤ 15 W (without HDD)
  • 10% to 90%
  • 19-inch rack-mounted 1.5U chassis
  • Dimension (W `d7 D `d7 H)
  • ≤ 5 kg (without HDD, 11 lb.)
  • Part 15 Subpart B, ANSI C63.4-2014
  • EN 55032:2015+A1:2020, eniec61000-3-2:2019+a1:2021, EN 61000-3-3:2013+A1:201
  • 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Security & Surveillance / Specials
Brand Hikvision
Model DS-7764NI-M4
Channels 64 IP camera inputs
Resolution Up to 32 MP
Incoming Bandwidth 400 Mbps
Outgoing Bandwidth 400 Mbps
Video Outputs 2 HDMI (8K/4K), 1 VGA
Storage 4 SATA (up to 16 TB each)
Network 2 x RJ-45 10/100/1000 Mbps
Alarm In/Out 16/9
Power Input 100-240 VAC, 50/60 Hz
Dimensions 445 x 400 x 75 mm
Weight <= 5 kg
Form Factor 1.5U rack-mounted
Barcode 6931847188122
