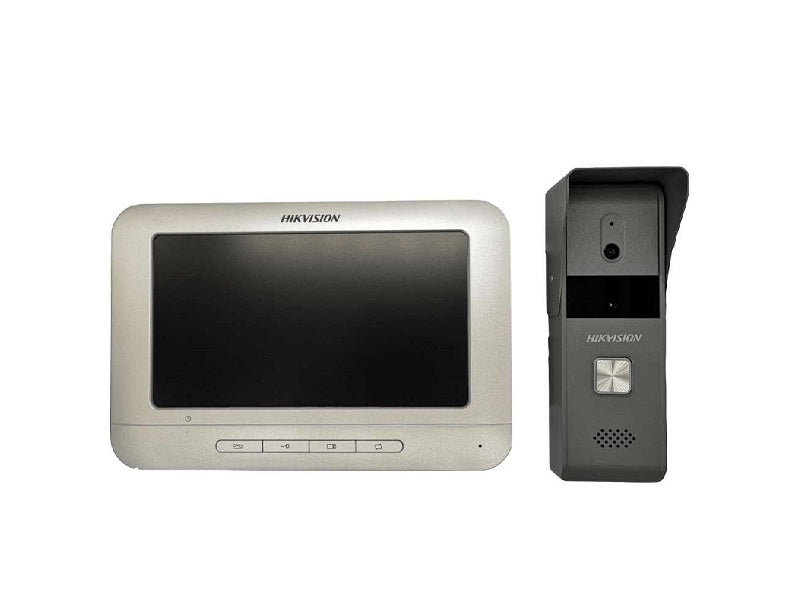

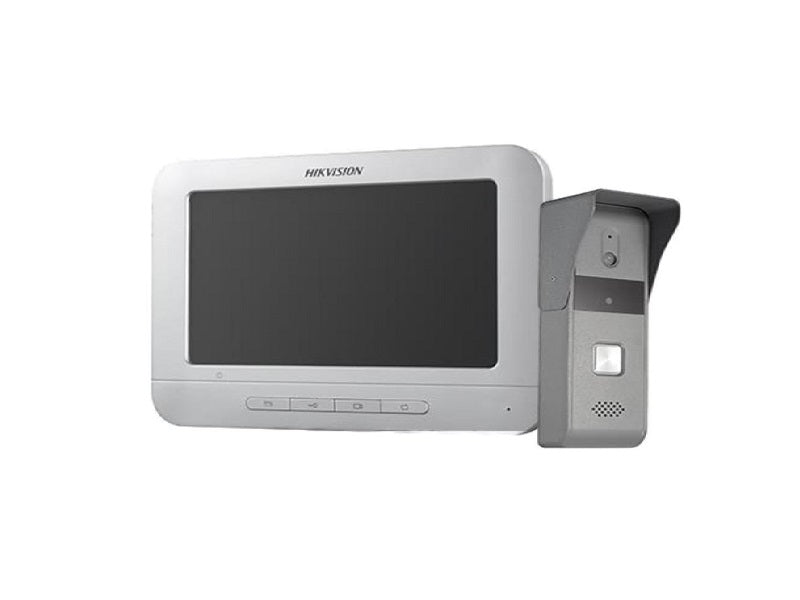

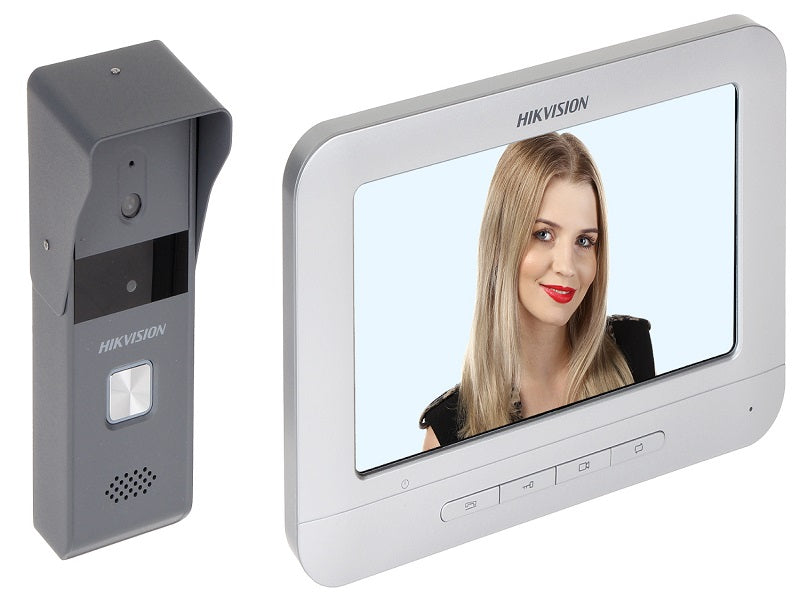

HIKVISION 7 Inch Video Intercom Kit

Video Doorphone set of the Hikvision brand with a door station mounted in a surface housing and a 7" colored screen. The DS-KIS203 doesn't need any additional configuration (after connecting according to the diagram the device is ready to operate). ATTENTION! The device does not support the HIKVISION IP system.

Key features

• Hands-free video intercom communication
• Support monitoring the door station and the external analog camera
• Remote unlocking
• Convenient installation
• Self- adaptive IR supplement
• One-touch calling
• Pinhole camera with 720 x 576 @ 25 fps
• Unlock controlling
• Search for similar
• Video output: 1 Vpp, CVBS - pair of wires
• compatible with HIKVISION analog video door-phone system
• Plug & Play,
• Ultra-flat hands-free monitor, with speakerphone,
• Smooth volume control,
• Microphone built-in,
• Bidirectional communication

Specifications

• Ds-kis203 1 indoor + 1 door station
• Sensor: 1/4 " CMOS
• Operation temp: -30 `b0C ... 70 `b0C
• Power supply: 12 V DC
• Power consumption: ≤ 5 W (operation)
• 4-wire cable installation : 5 m (included)
• Housing: Metal, Waterproof
• Color: Graphite
• "Index of Protection": IP65
• Weight: 0.46 kg
• Dimensions: 145 x 49 x 27 mm
• Shield: 7 " TFT-LCD color matrix
• Resolution: 800 x 480
• Max. current: 420 mA
• Power consumption: ≤ 5 W
• Operation temp: -10 `b0C ... 55 `b0C
• Weight: 0.278 kg
• Dimensions: 196 x 133 x 18 mm
• Manufacturer / Brand: HIKVISION
• SAP Code: 305300749
