HIKVISION 8 Ch

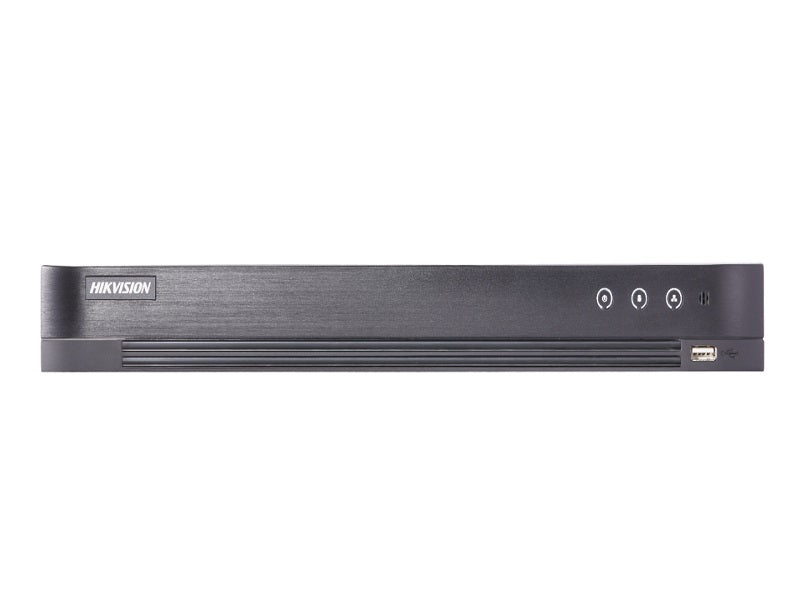

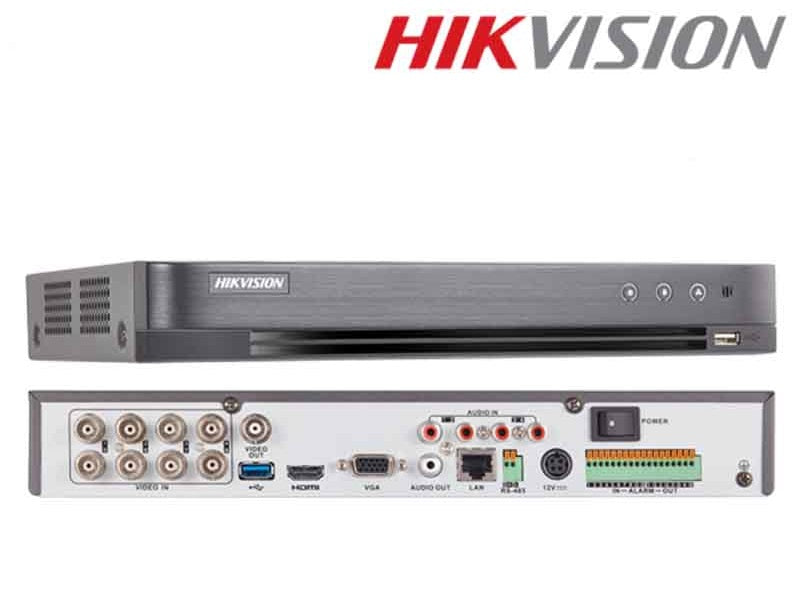

HIKVISION 8 Ch Dvr 8Mp/5Mp 2X Sata Turbo
HIKVISION 8 Ch Dvr 8Mp/5Mp 2X Sata Turbo

HIKVISION 8 Ch Dvr 8Mp/5Mp 2X Sata Turbo

HIKVISION
R 2,999
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 2,999

Description

Analog and HD-TVI video input: 8-ch,BNC interface (1.0Vp-p, 75 `d9)connection. Supported camera types: Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,.

Key features

  • Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 K'd9), (using the 1st channel of audio input)
  • HDMI/VGA Output: VGA: 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • HDMI: 1-ch, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 k'd9) (using the audio input)
  • Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
  • Hard Disk Driver
  • Network Interface: 1; 10M / 100M / 1000M self-adaptive Ethernet interface
  • USB Interface: 1 USB 2.0 Interface & 1 USB 3.0 Interface
  • Working Temperature: -10 oC to 55 oC (14 oF to 131 oF)
  • Dimensions: 380 `d7 320 `d7 48 mm (15.0 `d7 12.6 `d7 1.9 inch)

Specifications

  • H.265 4K resolution
  • Audio Input: 8-ch
  • Video Compression: H.265 /H.265/H.264 /H.264
  • Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
  • Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
  • Video Input Interface: BNC (1.0 Vp-p, 75`d9)
  • Audio Compression: G.711u
  • Audio Input Interface: 4-ch, RCA (2.0 Vp-p, 1 K'd9)
  • CVBS Output: 1-ch,BNC(1.0Vp-p,75`d9),resolution:PAL:704`d7576,NTSC:704`d7480
  • Recording resolution: 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream:
  • 5 MP@12fps/4 MP@15fps/3 MP@18fps
  • 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  • WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Video Bit Rate: 32 Kbps-10 Mbps
  • Stream Type: Video/Video&Audio
  • Audio Output: 1-ch RCA(Linear, 1k'd9)
  • Audio Bit Rate: 64kbps
  • Dual Stream: Support
  • Playback Resolution: 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
  • Synchronous Playback: 8-ch
  • Remote connections: 128
  • Interface Type: 2 SATA Interfaces
  • Capacity: Up to 8 TB capacity for each disk
  • Serial Interface: 1; standard RS-485 serial interface, half-duplex
  • Alarm Input: 8-ch
  • Alarm Output: 4-ch
  • Power Supply: 12 VDC
  • Consumption: ≤ 20W(without hard disks)
  • Working Humidity: 10% to 90%
  • Weight: ≤ 1.78 kg (3.9 lb)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision DVRs / Security & Surveillance
Brand Hikvision
Channels 8-ch
Compression H.265/H.264
Signal Inputs HDTVI/AHD/CVI/CVBS
Max Resolution 8MP/5 MP
Recording Resolution 5/4/3 MP/1080p/720p
HDMI Output 4K (3840x2160)/30Hz
Video Bit Rate 32 Kbps-10 Mbps
Storage 2 SATA, up to 8 TB each
Network 10/100/1000 Mbps Ethernet
USB 1 USB 2.0 + 1 USB 3.0
Alarm I/O 8-in / 4-out
Power 12 VDC
Dimensions 380 x 320 x 48 mm
Weight <= 1.78 kg
Barcode 6941264022725
