HIKVISION Ax Pro

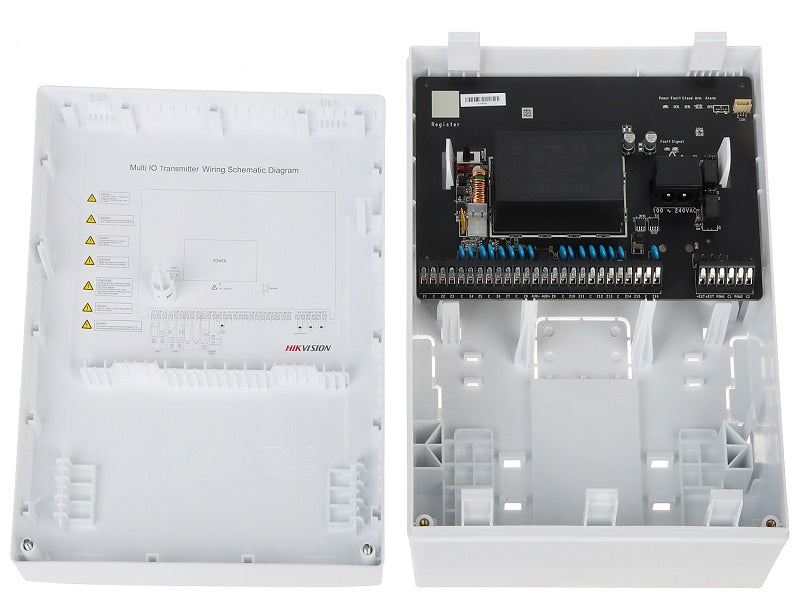

HIKVISION Ax Pro Multi Io Transmitter
HIKVISION Ax Pro Multi Io Transmitter

HIKVISION Ax Pro Multi Io Transmitter

HIKVISION
R 2,399
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 2,399

Description

With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors. With two 12v power outputs, can be used to power up external wired detectors.

Key features

  • Wireless intrusion alarm
  • Multi IO transmitter
  • LED display, show the real status of device
  • Large space for back up storage battery
  • End of Line Resistance
  • No/nc
  • Tamper-Proof
  • Front and rear
  • Electrical characteristics
  • Operation humidity
  • Operation temperature
  • Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)
  • 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
  • Wireless transmission
  • RF frequency
  • RF method
  • Two-way communication
  • RF modulation
  • RF distance
  • Indicator
  • Installation method
  • Wall Mounting
  • Shell material
  • Plastic
  • White

Specifications

  • 868MHz two-way wireless communication
  • 1k 2.2k 4.7k 8.2k
  • 1
  • 1, 12 VDC input
  • 16
  • 2
  • 2 (12v, total1A)
  • Battery type
  • Compatible with 12v 7 Ah
  • 150 `d7 64 `d7 94 mm
  • 100-240VAC'a3`ac30w
  • 10%~90%
  • –10 ~ 40`b0C
  • Battery life span
  • Up to 36 hours
  • 868MHz
  • 2gfsk
  • 1100m
  • 3: Power'a3`a8Green'a3`a9, Fault'a3`a8Amber'a3`a9, Signal Strength'a3`a8Green/Red'a3`a9
  • Dimension(WxHxD)
  • 261*199*86.4mm
  • Color
  • 975 g (without battery)
  • 3024g (with battery)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision Alarm Systems / Security & Surveillance
Brand Hikvision
Power Supply 100-240 VAC, 30W
Battery Type 12V 7Ah compatible
Battery Life Up to 36 hours
Alarm Inputs 16
Alarm Outputs 2
Power Outputs 2 (12V, total 1A)
RF Frequency 868 MHz
RF Modulation 2GFSK
RF Distance 1100 m
Operating Temperature -10C to 40C
Operating Humidity 10% to 90%
Dimensions 261 x 199 x 86.4 mm
Material Plastic
Color White
Weight 975 g (without battery)
Barcode 6931847131166
