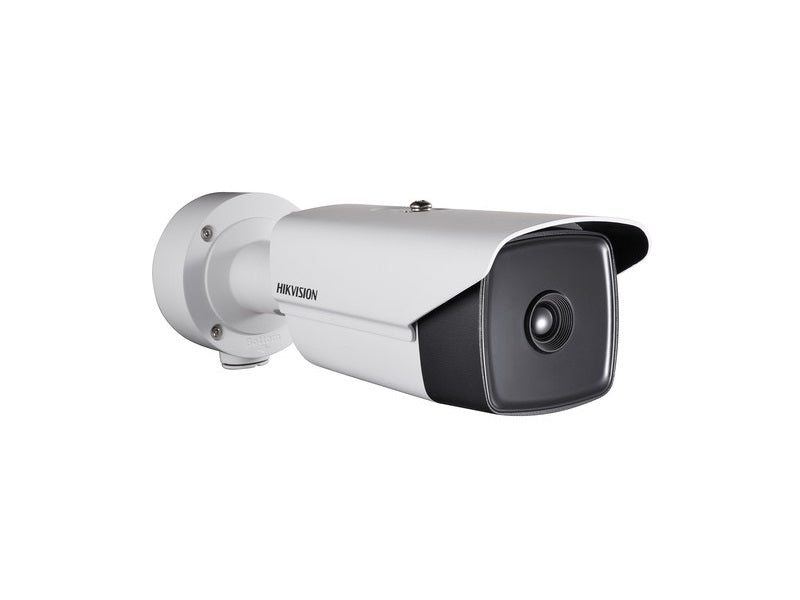

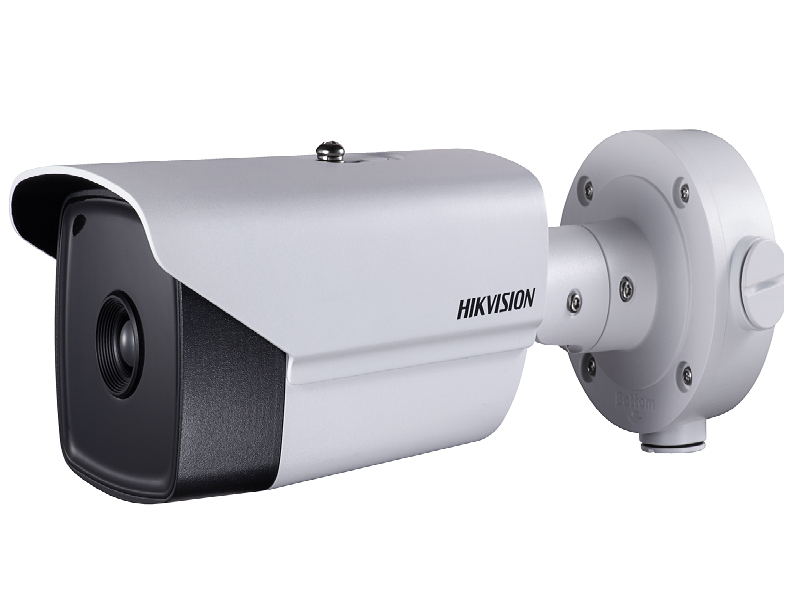

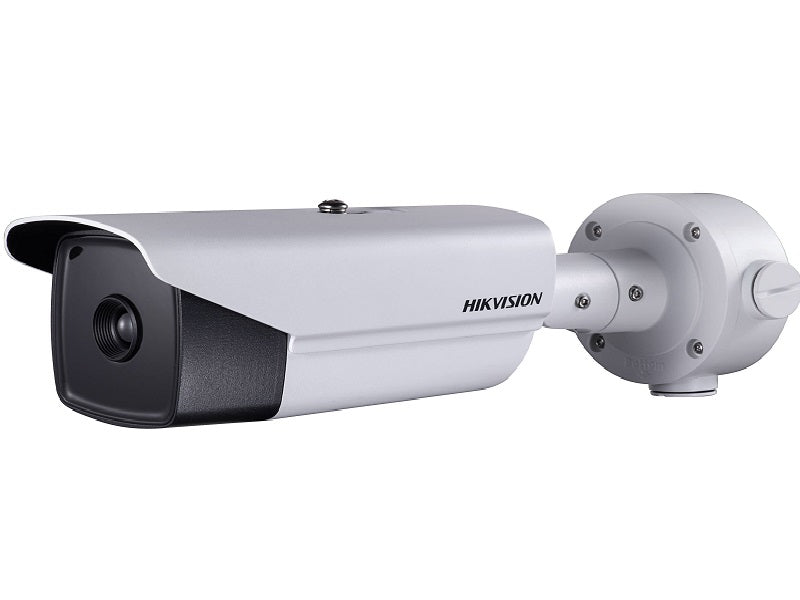

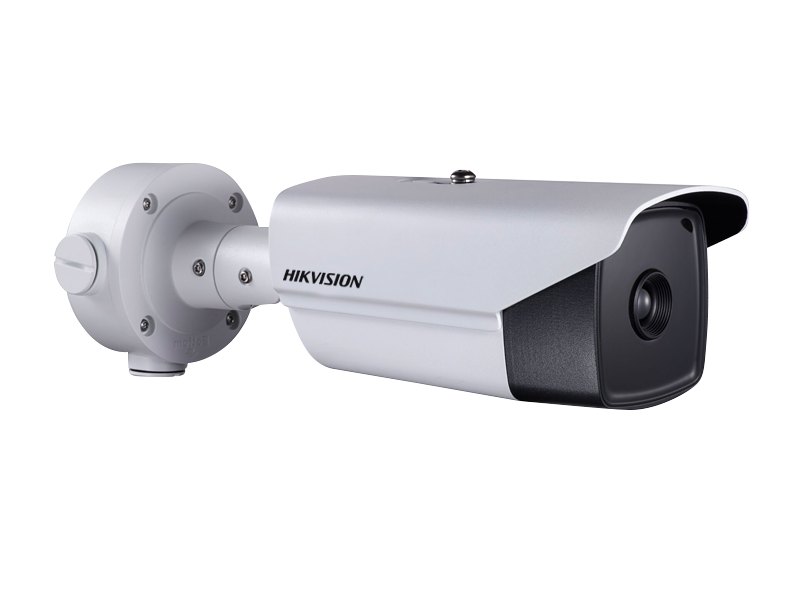

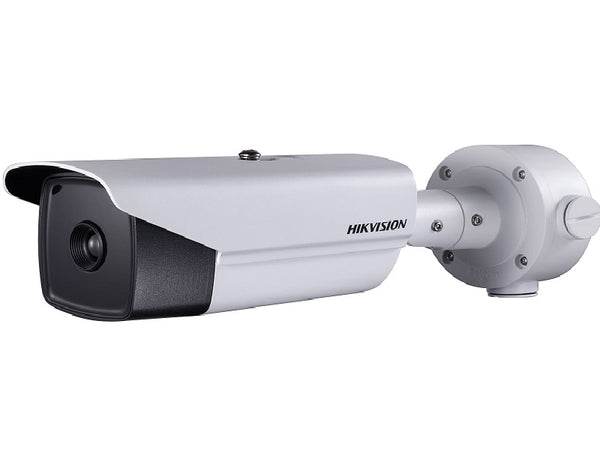

HIKVISION Bullet Ip Thermal Camera
HIKVISION Bullet Ip Thermal Camera
HIKVISION Bullet Ip Thermal Camera
HIKVISION Bullet Ip Thermal Camera

HIKVISION Bullet Ip Thermal Camera

HIKVISION
R 28,749
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 28,749

Description

Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA. Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).

Key features

  • Thermal Module
  • Vanadium Oxide Uncooled Focal Plane Arrays
  • Max. Resolution:
  • Min. Focusing Distance:
  • Smart Function
  • rules
  • 20 `b0 C to 150 `b0 C (-4 `b0 C to 302 `b0 F)
  • Ipv4/ipv6, http, https, 802.1x, qos, FTP, smtp, upnp, snmp, DNS, ddns,ntp, rtsp,rtcp, RTP, TCP, UDP, igmp, icmp, dhcp, pppoe
  • User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
  • IP address filtering
  • Integration
  • Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email
  • linkage
  • 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1K'd9`b110%
  • Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording
  • Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
  • 24 VAC'b1 25%: 0.84 A, 12 VDC `b1 20%: 1.7 A, max. 8W (20W with De-icing Heater On),
  • PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
  • 24 VAC'b1 25%, 12 VDC'b1 20%, two-core terminal block PoE (802.3at, class 4)
  • English
  • From -40 `b0 C to 65 `b0 C (-40 `b0 F to 149 `b0 F); Humidity: 90% or Less
  • IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • 314mm `d7 104mm `d7 292.7mm (12.36″ `d7 4.09″ `d7 11.52″)
  • Smart Functions Range
  • Wide Range Coverage

Specifications

  • 384*288
  • 17um
  • 8um to 14um
  • < 40mk(@25`b0C,F#=1.0)
  • 15mm
  • 1.13 mrad
  • 24.55`b0x 18.54`b0
  • 2.5m
  • 1.0
  • `b18 `b0 C (14.4 `b0 F)
  • Support 10 fire points
  • 50fps(384 `d7 288)
  • H.265/H.264/MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile
  • G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Up to 20-ch
  • Up to 32 users, 3 levels: Administrator, Operator, User
  • 2-ch Inputs (0-5V DC)
  • 2-ch relay outputs, alarm response actions configurable
  • Linear Level; Impedance: 600`d9
  • Built-in RJ45; 10M/100M Ethernet Interface
  • 1 RJ45 10M/100M Self-adaptive Ethernet interface
  • 1.0V [p-p]/75`d9, PAL/NTSC/BNC
  • iVMS-4200
  • IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
  • 2kg (4.41lb)
  • 450m
  • 150m
  • Temperature measurement (Object:2*2m):
  • 351m
  • Temperature measurement (Object:1*1m):
  • 177m
  • Fire Detection (Object:2`d7 2 m):
  • 882m
  • Fire Detection (Object:1`d7 1 m):
  • 441m
  • 1353m
  • 338m
  • 110m
  • 169m
  • 55m

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision IP Cameras / Security & Surveillance
Brand Hikvision
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max Resolution 384 x 288
Detector Pitch 17 um
Response Waveband 8 um to 14 um
NETD < 40 mK (25 C, F#=1.0)
Focal Length 15 mm
Field Of View 24.55 x 18.54 degrees
Temperature Range -20 C to 150 C
Temperature Accuracy +/- 8 C
Power 24 VAC / 12 VDC / PoE (802.3at)
Storage microSD up to 128 GB
Operating Temperature -40 C to 65 C
Protection IP66
Dimensions 314 x 104 x 292.7 mm
Weight 2 kg
Barcode 6954273633202
