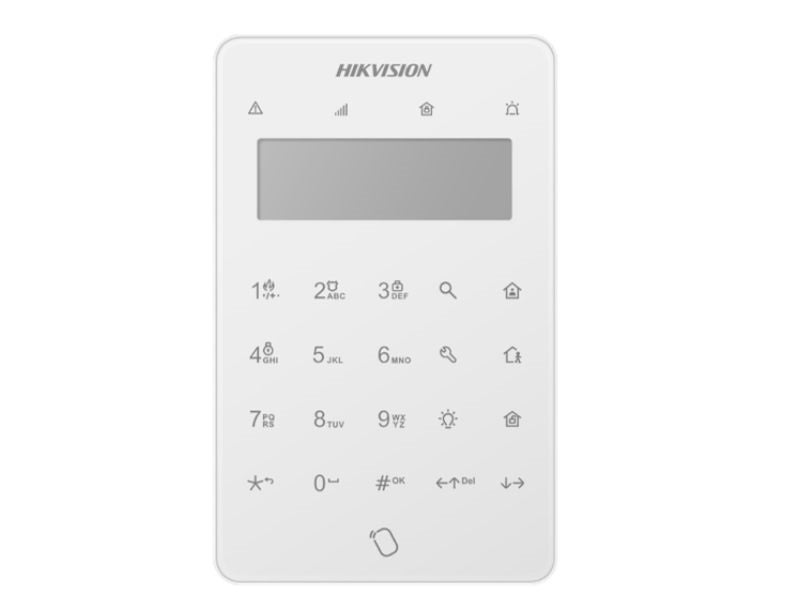

HIKVISION Bus Lcd Keypad

HIKVISION Bus Lcd Keypad

HIKVISION
R 1,149R 1,499
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,149

Description

1 buzzer and 4 status LED indicators including Fault(orange), Signal(green), Arm(blue)/Disarm(green), Alarm(red). Touch Sensing Buttons, including 0~9, *, # and functional keys (e.g. Query, Engineering, Output, Away Arm, Stay Arm, Disarm, Left, Right).

Key features

  • Electric Fencing Products
  • Wired LCD Keypad
  • Modern touch button design
  • Supports electric fence voltage regulation
  • Supports electric fence alarm event query
  • Supports battery power inquiry
  • Supports tag reader
  • Detachable terminals for easy wiring
  • Sliding back cover for simplified installation
  • Peripherals
  • Wireless keyfob
  • Monochrome LCD
  • Indication
  • Key button
  • Authentication
  • Tag
  • Keyfob
  • PIN
  • Bus interconnection
  • Bus technology
  • Bus wiring
  • 4-Core Alarm Cable (at least 2 `d7 0.5 mm'b2 + 2 `d7 0.22 mm'b2)
  • Wireless interconnection
  • Wireless technology
  • Transmission modulation
  • Transmission range
  • 12 VDC nominal (9-16 VDC), powered by bus
  • Quiescent current
  • Max. current
  • 10`b0C to 50`b0C (14`b0F to 122`b0F), indoor use only
  • Relative humidity
  • Physical
  • Tamper-proof
  • Front and Rear
  • Installation method
  • Wall mount
  • Compliance
  • Electrical conformity
  • CE, CB

Specifications

  • Supports keyfob control (868MHz)
  • 16
  • Support M1 Card
  • Compatible with DS-PKF1-WE / DS-PKF1-WE(B)
  • 4~6 digits
  • Half-Duplex RS-485
  • Frequency
  • 433.1-433.7 MHz
  • Tri-X, 2-way encrypted wireless, radio frequency hopping
  • 2gfsk
  • 500 m (open area)
  • 40 mA @12VDC
  • 200 mA @12VDC
  • 20`b0C to 60`b0C (-4`b0F to 140`b0F)
  • 10% ~ 90% non-condensing
  • Dimension (W `d7 H `d7 D)
  • 175 `d7 110 `d7 27 mm
  • 301 g

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision Alarm Systems / Security & Surveillance / Specials
Brand Hikvision
Type Wired LCD Keypad
Display Monochrome LCD
Keys Touch sensing buttons
Wireless Keyfob Support 16
Tag Support M1 Card
PIN Length 4-6 digits
Bus Technology Half-Duplex RS-485
Frequency 433.1-433.7 MHz
Transmission Range 500 m (open area)
Input Voltage 12 VDC (9-16 VDC)
Max Current 200 mA @12VDC
Operating Temperature -10°C to 50°C
Dimensions 175 x 110 x 27 mm
Weight 301 g
Installation Wall mount
Barcode 6942640547672
