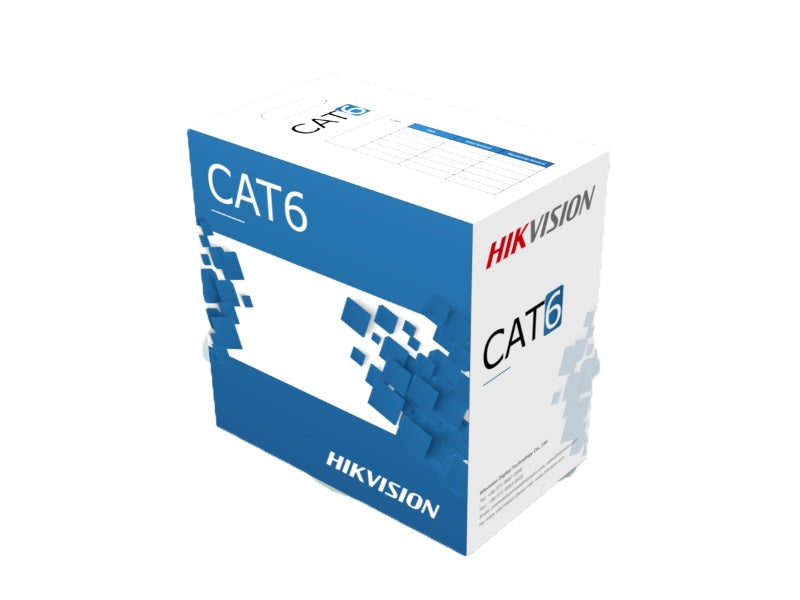

HIKVISION Cat6-23Awg 4P White 305 Mtr
HIKVISION Cat6-23Awg 4P White 305 Mtr
HIKVISION
R 2,799
Estimated delivery
2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
Out of stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
305 m CAT6 UTP Network Cable (Solid Copper, 0.53 mm, CM). 1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,.
Key features
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
- Core Color
- Packing
- Wooden Tray & Carton
- Per request
- Packing Length
- Rip-Cord
- Yes
- Drain Wire
- No
- Sheath Physical Properties
- Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃`d7hrs) 100℃`d724h'd710d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20`b12℃`d74h) 8`d7Cable O.D.`a3`acNo visible cracks,
- 1.0-250.0MHz Impedance ((`d9) 100`b115,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (`d9/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,
- Conductor
- Nom.O.D.(Mm)
- Insulation
- Hdpe
- Sheath
- Thickness
- External O.D.
- Surface
- Clean,Frap,Satiation
- PVC(complies RoHS), CM
- Surface Printing
- Letter Height
- Black
- Print Error & Space
Specifications
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.53mm
- 305`b11.5m
- Electrical Characteristics (20℃)
- Material
- SOLID-Bare Copper,Content 99.95%,
- 0.530`b10.005
- Diameter
- 0.95`b10.05mm
- 0.55`b10.05 mm
- 5.8`b10.4mm
- Color
- White RAL9003
- 3.0`b10.3mm
- ≤`b10.5%`a3`ac1m
