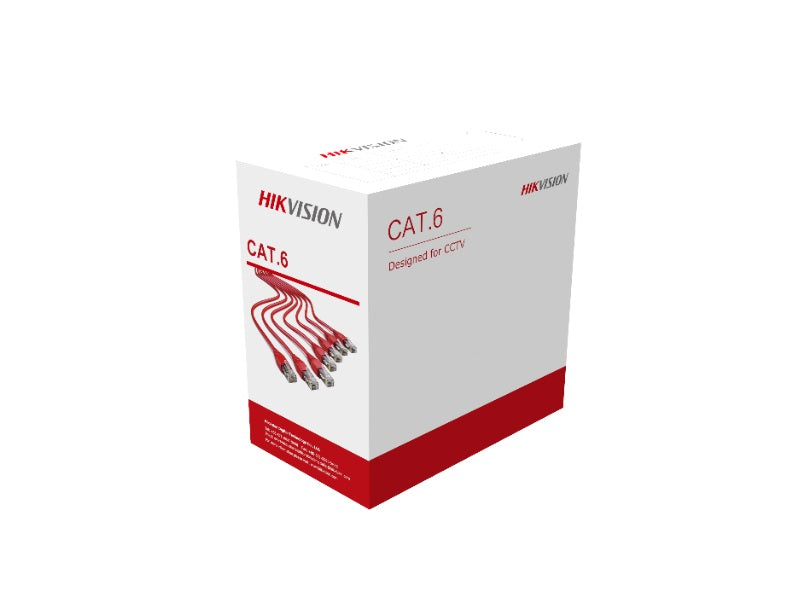

HIKVISION Cat6-23Awg 4Pr Orang305 Mtr

305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm, Orange). Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.

Key features

• Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50`b0C high temperature
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)
• Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance
• Rip-Cord
• Yes
• Category
• Sheath Printing
• HIKVISION 4PR 23AWG 75`b0C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
• Reference Standard
• Fire Resistance
• No
• Separator
• Conductor
• Insulation
• Hdpe
• Sheath Physical Properties
• Before Aging
• Aging Period
• After Aging
• Cold Bend
• 20 `b1 2`b0C `d7 4h, 8 `d7 cable O.D, no visible cracks
• 100 `b1 15 `d9 @ ≤ 100 MHz
• DC Resistance
• DC Conductor Resistance Unbalance
• 400 mm (W) `d7 400 mm (H) `d7 240 mm (D) (15.75" `d7 15.75" `d7 9.45")
• Cable Length
• Ambient Temperature
• Sheath
• Thickness
• PVC
• Orange

Specifications

• Compliant with RoHS 2.0
• Cat.6
• Iso/iec11801, ansi/tia-568-c.2, rohs 2.0
• Material
• Solid-Bare Copper (99.95%)
• Diameter
• 0.55 `b1 0.005 mm, 23 AWG
• 0.98 `b1 0.05 mm
• Tensile strength ≥ 13.5 Mpa
• Elongation ≥ 150%
• 100`b0C `d7 24h `d7 10d
• Tensile strength ≥ 12.5 Mpa
• Elongation ≥ 125%
• Electrical Characteristics(20℃)
• 1.0-250.0 MHz Impedance
• 100 `b1 25 `d9 @100-250 MHz
• 1.0-250.0 Mhz Delay Skew
• ≤ 45 ns/100 m
• ≤ 9.38 `d9/100 m
• ≤ 5.0%
• 12.3 `b1 0.5kg
• (305 `b1 1.5) m
• 20`b0C to 75`b0C (-4`b0F to 167`b0F)
• 60 V
• 0.50 `b1 0.10 mm
• Color
• 6.00 `b1 0.30 mm
