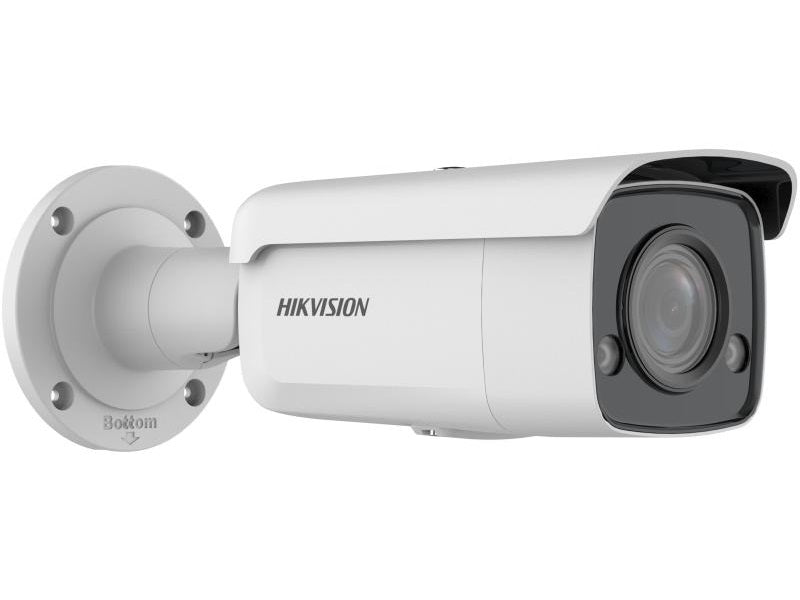

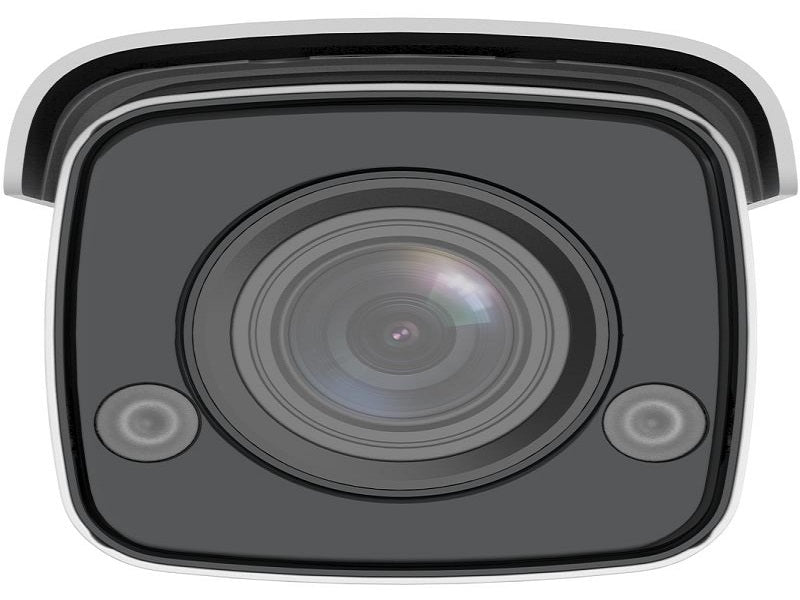

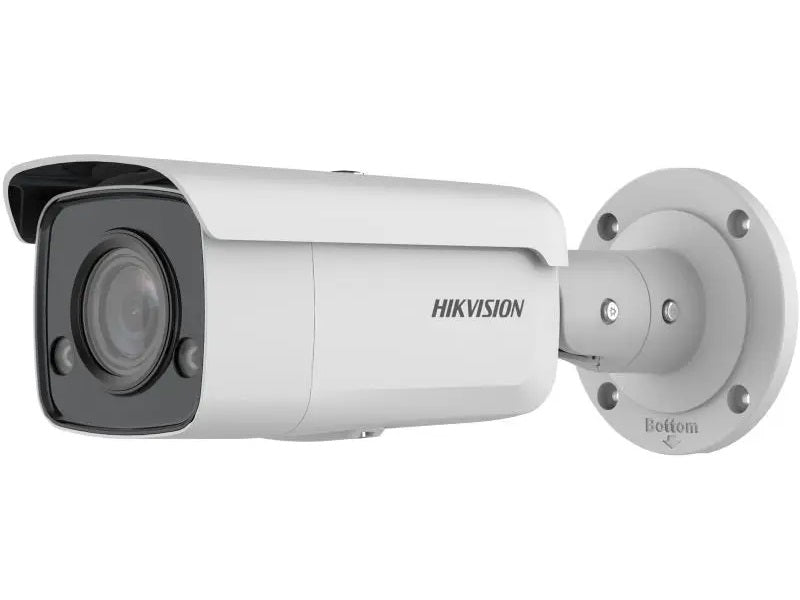

HIKVISION Colorvu 8Mp Fixed Bullet

Clear imaging against strong back light due to 130 dB WDR technology. Focus on human and vehicle classification based on deep learning.

Key features

• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Time
• Angle Adjustment
• Pan: 0`b0 to 355`b0, tilt: 0`b0 to 90`b0, rotate: 0`b0 to 360`b0
• Focal Length & FOV
• 2.8 mm: horizontal FOV102`b0, vertical FOV 52`b0, diagonal FOV 124`b0
• 4 mm: horizontal FOV 88`b0, vertical FOV 47`b0, diagonal FOV 104`b0
• 6 mm: horizontal FOV 54`b0, vertical FOV 30`b0, diagonal FOV 62`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m
• 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m
• 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• Main Stream
• 25 fps (3840 `d7 2160, 3200 `d7 1800 , 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 30 fps (3200 x 1800 , 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 x 1080 , 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 x 1080 , 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region Of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, NTP, upnp, smtp, igmp, 802.1X, qos, ipv4, ipv6, UDP, bonjour, ssl/tls, pppoe, snmp
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client
• Web Browser
• Image
• Image Parameters Switch
• Image Settings
• Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
• Reset Key
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event
• Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
• Scene change detection
• Linkage
• Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email
• Deep Learning Function
• Face Capture
• 12 VDC `b1 25%, 0.7 A, max. 8.5 W, `d85.5 mm coaxial power plug, reverse polarity protection
• PoE: (802.3af, Class 3, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
• 385 `d7 190 `d7 180 mm (15.2" `d7 7.5" `d7 7.1")
• Approx. 1190 g (2.6 lb.)
• Approx. 1700 g (3.7 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions
• Language
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• Approval
• EMC
• Ce-emc (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
• Safety
• Protection

Specifications

• Camera 80M
• 4 K ColorVu Fixed Bullet Network Camera
• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• 24/7 colorful imaging
• 1/1.2" Progressive Scan CMOS
• 3840 `d7 2160
• 1/3 s to 1/100,000 s
• Lens
• Aperture
• F1.0
• Depth Of Field
• 2.8 mm: 4.5 m to ∞
• 4 mm: 7 m to ∞
• 6 mm: 13 m to ∞
• 60 m
• 50 Hz:
• 60 Hz:
• 24 fps (3840 `d7 2160)
• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10, IE 11
• Plug-in free live view : Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• 130 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• `d8105 `d7 289.5 mm (`d84.1" `d7 11.4")
• 33 languages
• FCC (47 CFR Part 15, Subpart B);
• RCM (as/nzs cispr 32: 2015);
• IC (ICES-003: Issue 7)
• UL (UL 62368-1);
• CB (IEC 62368-1:2014+A11)
• Ce-lvd (EN 62368-1:2014/A11:2017)
• Ce-rohs (2011/65/EU);
• Weee (2012/19/EU);
• Reach (Regulation (EC) No 1907/2006)
• IP67 (IEC 60529-2013)
