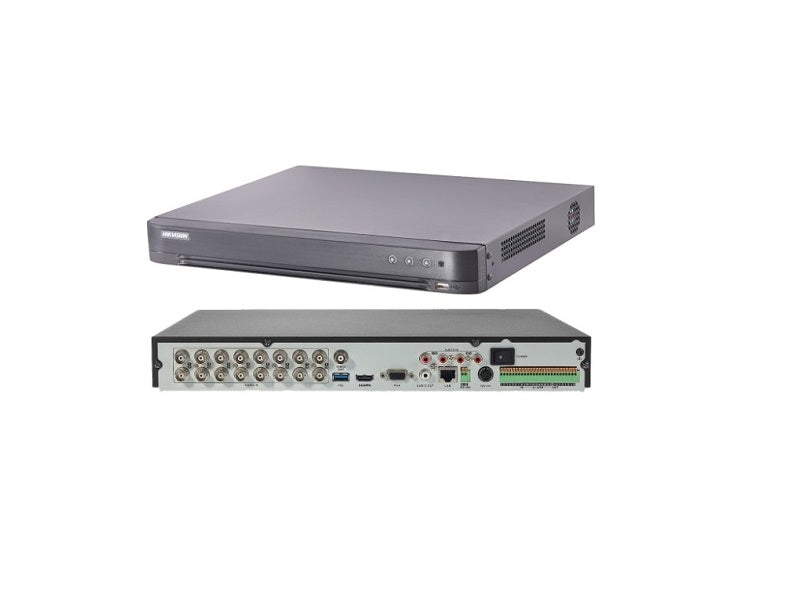

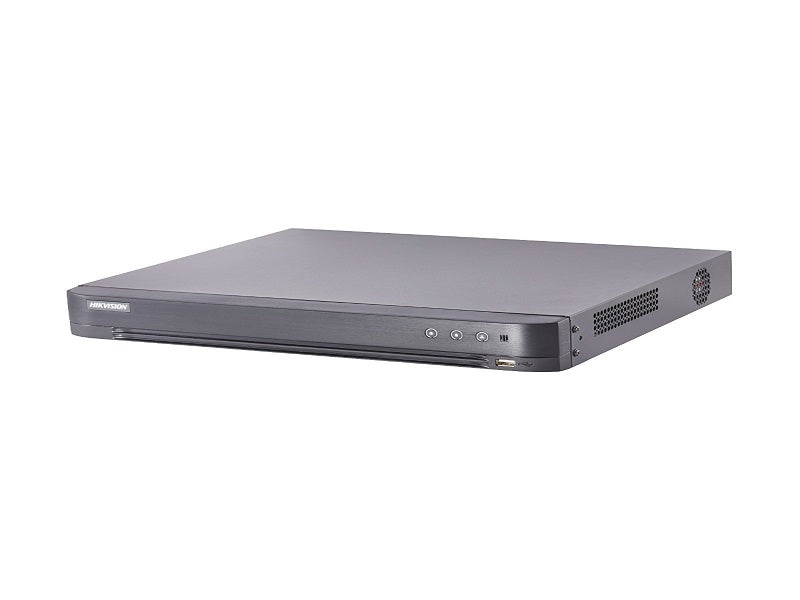

HIKVISION Dvr 16Ch Turbo Hd Up To 4Mp
HIKVISIONon orders over R 500
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras. HDMI output at up to 4K (3840 `d7 2160) resolution for DS-7216HQHI-K2.
Key features
- Long distance transmission over UTP and coaxial cable
- Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 `d9)connection
- Supported camera types: | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
- Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 K'd9), (using the 1st channel of audio input)
- HDMI/VGA Output: | VGA: 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
- HDMI: 1-ch, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
- Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
- Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 k'd9) (using the audio input)
- Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Hard disk driver
- Capacity: | Up to 6 TB capacity for each disk
- Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface
- USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface
- Serial Interface: | 1; standard RS-485 serial interface, half-duplex
- Working Temperature: | -10 °C to +55 °C (14 °F to 131 °F)
- Dimensions: | 380 `d7 320 `d7 48 mm (15.0 `d7 12.6 `d7 1.9 inch)
Specifications
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 3 MP resolution for recording
- 8/16-ch synchronous playback
- Audio Input: | 1-ch
- Video Compression: | H.265+/H.265/H.264+/H.264
- Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
- Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
- Video Input Interface: | BNC (1.0 Vp-p, 75`d9)
- Audio Compression: | G.711u
- Audio Input Interface: | RCA (2.0 Vp-p, 1 k'd9)
- CVBS Output: | 1-ch,BNC(1.0Vp-p,75`d9),resolution:PAL:704x576,NTSC:704x480
- When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate: | Main stream:
- For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
- For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- 3 MP@15fps
- 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bit Rate: | 32 Kbps-6 Mbps
- Stream Type: | Video/Video&Audio
- Audio Output: | 1-ch RCA(Linear, 1k'd9)
- Audio Bit Rate: | 64kbps
- Dual Stream: | Support
- Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
- Synchronous Playback: | 16-ch
- Remote connections: | 128
- Interface Type: | 2 SATA Interfaces
- Power Supply: | 12 VDC
- Consumption: | ≤ 25W(without hard disks)
- Working Humidity: | 10% to 90%
- Weight: | ≤ 2 kg (4.4 lb)
- DS-7216HQHI-K2.pdf
Frequently Bought Together Frequently bought
Product Information
| Categories | Hikvision / Hikvision DVRs / Security & Surveillance |
| Brand | Hikvision |
| Model | DS-7216HQHI-K2 |
| Channels | 16-ch Turbo HD DVR |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Video Input | HDTVI/HDCVI/AHD/CVBS, up to 3 MP |
| HDMI Output | Up to 4K (3840x2160)/30Hz |
| VGA Output | Up to 1920x1080/60Hz |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Audio Compression | G.711u |
| Storage | 2 SATA, up to 6 TB per disk |
| Network Interface | 10/100/1000M self-adaptive Ethernet |
| USB | 1 x USB 2.0 + 1 x USB 3.0 |
| Power Supply | 12 VDC |
| Consumption | ≤ 25W (without HDD) |
| Dimensions | 380 x 320 x 48 mm |
| Weight | ≤ 2 kg |
| Barcode | 6954273641498 |
