HIKVISION Fingerprint Access Control

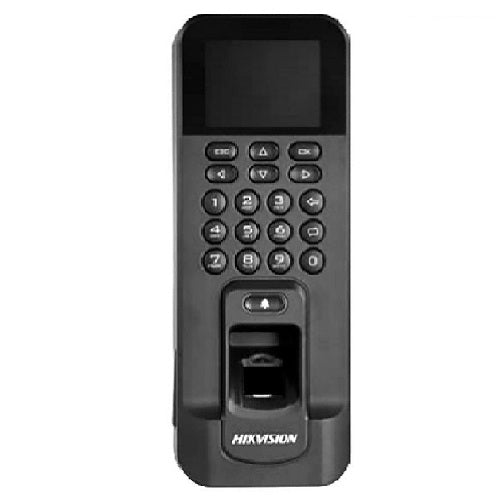

The DS-K1T804 Series of optical IP-based fingerprint access control terminals feature multiple advanced technologies, including fingerprint recognition, Wi-Fi, LCD display screen, and time attendance. The DS-K1T804 Series is designed with a 2.4-inch LCD display screen and is equipped with an optical fingerprint recognition module. Wi-Fi, TCP/IP, RS-485 (for secure door control unit), Wiegand output (w26/w34) and input (Wiegand 26/34).

Key features

• Standalone access control fingerprint terminal
• LCD display screen
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Communication via TCP/TP and Wi-Fi
• EHome for public network communication
• Alarm input and output interface
• Multiple time attendance status
• Up to 3,000 valid cards; up to 100,000 records
• Door switch button x 1, door magnetic sensor x 1, tamper-resistant switch x 1, and alarm input x1
• 14`b0 to 131`b0 F (-10`b0 to 55`b0 C)

Specifications

• Terminal ds-k1t804bmf
• Built-in card reader for Mifare1 card
• RS-485, wiegand interface
• External Card Reader: Standard Wiegand 26/34
• 10% to 90% (non-condensing)
