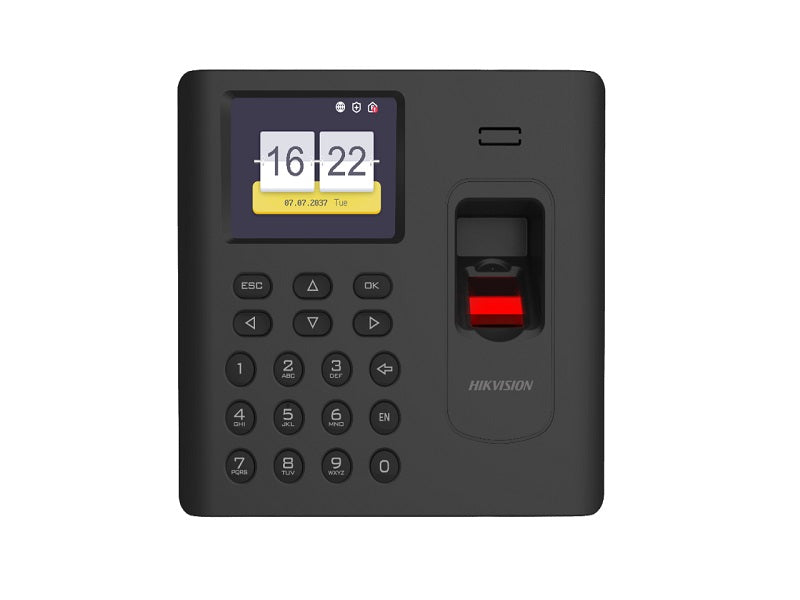

HIKVISION Fingerprint Attendance Termina

The HIKVISION DS-K1A802AMF-B K1A802 Pro Series Fingerprint Time Attendance Terminal is an advanced, user-friendly device designed to streamline time and attendance management. Equipped with a built-in Mifare card reading module, this terminal supports multiple authentication methods and offers robust storage capabilities, making it an ideal solution for modern workplaces. Multi-Authentication: Supports fingerprints, Mifare cards, and password authentication.

Key features

• Large Capacity: Stores up to 3,000 fingerprints, 3,000 cards, and 100,000 events.
• Connectivity: Communication via TCP/IP and Wi-Fi for flexible network integration.
• Backup Power: Built-in battery support ensures continuous operation during power outages.
• Protocols: Compatible with ISUP5.0 and ISAPI for seamless integration with existing security systems.
• Screen Size: 2.4-inch LCD-TFT display for clear visual feedback.
• Audio Output: Equipped with a loudspeaker and buzzer for audible notifications.
• Wired Network: TCP/IP, 10/100Mbps, self-adaptive for reliable connectivity.
• Wi-Fi: Supported for wireless network connections.
• USB Interface: One USB port for data transfer and configuration.
• Card Capacity: Stores up to 3,000 Mifare cards.
• Fingerprint Capacity: Accommodates up to 3,000 fingerprints.
• Event Capacity: Logs up to 100,000 events.
• Authentication
• Card Reading Distance: 0 to 5 cm for quick and easy access.
• Card Reading Duration: Less than 1 second for fast authentication.
• Fingerprint Module: Optical fingerprint module for accurate recognition.
• modes.
• Fingerprint Recognition Duration: Less than 1 second for quick identification.
• Indicators: Power/status indicators in red and green.
• Battery Support: Ensures operation during power failures.
• Power Supply: 5 VDC/1 A.
• Working Temperature: Operates in temperatures from -10 `b0C to +55 `b0C (14 `b0F to +131 `b0F).
• Working Humidity: 10% to 90% non-condensing.
• Dimensions: 140 mm `d7 155 mm `d7 30 mm (5.51" `d7 6.01" `d7 1.18").
• Application Environment: Suitable for indoor use.
• Installation: Supports surface mounting and desk stand setups.
• Benefits
• Enhanced Security: Multi-authentication methods ensure robust security for time and attendance tracking.
• User-Friendly: Easy installation and intuitive interface for smooth operation.
• Reliable Performance: Continuous operation with backup battery support and fast, accurate authentication.
• Flexible Connectivity: Seamless integration with existing network infrastructure through wired and wireless options.

Specifications

• Ds-k1a802amf-b
• Capacity
• Card Type: M1 card.
• Fingerprint Comparing Mode: Supports both 1:1 and 1
• Color: Black.
