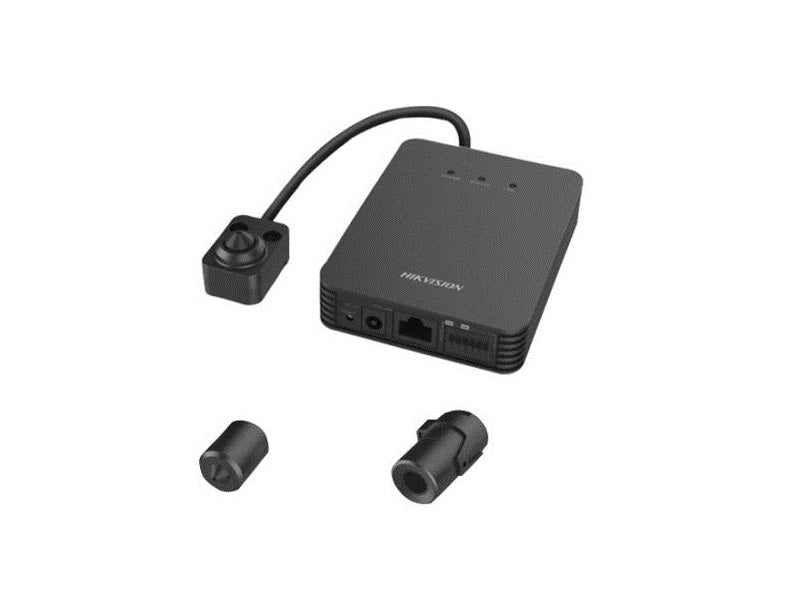

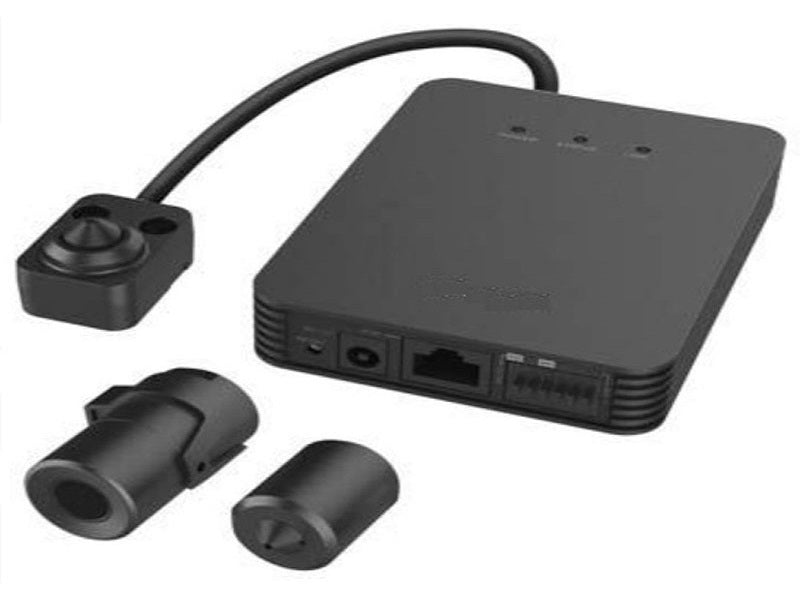

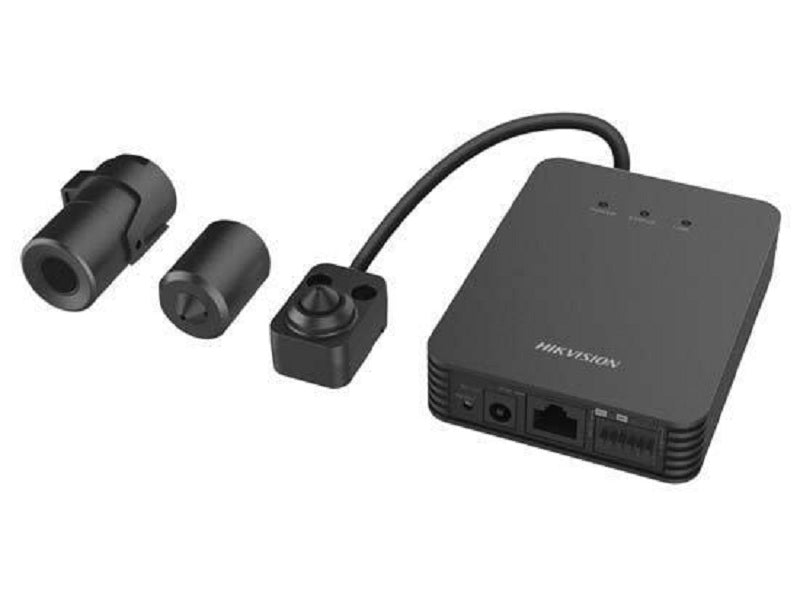

HIKVISION Hd Covert Network Camera

DS-2CD6424FWD-XX is the covert camera with 4 optional lens shapes. Key features including: Cylindrical, block-shaped, fixed focal and ball-shaped of lens are optional; 2m or 8m (between lens and camera body) cable is optional for flexible installation; DS-2CD6424FWD-XX 1080p HD resolution for real-time output; Rotate mode, BLC and True WDR are supported for different environment. Built-in Micro SD / SDHC / SDXC card slot,up to 128GB.

Key features

• Hikvision ds-2cd6424fwd-30 2MP indoor pinhole covert IP security camera - tube lens
• PoE supported
• Support HLC, Defog
• Mjpeg
• Pinhole
• Covert
• Onvif
• SD Card Storage Support
• No
• Yes
• Min. Illumination: | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR'a3`bb0.028 Lux @(F2.0,AGC ON), 0 Lux with IR
• L30/30: 2.8mm/4mm/6mm@ F2.0, angle of view: 115`a1`e3(2.8mm), 91`a1`e3(4mm),60`a1`e3(6mm)
• Compression Standard
• H.264 code profile: | Baseline Profile / Main Profile / High Profile
• Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
• Image
• Frame Rate: | 50Hz: 25fps (1920`a1`c11080, 1280 `a1`c1 960, 1280 `a1`c1 720)
• 60Hz: 30fps (1920`a1`c11080, 1280 `a1`c1 960, 1280 `a1`c1 720)
• Third Stream: | Only single channel camera supports third stream, which is independent with main stream, up to 50Hz: 10fps (1280 `a1`c1 960); 60Hz: 10fps (1280 `a1`c1 960)
• Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
• Picture Overlay: | Support 128 `a1`c1 128 size BMP with 24-bit depth image overlay, zone optional
• Day/Night Switch: | Auto / Timing / Alarm trigger
• Alarm Trigger: | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
• Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General Function: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
• Audio Input: | 1-ch 3.5 mm audio interface, MIC IN/LINE IN
• Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
• On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Operating Conditions: | -30 `a1`e3C ~ 60 `a1`e3C (-22 `a1`e3F ~ 140 `a1`e3F)

Specifications

• Key Features Of Hikvision DS-2CD6424FWD-30
• 2MP
• Tube Sensor Unit: 2.8mm Fixed Lens
• 1/2.7″ Progressive Scan CMOS
• Up to 1920`d71080@30fps for real-time output
• True WDR, up to 120dB
• H.264+, H.264, mjpeg...
• Manufacturer: Hikvision
• Product Type: Cameras
• Warranty: 3-year Manufacturer Warranty
• Color: Black
• Environmental: Indoor
• H.264
• 109
• Lens Size: 2.8mm
• Lens Type : Fixed Lens
• Max. FPS and Resolution: 30fps at 1920 x 1080
• Resolution: 2MP
• Sensor Size: 1/2.7"
• Sensor Type: CMOS
• Technology: Network (IP)
• True WDR (120dB)
• Image Sensor: | 1/2.7” Progressive Scan CMOS
• Signal System: | PAL/NTSC
• Shutter time: | 1s ~ 1/100,000s
• Lens: | -L10/L20/10/20: 3.7mm @F2.5, angle of view: 65`a1`e3
• Lens Mount: | M12
• Lens Cable Length: | Optional 2m or 8m
• Day& Night: | Electronic
• Wide Dynamic Range: | 120 dB
• Digital noise reduction: | 3D DNR
• Video Compression: | H.264/MJPEG
• Video bit rate: | 32Kbps~16Mbps
• Audio Compression: | G.711/G.722.1/G.726/MP2L2
• Max. Image Resolution: | 1920 x 1080
• Image Enhancement: | BLC/3D DNR/ROI/Defog
• BLC: | Support
• HLC: | support
• ROI: | support
• 3D DNR: | support
• Network Storage: | NAS (Support NFS,SMB/CIFS), ANR
• System Compatibility: | ONVIF (Profile S, Profile G),ISAPI
• Audio Output: | 1-ch 3.5mm audio interface
• Alarm Input: | 1
• Alarm Output: | 1
• Reset Button: | Yes
• Humidity 95% or less (non-condensing)
• Power Supply: | 12 VDC `a1`c0 10%, PoE (802.3af)
• Power Consumption: | Max. 6.5 W
• Dimensions: | 78`a1`c1105`a1`c132 mm (3.07” `a1`c1 4.13” `a1`c1 1.26”)
• Weight: | Main body: 210g
• Cylindrical lens: 113g(2m), 233g(8m)
• L-shaped lens: 99g(2m), 220g(8m)
• Tube lens: 129g(2m), 242g(8m)
• Package + accessories: 224g
